PE4250 Series
Manufacturer: pSemi
Beta
⌘K

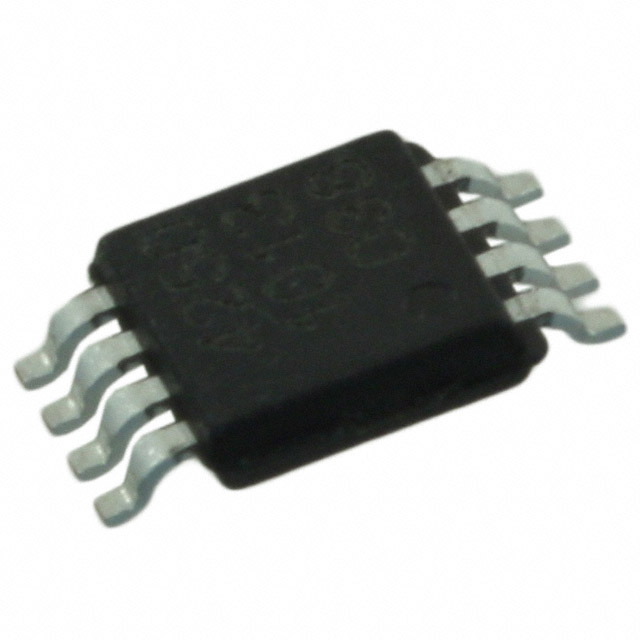

IC RF SWITCH SPDT 3GHZ 8MSOP
| Part | Circuit | P1dB | Mounting Type | Topology | Test Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Impedance | RF Type | Insertion Loss | Supplier Device Package | IIP3 | Frequency Range [Max] | Frequency Range [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Isolation | Features | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 pSemi | SPDT | 30.5 dBm | Surface Mount | Reflective | 3 GHz | 85 °C | -40 C | 50 Ohms | General Purpose | 0.75 dB | 8-MSOP | 59 dBm | 3 GHz | 10 MHz | 3.6 V 5.5 V | 3 V 4.5 V | 40 dB | DC Blocked Single/Dual Line Control | 8-MSOP 8-TSSOP | 0.118 in 3 mm Width |
