MB910 Series
Manufacturer: Deca
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
PCB TERMINAL BLOCK WITH STANDOFF
| Part | Torque - Screw | Clamp Material | Clamp Plating | Screw Thread | Screw Plating | Screw Material | Contact Material | Plating | Housing Material | Operating Temperature (Min) | Operating Temperature (Max) | Wire Termination | Pitch | Features | Mating Orientation | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Number of Levels | Color | Positions Per Level | Mounting Type | Current | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

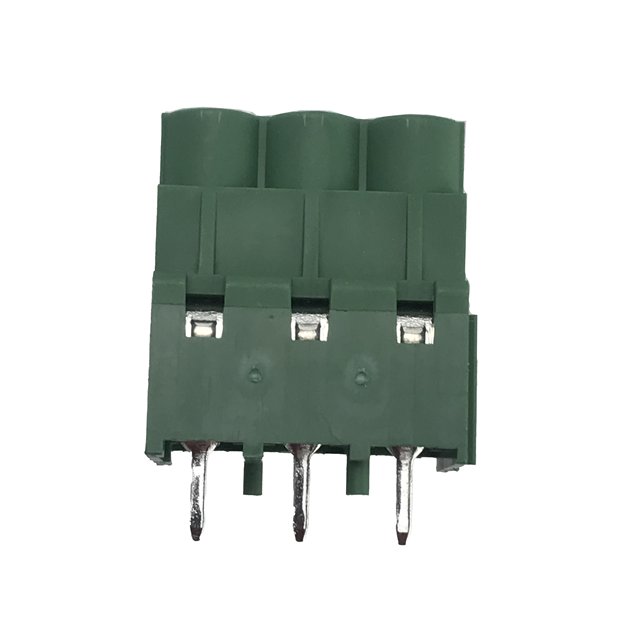

 Deca | 1 Nm | Steel | Nickel Plated | M3 | Zinc Plated | Steel | Brass | Tin Plated | Nylon 6/6 PA66 Polyamide | -40 °C | 105 °C | Rising Cage Clamp Screw | 0.25 in | Interlocking (Side) | Horizontal with Board | 24 AWG | 10 AWG | 1 | Green | 3 | Through Hole | 30 A | 300 V |

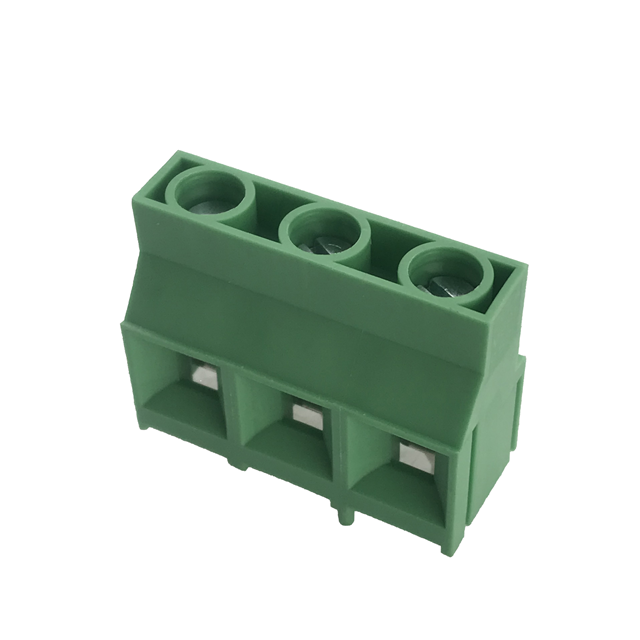

 Deca | 1 Nm | Steel | Nickel Plated | M3 | Nickel Plated | Steel | Brass | Tin Plated | Nylon 6/6 PA66 Polyamide | -40 °C | 105 °C | Rising Cage Clamp Screw | 0.375 in | Interlocking (Side) | Horizontal with Board | 24 AWG | 10 AWG | 1 | Green | 3 | Through Hole | 30 A | 600 V |
