HMC340 Series

DBL-BAL Mixer (Dual Channel) SMT, 1.7 - 4.5 GHz

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

DBL-BAL Mixer (Dual Channel) SMT, 1.7 - 4.5 GHz

Part	Supplier Device Package	Noise Figure	Package / Case	Frequency [Max]	Frequency [Min]	Number of Mixers	Secondary Attributes	Mounting Type	RF Type	For Use With/Related Products	Supplied Contents	Utilized IC / Part	Contents	Type
Analog Devices Inc./Maxim Integrated HMC340ALP5E	32-QFN (5x5)	8 dB	32-VFQFN Exposed Pad	4.5 GHz	1.7 GHz	2	Up/Down Converter	Surface Mount	General Purpose
Analog Devices Inc./Maxim Integrated HMC340ALP5ETR	32-QFN (5x5)	8 dB	32-VFQFN Exposed Pad	4.5 GHz	1.7 GHz	2		Surface Mount

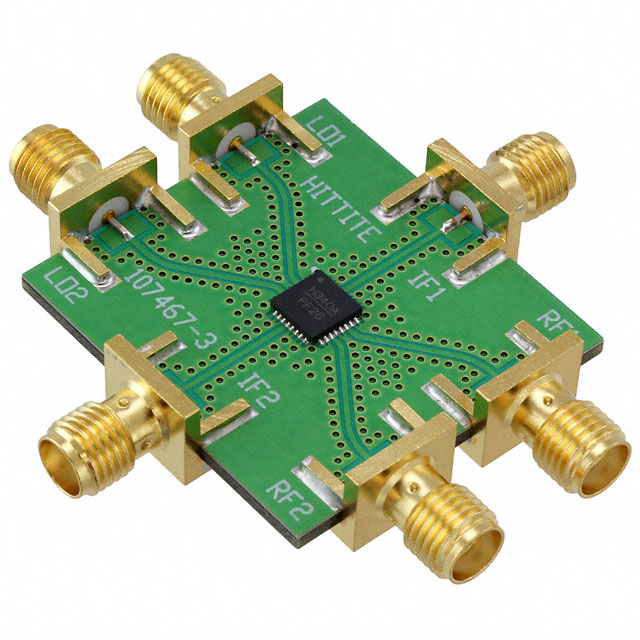

Analog Devices Inc./Maxim Integrated 107482-HMC340ALP5				4.5 GHz	1.7 GHz					HMC340ALP5	Board(s)	HMC340ALP5	Board(s)	Mixer
Analog Devices Inc./Maxim Integrated HMC340ALP5	32-QFN (5x5)	8 dB	32-VFQFN Exposed Pad	4.5 GHz	1.7 GHz	2		Surface Mount

Catalog

DBL-BAL Mixer (Dual Channel) SMT, 1.7 - 4.5 GHz

Description

The HMC340ALP5(E) is a double-balanced dual mixer covering 1.7 - 4.5 GHz RF/LO range. This passive MMIC mixer is constructed of GaAs Schottky diodes and on-chip baluns. The device can be used as an upconverter, downconverter, biphase (de)modulator, or phase comparator. The mixer symmetry of the HMC340ALP5 & HMC340ALP5E make it an ideal candidate for single sideband or image rejection applications. The consistent MMIC performance will improve system operation and assure regulatory compliance. A low cost, leadless 5x5 mm QFN surface mount package (LP5) houses the dual MMIC mixer IC.ApplicationsWireless InfrastructureWireless Local LoopImage Reject MixerI/Q ModulatorSSB Modulator
