M5134 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
TRANSDUCER 0.5-4.5VDC 500PSI
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Port Style | Accuracy | Package / Case | Output [Max] | Output [Min] | Operating Pressure | Operating Pressure | Output Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Pressure Type | Features | Maximum Pressure | Maximum Pressure | Port Size | Port Size | Port Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

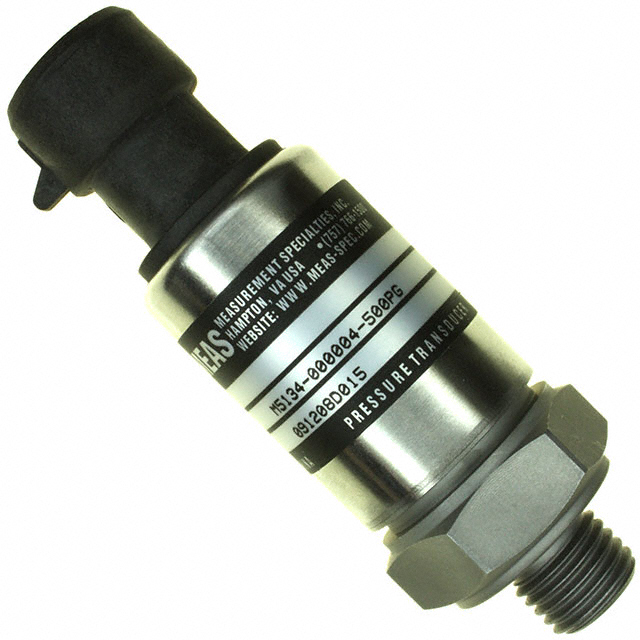

 TE Connectivity AMP Connectors | 125 °C | -40 C | Industrial Automation | Threaded | 1 % | Cylinder | 4.5 V | 0.5 V | 500 PSI | 3447.38 kPa | Analog Voltage | 4.75 V | 5.25 V | Vented Gauge | Temperature Compensated | 6894.76 kPa | 1000 PSI | 0.4375 in | Male | 11.11 mm |
 TE Connectivity AMP Connectors | 125 °C | -40 C | Industrial Automation | Threaded | 1 % | Cylinder | 4.5 V | 0.5 V | 50 PSI | 344.74 kPa | Analog Voltage | Vented Gauge | Temperature Compensated | 689.48 kPa | 100 PSI | 0.4375 in | Male | 11.11 mm | ||
 TE Connectivity AMP Connectors | 125 °C | -40 C | Industrial Automation | Threaded | 1 % | Cylinder | 4.5 V | 0.5 V | 25 PSI | 172.37 kPa | Analog Voltage | 4.75 V | 5.25 V | Vented Gauge | Temperature Compensated | 344.74 kPa | 50 PSI | 0.4375 in | Male | 11.11 mm |

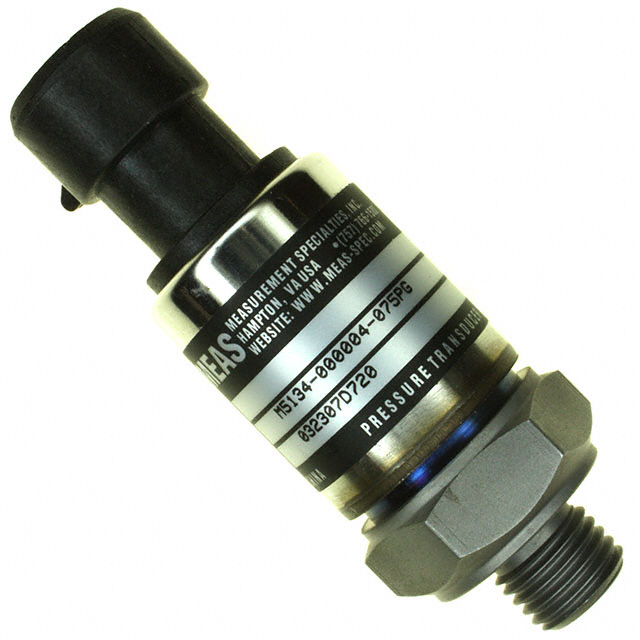

 TE Connectivity AMP Connectors | 125 °C | -40 C | Industrial Automation | Threaded | 1 % | Cylinder | 4.5 V | 0.5 V | 75 PSI | 517.11 kPa | Analog Voltage | 4.75 V | 5.25 V | Vented Gauge | Temperature Compensated | 1034.21 kPa | 150 PSI | 0.4375 in | Male | 11.11 mm |

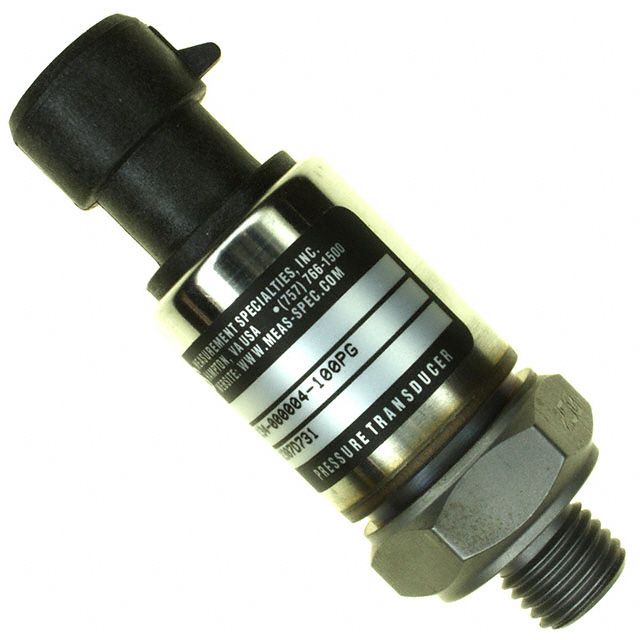

 TE Connectivity AMP Connectors | 125 °C | -40 C | Industrial Automation | Threaded | 1 % | Cylinder | 4.5 V | 0.5 V | 100 PSI | 689.48 kPa | Analog Voltage | Vented Gauge | Temperature Compensated | 1378.95 kPa | 200 PSI | 0.4375 in | Male | 11.11 mm | ||

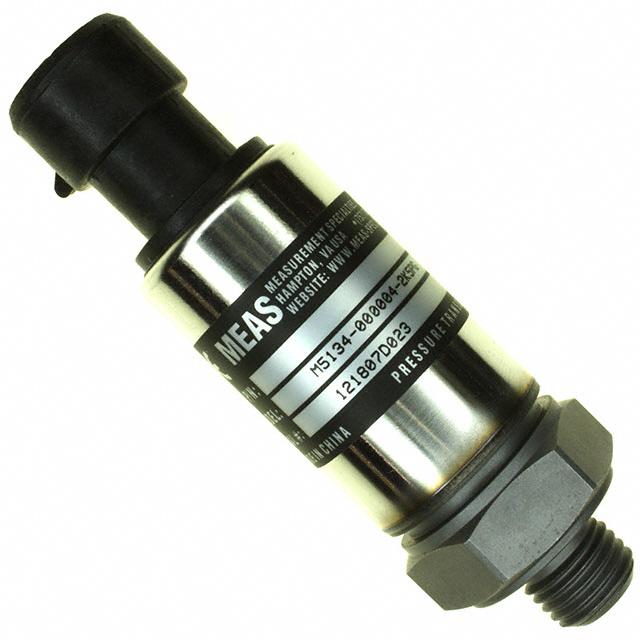

 TE Connectivity AMP Connectors | 125 °C | -40 C | Industrial Automation | Threaded | 1 % | Cylinder | 4.5 V | 0.5 V | 2500 PSI | 17236.89 kPa | Analog Voltage | 4.75 V | 5.25 V | Vented Gauge | Temperature Compensated | 34473.79 kPa | 5000 PSI | 0.4375 in | Male | 11.11 mm |

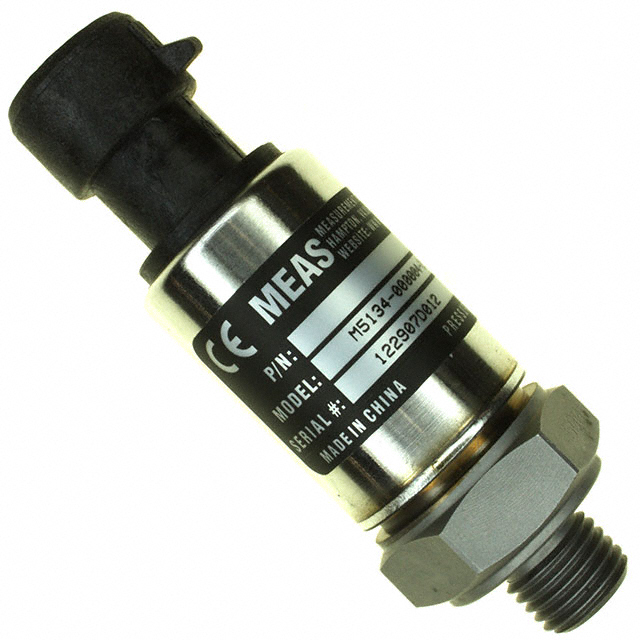

 TE Connectivity AMP Connectors | 125 °C | -40 C | Industrial Automation | Threaded | 1 % | Cylinder | 4.5 V | 0.5 V | 250 PSI | 1723.69 kPa | Analog Voltage | 4.75 V | 5.25 V | Vented Gauge | Temperature Compensated | 3447.38 kPa | 500 PSI | 0.4375 in | Male | 11.11 mm |
