45212 Series

Catalog

CONN, R/A HDR, 12POS, 2ROW, 1.27MM, TH ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Insulation Material	Fastening Type	Pitch - Mating	Pitch - Mating	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Finish - Post	Mounting Type	Contact Material	Number of Positions	Contact Finish - Mating	Insulation Height	Insulation Height	Shrouding	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Number of Positions Loaded	Material Flammability Rating	Style	Termination	Mated Stacking Heights
3M Electronic Specialty 45212-520230	200 µin	5.08 µm	2.4 mm	0.094 in	Liquid Crystal Polymer (LCP)	Latch Lock/Eject Hooks	1.27 mm	0.05 in	Header	0.05 in	1.27 mm	Male Pin	Tin	Right Angle Through Hole	Copper Alloy	12	Gold	0.21 in	5.33 mm	Shrouded - 4 Wall	125 VDC	-65 ░C	125 °C	Square	2	0.76 Ám	30 Áin	Keying Slot	All	UL94 V-0	Board to Cable/Wire	Solder
3M Electronic Specialty 45212-220230	200 µin	5.08 µm			Liquid Crystal Polymer (LCP)	Latch Lock/Eject Hooks	1.27 mm	0.05 in	Header	0.05 in	1.27 mm	Male Pin	Tin	Surface Mount	Copper Alloy	12	Gold	0.222 in	5.65 mm	Shrouded - 4 Wall	125 VDC	-65 ░C	125 °C	Square	2	0.76 Ám	30 Áin	Keying Slot Pick and Place	All	UL94 V-0	Board to Cable/Wire	Solder	5.84 mm 6.6 mm 7.21 mm 8.13 mm

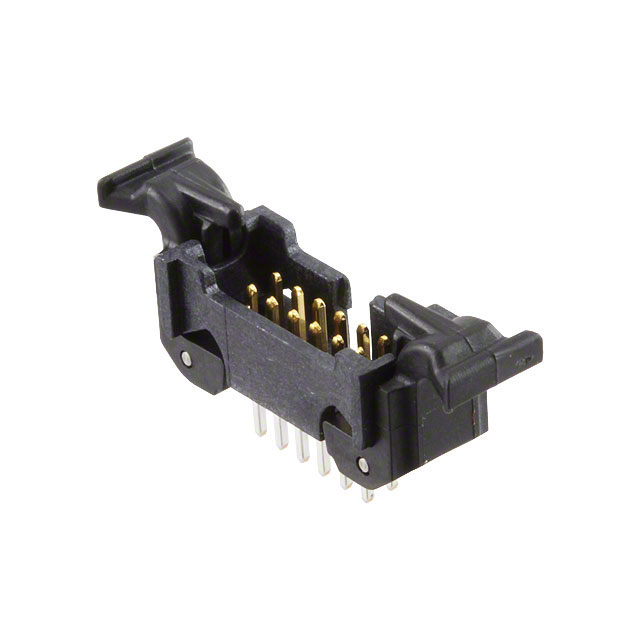

3M Electronic Specialty 45212-620230	200 µin	5.08 µm	2.4 mm	0.094 in	Liquid Crystal Polymer (LCP)	Latch Lock/Eject Hooks	1.27 mm	0.05 in	Header	0.05 in	1.27 mm	Male Pin	Tin	Through Hole	Copper Alloy	12	Gold	0.222 in	5.65 mm	Shrouded - 4 Wall	125 VDC	-65 ░C	125 °C	Square	2	0.76 Ám	30 Áin	Keying Slot	All	UL94 V-0	Board to Cable/Wire	Solder	5.84 mm 6.6 mm 7.21 mm 8.13 mm
