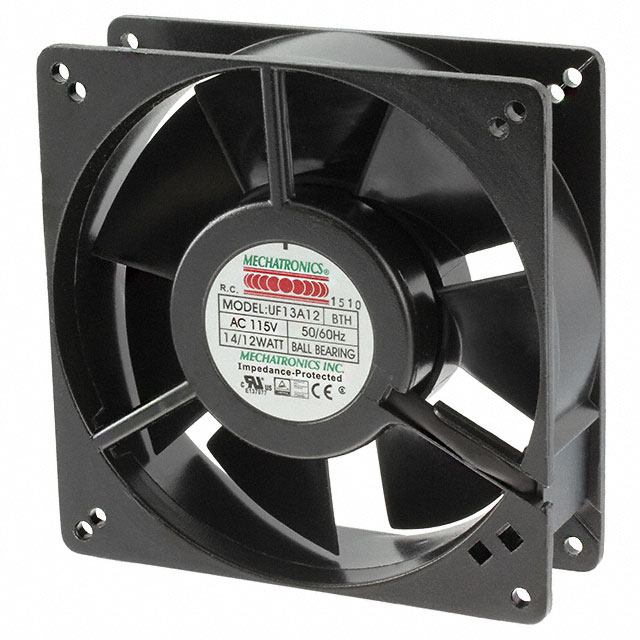

UF13A Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K
FAN AXIAL 127X38MM 115VAC
| Part | Material - Blade | Material - Frame | Width [y] | Static Pressure | Static Pressure | Voltage - Rated | Termination | RPM | Weight [custom] | Weight [custom] | Noise | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Air Flow | Air Flow | Fan Type | Bearing Type | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | Aluminum | 38 mm | 0.14 in H2O | 34.9 Pa | 115 VAC | 2 | 3000 RPM | 544.3 g | 1.2 lbs | 50 dB(A) | 5 in | 5 " | CE cUL TUV UL | 120 CFM | 3.36 m³/min | Tubeaxial | Ball | 12 W | -40 C | 70 °C | 70 °C | -40 °C | |||
Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | Aluminum | 38 mm | 0.14 in H2O | 34.9 Pa | 115 VAC | 3000 RPM | 544.3 g | 1.2 lbs | 50 dB(A) | 5 in | 5 " | CE cUL TUV UL | 120 CFM | 3.36 m³/min | Tubeaxial | Ball | 12 W | -40 C | 70 °C | 70 °C | -40 °C | 2 Wire Leads | |||
Mechatronics Fan Group | Polybutylene Terephthalate (PBT) | Aluminum | 38 mm | 0.14 in H2O | 34.9 Pa | 115 VAC | 3000 RPM | 544.3 g | 1.2 lbs | 50 dB(A) | 5 in | 5 " | CE cUL TUV UL | 120 CFM | 3.36 m³/min | Tubeaxial | Ball | 12 W | -40 C | 70 °C | 70 °C | -40 °C | 2 Wire Leads | IP55 - Dust Protected Water Resistant | Salt Fog Rated |
