4282-3 Series

Manufacturer: CNC Tech

Catalog

CONN PLUG HSG 22POS 4.20MM

Part	Note	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insulation Material	Contact Type	Contact Termination	Color	Number of Rows [custom]	Pitch	Pitch	Number of Positions	Mounting Type	Row Spacing	Row Spacing
CNC Tech 4282-3-22-D	Contacts Not Included	Plug	-40 C	105 ░C	Locking Ramp	Nylon 6/6 Polyamide (PA66)	Male Pin	Crimp	White	2	0.165 in	4.2 mm	22	Free Hanging (In-Line)	0.165 in	4.2 mm

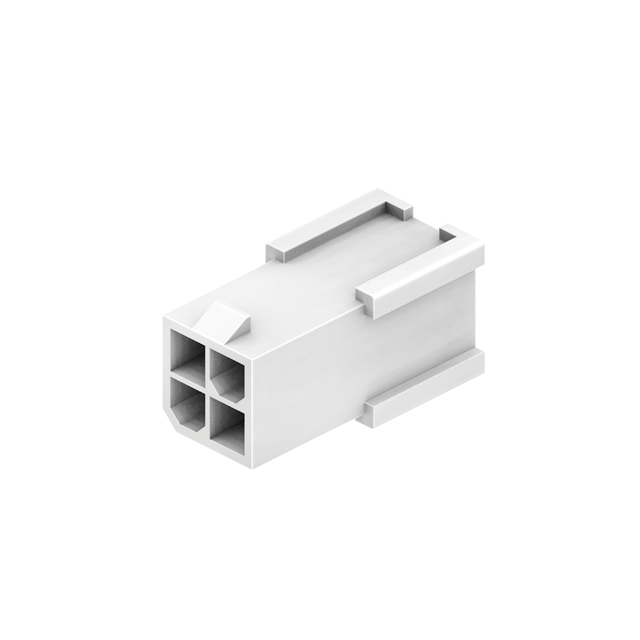

CNC Tech 4282-3-04-D	Contacts Not Included	Plug	-40 C	105 ░C	Locking Ramp	Nylon 6/6 Polyamide (PA66)	Male Pin	Crimp	White	2	0.165 in	4.2 mm	4	Free Hanging (In-Line)	0.165 in	4.2 mm

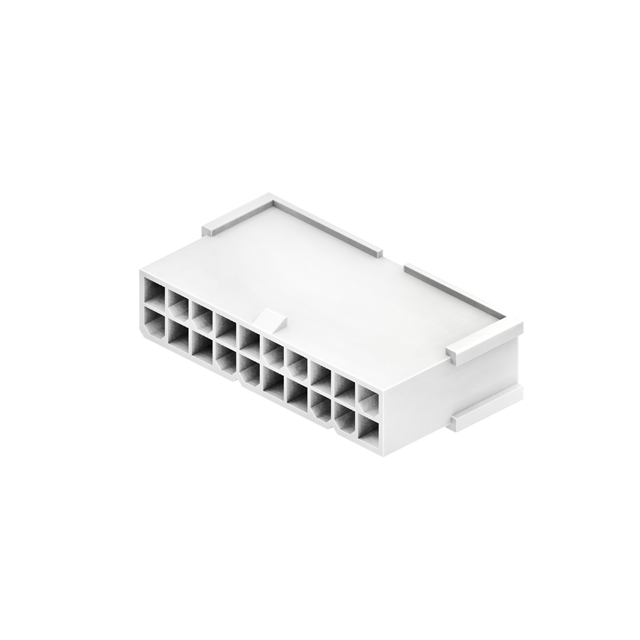

CNC Tech 4282-3-20-D	Contacts Not Included	Plug	-40 C	105 ░C	Locking Ramp	Nylon 6/6 Polyamide (PA66)	Male Pin	Crimp	White	2	0.165 in	4.2 mm	20	Free Hanging (In-Line)	0.165 in	4.2 mm

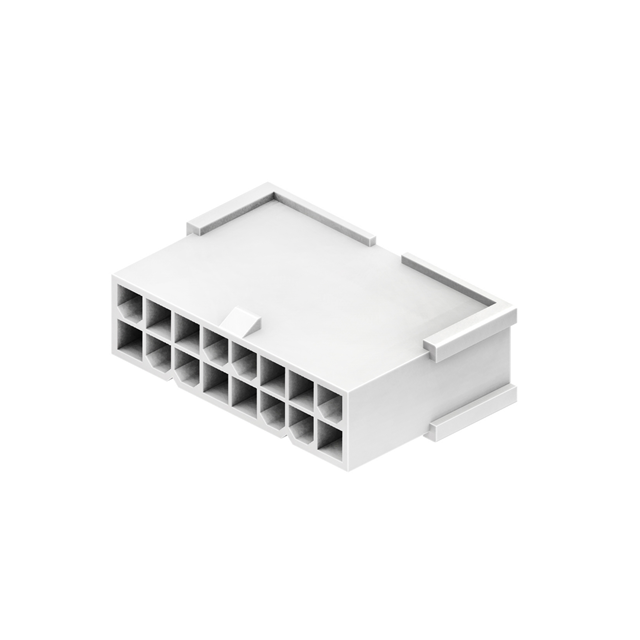

CNC Tech 4282-3-16-D	Contacts Not Included	Plug	-40 C	105 ░C	Locking Ramp	Nylon 6/6 Polyamide (PA66)	Male Pin	Crimp	White	2	0.165 in	4.2 mm	16	Free Hanging (In-Line)	0.165 in	4.2 mm

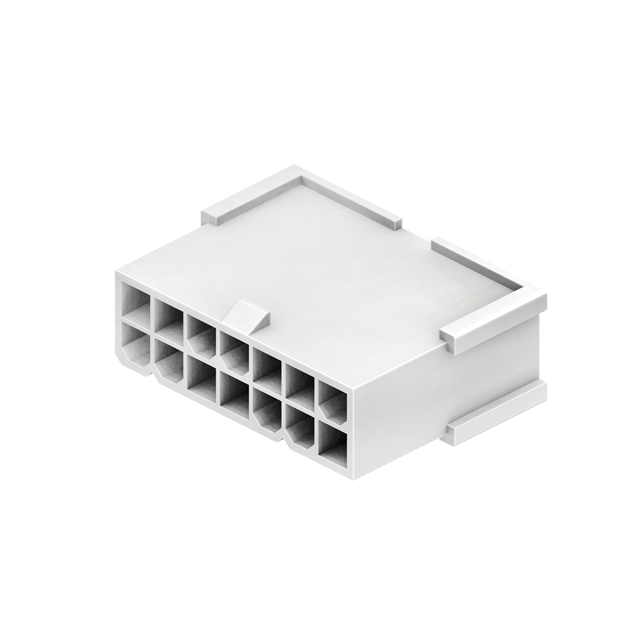

CNC Tech 4282-3-14-D	Contacts Not Included	Plug	-40 C	105 ░C	Locking Ramp	Nylon 6/6 Polyamide (PA66)	Male Pin	Crimp	White	2	0.165 in	4.2 mm	14	Free Hanging (In-Line)	0.165 in	4.2 mm

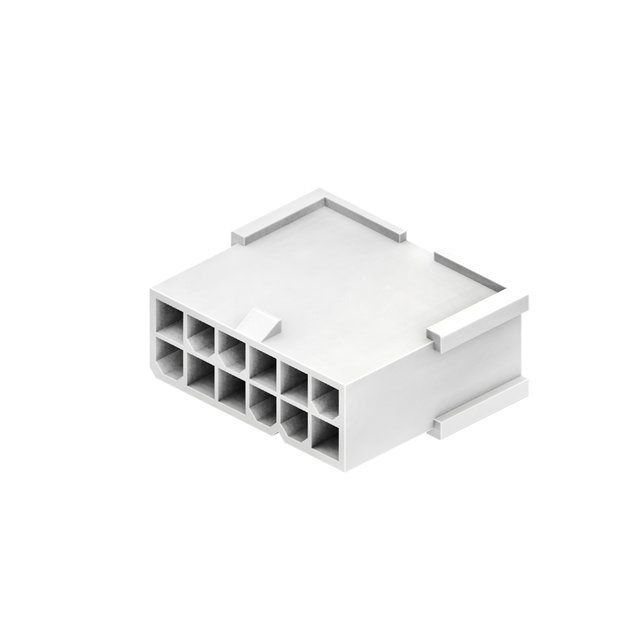

CNC Tech 4282-3-12-D	Contacts Not Included	Plug	-40 C	105 ░C	Locking Ramp	Nylon 6/6 Polyamide (PA66)	Male Pin	Crimp	White	2	0.165 in	4.2 mm	12	Free Hanging (In-Line)	0.165 in	4.2 mm

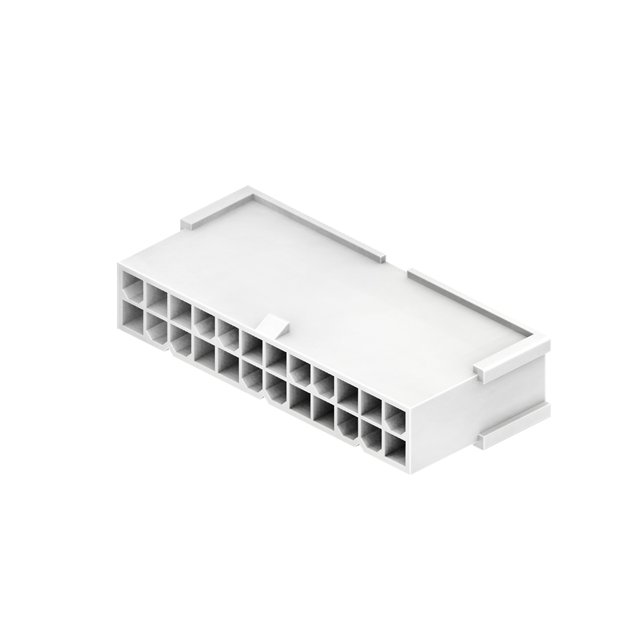

CNC Tech 4282-3-24-D	Contacts Not Included	Plug	-40 C	105 ░C	Locking Ramp	Nylon 6/6 Polyamide (PA66)	Male Pin	Crimp	White	2	0.165 in	4.2 mm	24	Free Hanging (In-Line)	0.165 in	4.2 mm
CNC Tech 4282-3-10-D	Contacts Not Included	Plug	-40 C	105 ░C	Locking Ramp	Nylon 6/6 Polyamide (PA66)	Male Pin	Crimp	White	2	0.165 in	4.2 mm	10	Free Hanging (In-Line)	0.165 in	4.2 mm
CNC Tech 4282-3-08-D	Contacts Not Included	Plug	-40 C	105 ░C	Locking Ramp	Nylon 6/6 Polyamide (PA66)	Male Pin	Crimp	White	2	0.165 in	4.2 mm	8	Free Hanging (In-Line)	0.165 in	4.2 mm
CNC Tech 4282-3-02-D	Contacts Not Included	Plug	-40 C	105 ░C	Locking Ramp	Nylon 6/6 Polyamide (PA66)	Male Pin	Crimp	White	2	0.165 in	4.2 mm	2	Free Hanging (In-Line)	0.165 in	4.2 mm
