IR2114 Series

Manufacturer: INFINEON

Catalog

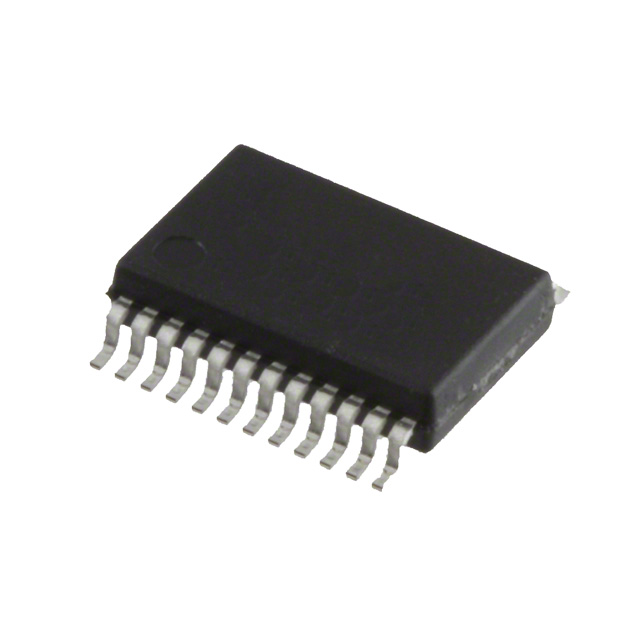

THE IR2114SS IS A 600 V HALF-BRIDGE GATE DRIVER IC WITH DESAT AND SOFT OVER-CURRENT SHUTDOWN (24 LEAD SSOP PACKAGE)

Part	Gate Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Rise / Fall Time (Typ)	Channel Type	Package / Case	Package / Case	Package / Case	Driven Configuration	Logic Voltage - VIL, VIH	Mounting Type	Input Type	Number of Drivers	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	High Side Voltage - Max (Bootstrap) [Max]
INFINEON IR2114SSPBF	IGBT	20 V	11.5 V	2 A	3 A	7 ns 24 ns	Independent	24-SSOP	5.3 mm	0.209 in	Half-Bridge	0.8 V 2 V	Surface Mount	Non-Inverting	2	-40 °C	150 °C	24-SSOP	600 V
INFINEON IR2114SSTRPBF	IGBT	20 V	11.5 V	2 A	3 A	7 ns 24 ns	Independent	24-SSOP	5.3 mm	0.209 in	Half-Bridge	0.8 V 2 V	Surface Mount	Non-Inverting	2	-40 °C	150 °C	24-SSOP	600 V
INFINEON IR2114SSTRPBF	IGBT	20 V	11.5 V	2 A	3 A	7 ns 24 ns	Independent	24-SSOP	5.3 mm	0.209 in	Half-Bridge	0.8 V 2 V	Surface Mount	Non-Inverting	2	-40 °C	150 °C	24-SSOP	600 V
