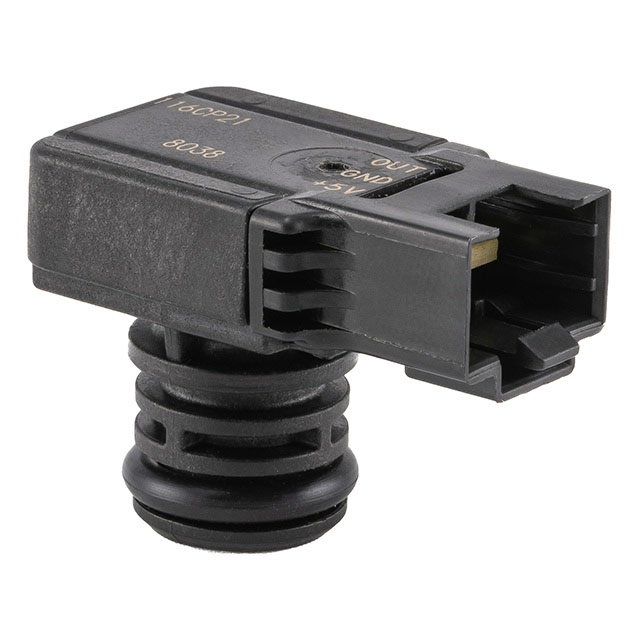

116CP21 Series

Catalog

SENSOR 150PSIS 0.59" 4.5V

Part	Port Style	Output Type	Applications	Pressure Type	Accuracy	Operating Pressure	Operating Pressure	Port Size	Port Size	Port Size	Output [Max]	Output [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Maximum Pressure [Max]	Maximum Pressure [Max]	Package / Case	Termination Style	Maximum Pressure	Maximum Pressure
Sensata-Crydom 116CP21-M10S3-50	Barbed	Analog Voltage	Board Mount	Sealed Gauge	1.5 %	1034.21 kPa	150 PSI	Male O-Ring	15 mm	0.59 "	4.5 V	0.5 V	90 °C	2 °C	300 PSI	2068.43 kPa	Module	Connector
Sensata-Crydom 116CP21-M04S2-50	Barbed	Analog Voltage	Board Mount	Sealed Gauge	1.5 %	413.69 kPa	60 PSI	Male O-Ring	15 mm	0.59 "	3.5 V	0.5 V	90 °C	2 °C			Module	Connector	120 PSI	827.37 kPa
Sensata-Crydom 116CP21-M16S3-50	Barbed	Analog Voltage	Board Mount	Sealed Gauge	1.5 %	1585.79 kPa	230 PSI	Male O-Ring	15 mm	0.59 "	4.5 V	0.5 V	90 °C	2 °C	460 PSI		Module	Connector		3171.59 kPa
