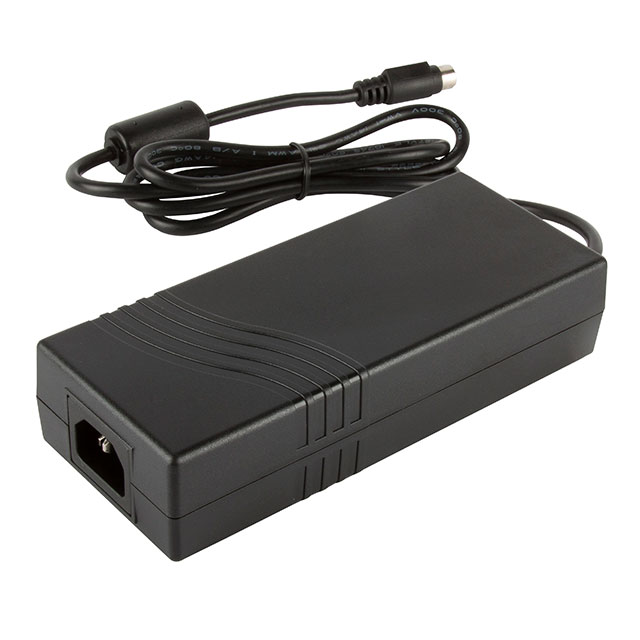

VES120 Series

Manufacturer: XP Power

Catalog

AC/DC POWER SUPPLY, 1 OUTPUT, 120 W, 12 V, 10 A

Part	Weight [custom]	Weight [custom]	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Input Type	Output Connector	Region Utilized	Cord Length	Cord Length	Approval Agency	Standard Number	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	No Load Power Consumption	Operating Temperature [Max]	Voltage - Output	Input Connector	Efficiency	Current - Output (Max) [Max]	Applications	Form	Current - Output (Max)
XP Power VES120PS12	1.3 lbs	589.7 g	264 VAC	90 VAC	120 W	Cord (Sold Separately)	Power DIN 4 Pin	International	1.2 m	47.2 in	CB CCC GS UL	62368-1	168 mm	6.61 in	2.8 in	37.2 mm	71 mm	1.48 in	150 mW	60 °C	12 V	IEC 320-C14	CoC Tier 2 Level VI	10 A	ITE (Commercial)	Desktop (Class I)
XP Power VES120PS19	1.3 lbs	589.7 g	264 VAC	90 VAC	120 W	Cord (Sold Separately)	Power DIN 4 Pin	International	1.2 m	47.2 in	CB CCC GS UL	62368-1	168 mm	6.61 in	2.8 in	37.2 mm	71 mm	1.48 in	150 mW	60 °C	19 V	IEC 320-C14	CoC Tier 2 Level VI	6.32 A	ITE (Commercial)	Desktop (Class I)
XP Power VES120PS24	1.3 lbs	589.7 g	264 VAC	90 VAC	120 W	Cord (Sold Separately)	Power DIN 4 Pin	International	1.2 m	47.2 in	CB CCC GS UL	62368-1	168 mm	6.61 in	2.8 in	37.2 mm	71 mm	1.48 in	150 mW	60 °C	24 V	IEC 320-C14	CoC Tier 2 Level VI		ITE (Commercial)	Desktop (Class I)	5 A
