2102430 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

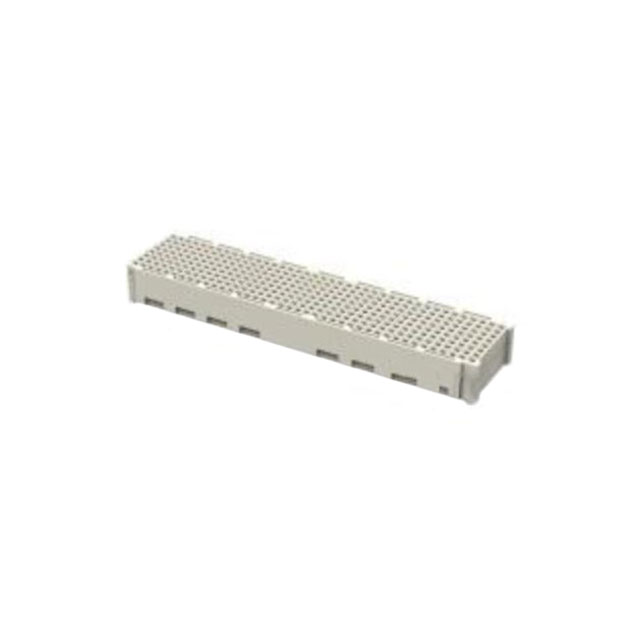

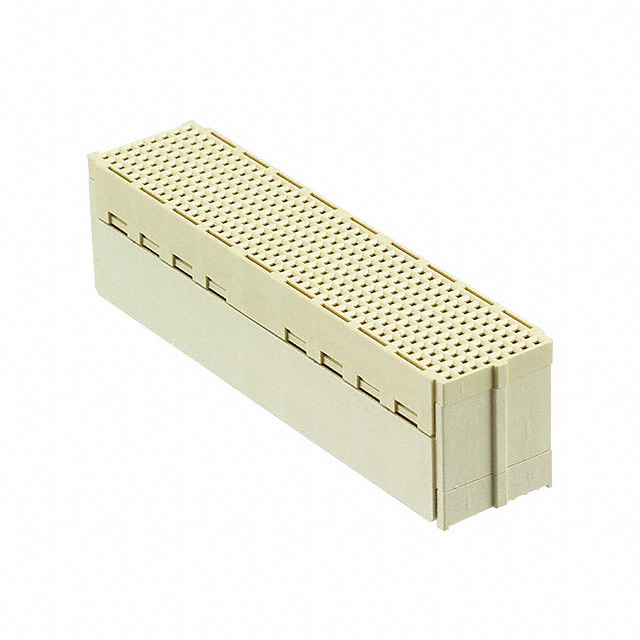

CONN RCPT 320POS 0.05 GOLD SMD
| Part | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Mounting Type | Insulation Material | Number of Rows | Termination | Contact Type | Insulation Height | Insulation Height | Fastening Type | Insulation Color | Contact Shape | Mated Stacking Heights | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Connector Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | Beryllium Copper | 1.27 µm | 50 µin | 250 VAC | -55 °C | 125 °C | Gold | 0.05 in | 1.27 mm | 320 | Surface Mount | Liquid Crystal Polymer (LCP) | 8 | Solder | Female Socket | 0.551 in | 14 mm | Push-Pull | Natural | Square | 18 mm | Tin-Lead | 0.05 in | 1.27 mm | All | Receptacle | Pick and Place |
 TE Connectivity Aerospace, Defense and Marine | Beryllium Copper | 0.76 Ám | 30 Áin | 250 VAC | -55 °C | 125 °C | Gold | 0.05 in | 1.27 mm | 320 | Surface Mount | Liquid Crystal Polymer (LCP) | 8 | Solder | Female Socket | 0.551 in | 14 mm | Push-Pull | Natural | Square | 18 mm | Tin-Lead | 0.05 in | 1.27 mm | All | Receptacle | Pick and Place |
