FPG.00.304 Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 4P GOLD SLDR CUP

Part	Contact Finish - Mating	Mounting Type	Features	Number of Positions	Material Flammability Rating	Shell Finish	Shell Size - Insert	Shielding	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Current Rating (Amps)	Orientation [custom]	Connector Type	Insert Material	Primary Material	Contact Material	Shell Material	Backshell Material, Plating	Ingress Protection	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Fastening Type
LEMO FPG.00.304.CLAD35	Gold	Free Hanging (In-Line) Right Angle	Backshell	4	UL94 V-0	Chrome	304	Shielded	39.4 µin	1 µm	-55 C	250 °C	Silver	2 A	G	Plug Male Pins	Polyetheretherketone (PEEK)	Metal	Brass	Brass	Brass Chrome	IP50 - Dust Protected	2.7 mm	0.106 in	3.5 mm	0.138 in	Push-Pull

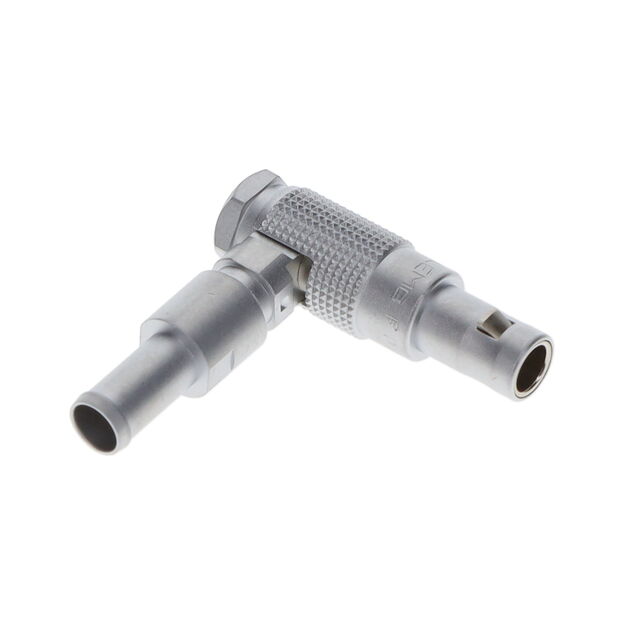

LEMO FPG.00.304.CLAD35Z	Gold	Free Hanging (In-Line) Right Angle	Backshell	4	UL94 V-0	Chrome	304	Shielded	39.4 µin	1 µm	-55 C	250 °C	Silver	2 A	G	Plug Male Pins	Polyetheretherketone (PEEK)	Metal	Brass	Brass	Brass Chrome	IP50 - Dust Protected	2.7 mm	0.106 in	3.5 mm	0.138 in	Push-Pull
