MS8025 Series

Catalog

FAN AXIAL 80X25.2MM 24VDC WIRE

Part	Current Rating (Amps)	Material - Frame	Material - Blade	Fan Type	Voltage - Rated	Bearing Type	Ingress Protection	RPM	Weight	Weight	Air Flow	Air Flow	Size / Dimension [z]	Size / Dimension [x]	Termination	Noise	Features	Static Pressure	Static Pressure	Width [x]
Mechatronics Fan Group MS8025H24B1+6-FHR-2EM	360 mA	Plastic	Plastic	Tubeaxial	24 VDC	Ball	IP68 - Dust Tight Waterproof	5000 RPM	0.172 lb	78.02 g	70.5 CFM	1.97 m³/min	80 mm	80 mm	4 Wire Leads	50 dB(A)	Auto Restart PWM Control Speed Sensor (Tach)	137 Pa	0.55 in H2O	25.2 mm

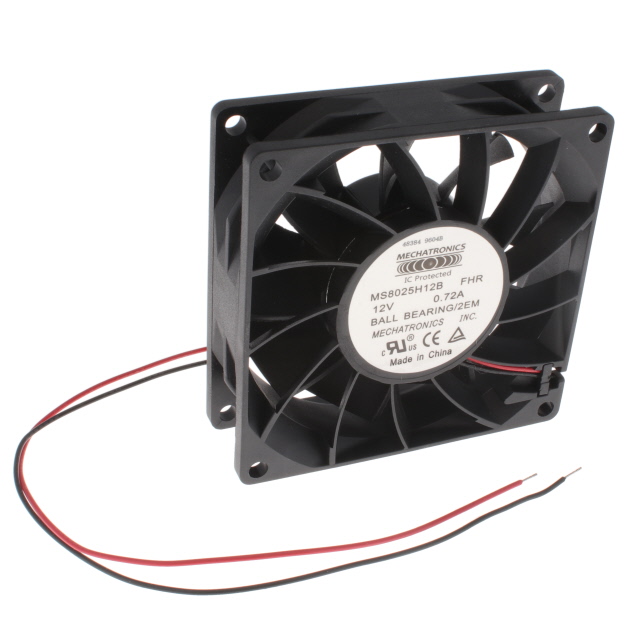

Mechatronics Fan Group MS8025H12B-FHR-2EM	0.56 A	Plastic	Plastic	Tubeaxial	12 VDC	Ball	IP68 - Dust Tight Waterproof	5000 RPM	0.172 lb	78.02 g	70.5 CFM	1.97 m³/min	80 mm	80 mm	2 Wire Leads	50 dB(A)	Auto Restart	137 Pa	0.55 in H2O	25.2 mm
