YB16MK Series

Catalog

SPDT ON-ON ROUND SNAP-IN MOUNT 3

Part	Electrical Life	Mechanical Life	Actuator Type	Type	Circuit	Mounting Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Switch Function	Voltage Rating - AC	Illumination Type, Color	Illumination Voltage (Nominal)	Current Rating (Amps)	Actuator Marking	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Features
NKK Switches YB16MKW01-2CF02-JB	100000 Cycles	200000 Cycles	Button Round	Illuminated Standard	SPDT	Panel Mount Snap-In	Solder Quick Connect - 0.110" (2.8mm)	50 °C	-25 °C	30 V	On-On	125 V	Green/Red LED	2.1 VDC	3 A	No Marking	Clear	16 mm	Tactile Feedback

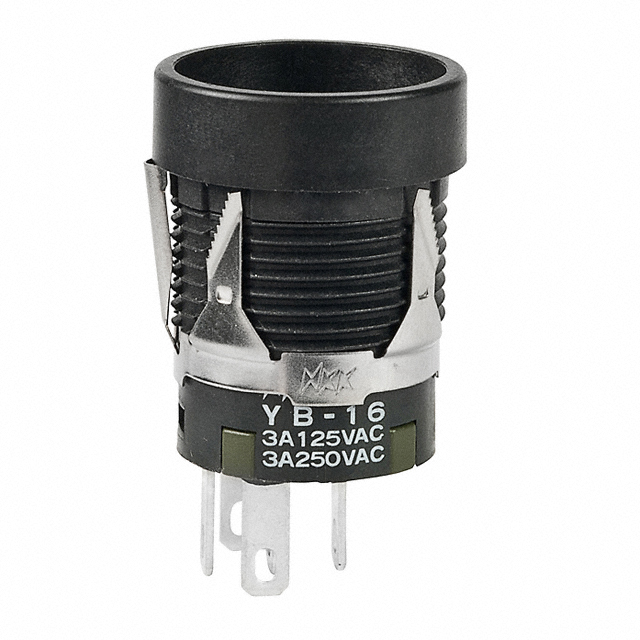

NKK Switches YB16MKW01-CB	100000 Cycles	200000 Cycles	Button Round	Standard	SPDT	Panel Mount Snap-In	Solder Quick Connect - 0.110" (2.8mm)	70 °C	-25 °C	30 V	On-On	125 V			3 A	No Marking	Red	16 mm	Tactile Feedback

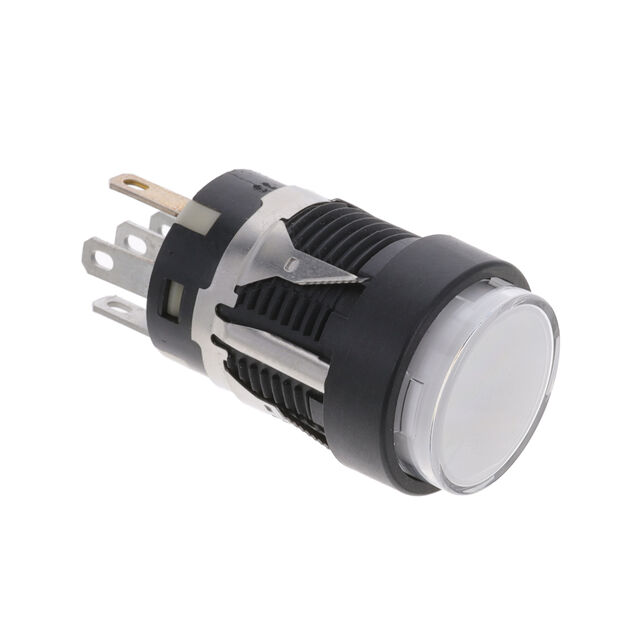

NKK Switches YB16MKG01-6G-JB	100000 Cycles	200000 Cycles	Button Round	Illuminated Standard	SPDT	Panel Mount Snap-In	Solder Quick Connect - 0.110" (2.8mm)	50 °C	-25 °C	28 V	On-On	28 V	Blue LED	3.6 VDC	0.4 VA	No Marking	Clear	16 mm	Tactile Feedback
NKK Switches YB16MKW01-5C24-JC	100000 Cycles	200000 Cycles	Button Round	Illuminated Standard	SPDT	Panel Mount Snap-In	Solder Quick Connect - 0.110" (2.8mm)	50 °C	-25 °C	30 V	On-On	125 V	LED Red	24 V	3 A	No Marking	Clear	16 mm	Tactile Feedback
NKK Switches YB16MKW01-1F12-JA	100000 Cycles	200000 Cycles	Button Round	Illuminated Standard	SPDT	Panel Mount Snap-In	Solder Quick Connect - 0.110" (2.8mm)	50 °C	-25 °C	30 V	On-On	125 V	Green LED	12 VDC	3 A	No Marking	Clear	16 mm	Tactile Feedback
NKK Switches YB16MKW01-BB	100000 Cycles	200000 Cycles	Button Round	Standard	SPDT	Panel Mount Snap-In	Solder Quick Connect - 0.110" (2.8mm)	70 °C	-25 °C	30 V	On-On	125 V			3 A	No Marking	White	16 mm	Tactile Feedback
NKK Switches YB16MKW01-6F-JB	100000 Cycles	200000 Cycles	Button Round	Illuminated Standard	SPDT	Panel Mount Snap-In	Solder Quick Connect - 0.110" (2.8mm)	50 °C	-25 °C	30 V	On-On	125 V	Green LED	3.3 VDC	3 A	No Marking	Clear	16 mm	Tactile Feedback
NKK Switches YB16MKW01-1F12-JF	100000 Cycles	200000 Cycles	Button Round	Illuminated Standard	SPDT	Panel Mount Snap-In	Solder Quick Connect - 0.110" (2.8mm)	50 °C	-25 °C	30 V	On-On	125 V	Green LED	12 VDC	3 A	No Marking	Clear	16 mm	Tactile Feedback
NKK Switches YB16MKG01-1CF05-JA	100000 Cycles	200000 Cycles	Button Round	Illuminated Standard	SPDT	Panel Mount Snap-In	Solder Quick Connect - 0.110" (2.8mm)	50 °C	-25 °C	28 V	On-On	28 V	Green/Red LED	5 VDC	0.4 VA	No Marking	Clear	16 mm	Tactile Feedback
NKK Switches YB16MKW01-1CF12-JF	100000 Cycles	200000 Cycles	Button Round	Illuminated Standard	SPDT	Panel Mount Snap-In	Solder Quick Connect - 0.110" (2.8mm)	50 °C	-25 °C	30 V	On-On	125 V	Green/Red LED	12 VDC	3 A	No Marking	Clear	16 mm	Tactile Feedback
