LMK04805 Series

Catalog

LOW-NOISE CLOCK JITTER CLEANER WITH DUAL CASCADED PLLS AND INTEGRATED 2.2-GHZ VCO

Part	Divider/Multiplier	Voltage - Supply [Max]	Voltage - Supply [Min]	Input	Package / Case	Supplier Device Package	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Output	Frequency - Max [Max]	Number of Circuits	Ratio - Input:Output [custom]	Ratio - Input:Output [custom]	Secondary Attributes	Utilized IC / Part	Primary Attributes	Function	Supplied Contents
Texas Instruments LMK04805BISQX/NOPB	Yes/No	3.45 V	3.15 V	LVCMOS LVDS LVPECL	64-WFQFN Exposed Pad	64-WQFN (9x9)	Jitter Cleaner	85 °C	-40 °C	Surface Mount	LVCMOS LVDS LVPECL	1.536 GHz	1	14	2
Texas Instruments LMK04805BISQ/NOPB	Yes/No	3.45 V	3.15 V	LVCMOS LVDS LVPECL	64-WFQFN Exposed Pad	64-WQFN (9x9)	Jitter Cleaner	85 °C	-40 °C	Surface Mount	LVCMOS LVDS LVPECL	1.536 GHz	1	14	2
Texas Instruments LMK04805BEVAL							Timing									Integrated PLL and VCO	LMK04805	122.88 MHz	Clock Conditioner	Board(s) Cable(s)
Texas Instruments LMK04805BISQE/NOPB	Yes/No	3.45 V	3.15 V	LVCMOS LVDS LVPECL	64-WFQFN Exposed Pad	64-WQFN (9x9)	Jitter Cleaner	85 °C	-40 °C	Surface Mount	LVCMOS LVDS LVPECL	1.536 GHz	1	14	2

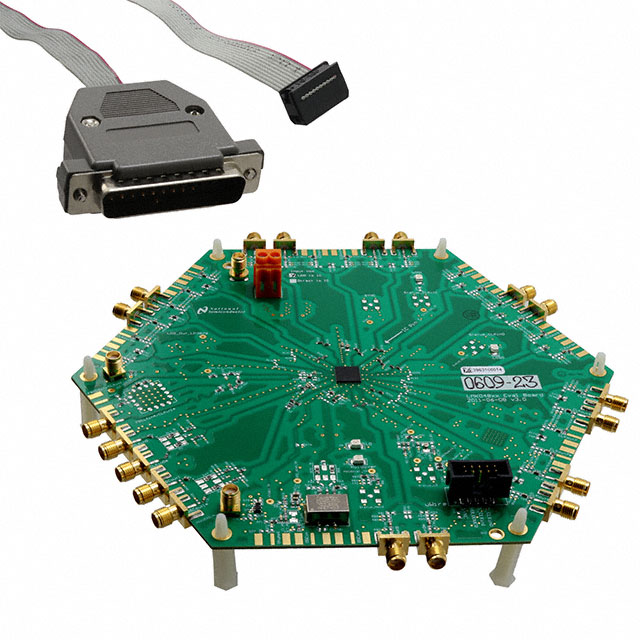

Texas Instruments LMK04805BEVAL/NOPB							Timing									Integrated PLL and VCO	LMK04805	122.88 MHz	Clock Conditioner	Board(s) Cable(s)
