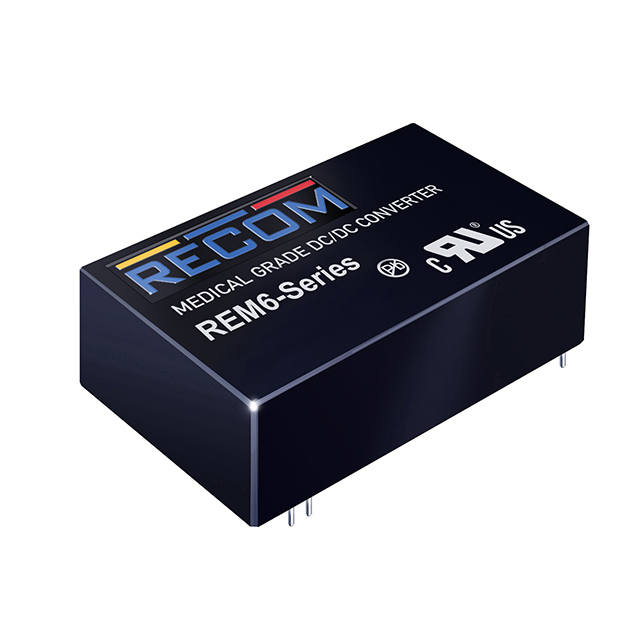

REM6-S_D(W) Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 6W 36-75VIN 5VOUT DIP24
| Part | Features | Voltage - Isolation | Efficiency | Voltage - Input (Min) [Min] | Control Features | Power (Watts) | Mounting Type | Current - Output (Max) [Max] | Number of Outputs | Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Input (Max) [Max] | Applications | Voltage - Output 1 | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | OCP OVP Remote On/Off SCP UVLO | 5000 V | 86.5 % | 36 V | Active Low Enable | 6 W | Through Hole | 1.2 A | 1 | Isolated Module | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 75 V | ITE (Commercial) Medical | 5 V | 24-DIP Module 6 Leads | -40 C | 105 ░C |
 Recom Power | OCP OVP Remote On/Off SCP UVLO | 5000 V | 86 % | 9 V | 6 W | Through Hole | 1.2 A | 1 | Isolated Module | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 36 V | ITE (Commercial) Medical | 5 V | 24-DIP Module 5 Leads | -40 C | 105 ░C | |
 Recom Power | OCP OVP Remote On/Off SCP UVLO | 5000 V | 86 % | 9 V | 6 W | Through Hole | 1.2 A | 1 | Isolated Module | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 18 V | ITE (Commercial) Medical | 5 V | 24-DIP Module 5 Leads | -40 C | 105 ░C | |
Recom Power | OCP OVP Remote On/Off SCP UVLO | 5000 V | 88 % | 18 V | Active Low Enable | 6 W | Through Hole | 250 mA | 1 | Isolated Module | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 75 V | ITE (Commercial) Medical | 24 V | 24-DIP Module 6 Leads | -40 C | 105 ░C |
Recom Power | OCP OVP Remote On/Off SCP UVLO | 5000 V | 88.5 % | 36 V | Active Low Enable | 6 W | Through Hole | 400 mA | 1 | Isolated Module | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 75 V | ITE (Commercial) Medical | 15 V | 24-DIP Module 6 Leads | -40 C | 105 ░C |
Recom Power | OCP OVP Remote On/Off SCP UVLO | 5000 V | 86 % | 4.5 V | 6 W | Through Hole | 1.2 A | 1 | Isolated Module | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 9 V | ITE (Commercial) Medical | 5 V | 24-DIP Module 5 Leads | -40 C | 105 ░C | |
Recom Power | OCP OVP Remote On/Off SCP UVLO | 5000 V | 88.5 % | 9 V | 6 W | Through Hole | 250 mA | 1 | Isolated Module | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 36 V | ITE (Commercial) Medical | 24 V | 24-DIP Module 5 Leads | -40 C | 105 ░C | |
Recom Power | OCP OVP Remote On/Off SCP UVLO | 5000 V | 89 % | 9 V | 6 W | Through Hole | 500 mA | 1 | Isolated Module | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 36 V | ITE (Commercial) Medical | 12 V | 24-DIP Module 5 Leads | -40 C | 105 ░C | |
Recom Power | OCP OVP Remote On/Off SCP UVLO | 5000 V | 86 % | 18 V | 6 W | Through Hole | 1.2 A | 1 | Isolated Module | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 36 V | ITE (Commercial) Medical | 5 V | 24-DIP Module 5 Leads | -40 C | 105 ░C | |
Recom Power | OCP OVP Remote On/Off SCP UVLO | 5000 V | 89 % | 18 V | Active Low Enable | 6 W | Through Hole | 500 mA | 1 | Isolated Module | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 36 V | ITE (Commercial) Medical | 12 V | 24-DIP Module 6 Leads | -40 C | 105 ░C |
