8280-5SG Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

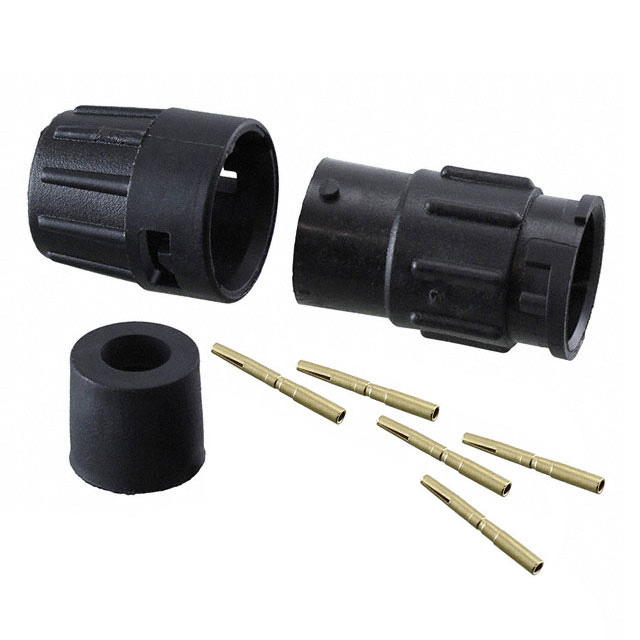

MINI-CON-X CABLE-TO-CABLE, 5-PIN #20, FEMALE, CRIMP, BULK
| Part | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Color | Applications | Features | Backshell Material, Plating | Current Rating (Amps) | Contact Finish - Mating | Termination | Number of Positions | Mounting Type | Contact Material | Connector Type | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Primary Material | Shielding | Orientation | Ingress Protection | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 600 V | 115 °C | -40 C | Bayonet Lock | Black | Automotive Communication Systems Instrumentation | Backshell | Nylon Polyamide (PA) | Varies by Wire Gauge | Gold | Crimp | 5 | Free Hanging (In-Line) | Brass | Receptacle Female Sockets | 0.14 in | 2.29 mm | 0.09 in | 3.56 mm | Plastic | Unshielded | Keyed | Weathertight | |
 SWITCHCRAFT/CONXALL | 600 V | 115 °C | -40 C | Bayonet Lock | Black | Automotive Communication Systems Instrumentation | Backshell | Nylon Polyamide (PA) | Varies by Wire Gauge | Gold | Crimp | 5 | Free Hanging (In-Line) | Brass | Receptacle Female Sockets | 0.17 in | 3.81 mm | 0.15 " | Plastic | Unshielded | Keyed | Weathertight | 4.32 mm | |
 SWITCHCRAFT/CONXALL | 600 V | 115 °C | -40 C | Bayonet Lock | Black | Automotive Communication Systems Instrumentation | Backshell | Nylon Polyamide (PA) | Varies by Wire Gauge | Gold | Crimp | 5 | Free Hanging (In-Line) | Brass | Receptacle Female Sockets | 0.2 " | 4.57 mm | 0.18 " | Plastic | Unshielded | Keyed | Weathertight | 5.08 mm |
