216093 Series

Catalog

AMP-LATCH PRE-ASSY DIL WITHO

Part	Number of Positions Loaded	Number of Positions [custom]	Row Spacing	Row Spacing	Features	Contact Finish Thickness	Contact Finish Thickness	Board-Side Pitch	Board-Side Pitch	Cable Pitch	Cable Pitch	Contact Finish	Mounting Type	Cable Termination	Wire Gauge [Min] [custom]	Wire Gauge [custom]	Wire Gauge [Max] [custom]	Wire Gauge [custom]	Color	Number of Rows [custom]	Connector Type	Number of Positions
TE Connectivity AMP Connectors 3-216093-4	All	34	2.54 mm	0.1 "	Feed Through	3 µm	118.1 µin	2.54 mm	0.1 "	1.27 mm	0.05 in	Tin	Through Hole	IDC	26 AWG	Solid Stranded	30 AWG	28 AWG	Gray	2	DIP Header Ribbon Cable

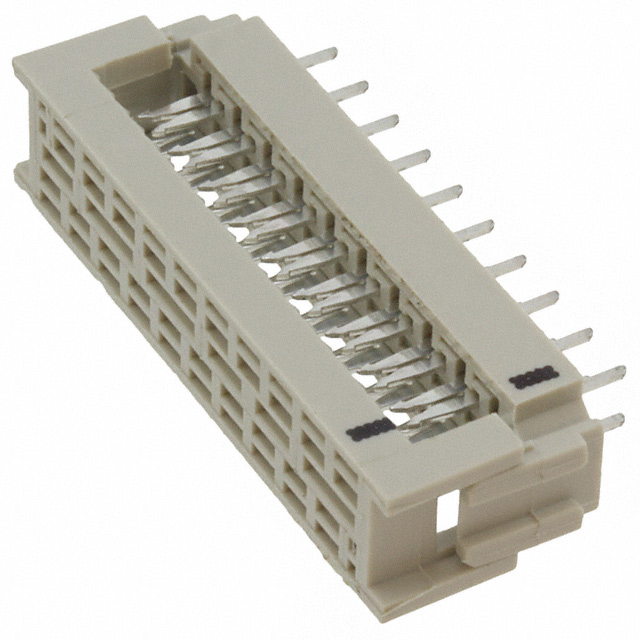

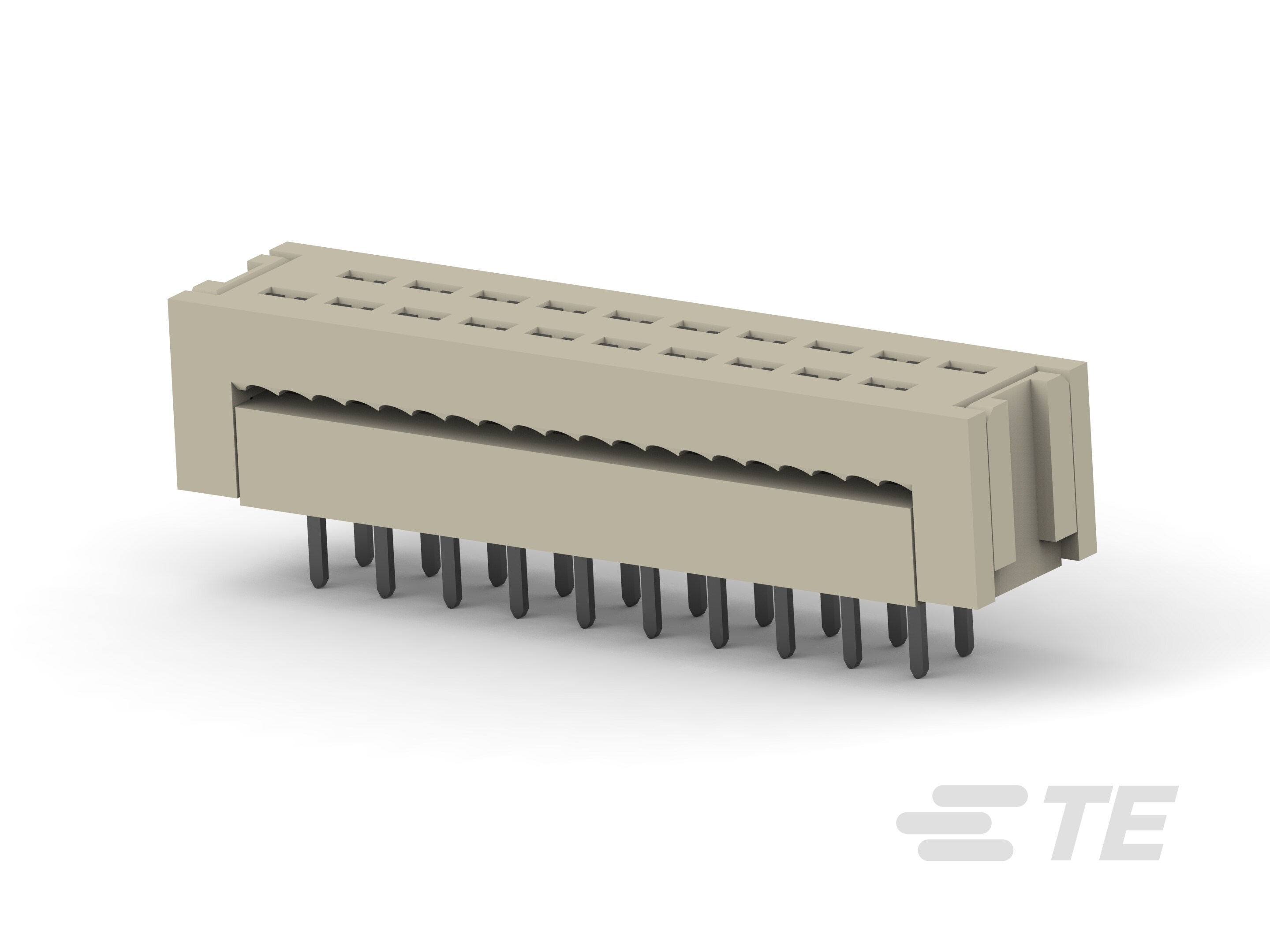

TE Connectivity AMP Connectors 2-216093-0	All		2.54 mm	0.1 "	Feed Through	3 µm	118.1 µin	2.54 mm	0.1 "	1.27 mm	0.05 in	Tin	Through Hole	IDC	26 AWG	Solid Stranded	30 AWG	28 AWG	Gray	2	DIP Header Ribbon Cable	20
TE Connectivity AMP Connectors 4-216093-0	All		2.54 mm	0.1 "	Feed Through	3 µm	118.1 µin	2.54 mm	0.1 "	1.27 mm	0.05 in	Tin	Through Hole	IDC	26 AWG	Solid Stranded	30 AWG	28 AWG	Gray	2	DIP Header Ribbon Cable	40

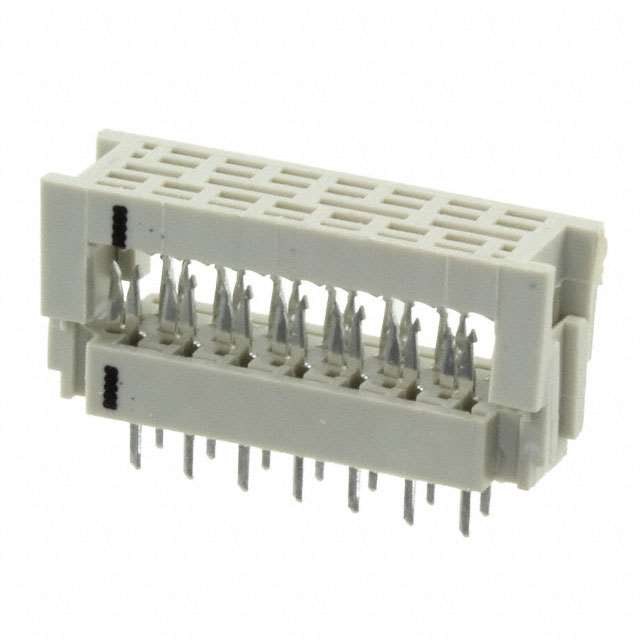

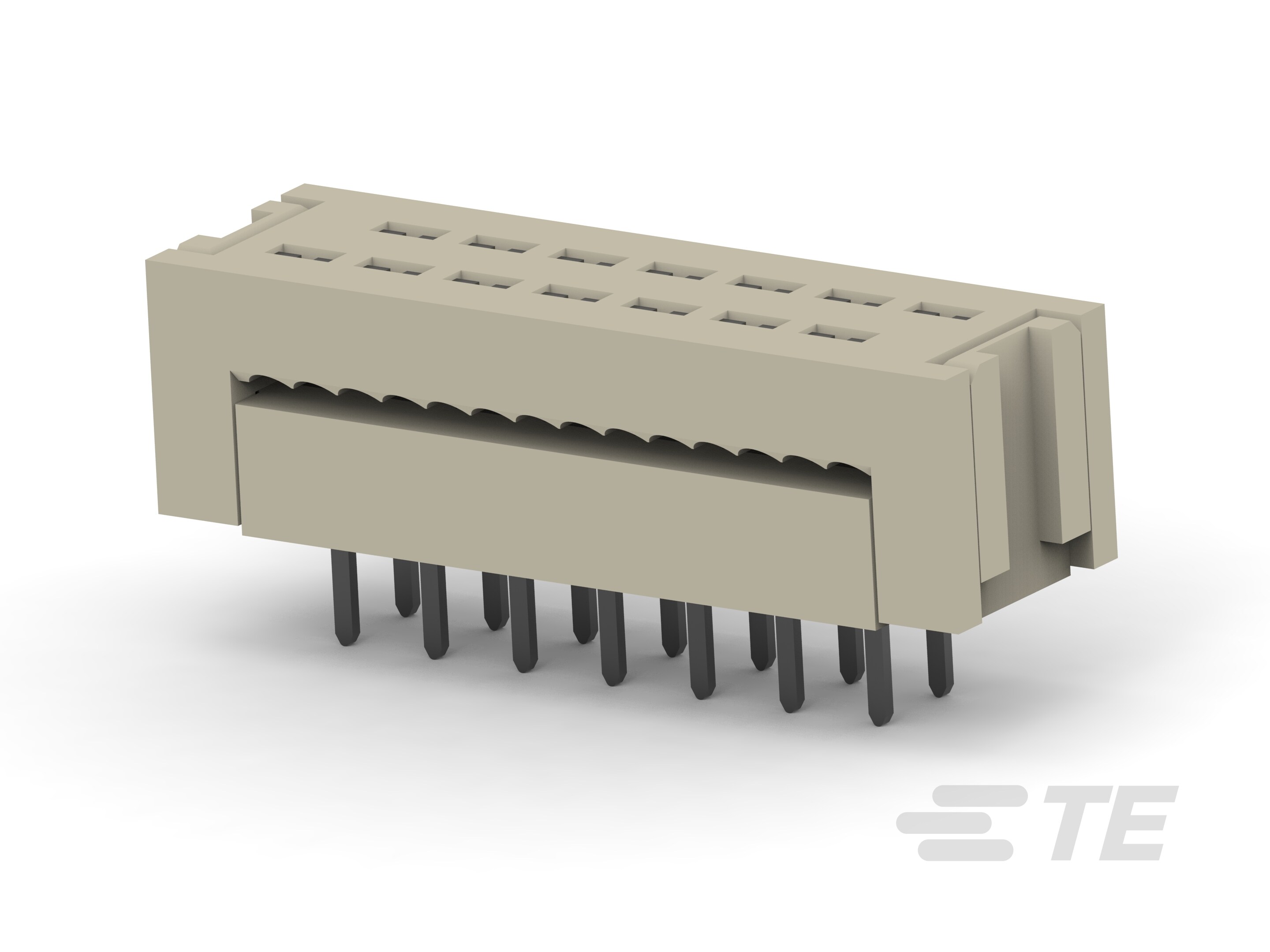

TE Connectivity AMP Connectors 1-216093-4	All		2.54 mm	0.1 "	Feed Through	3 µm	118.1 µin	2.54 mm	0.1 "	1.27 mm	0.05 in	Tin	Through Hole	IDC	26 AWG	Solid Stranded	30 AWG	28 AWG	Gray	2	DIP Header Ribbon Cable	14
TE Connectivity AMP Connectors 6-216093-4	All		2.54 mm	0.1 "	Feed Through	3 µm	118.1 µin	2.54 mm	0.1 "	1.27 mm	0.05 in	Tin	Through Hole	IDC	26 AWG	Solid Stranded	30 AWG	28 AWG	Gray	2	DIP Header Ribbon Cable	64
