D38999/26WB Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN PLUG MALE 5POS GOLD CRIMP

Part	Connector Type	Features	Termination	Insert Material	Ingress Protection	Shell Material	Shell Finish	Primary Material	Fastening Type	Orientation	Contact Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Mounting Type	Grade	Applications	Shell Size, MIL	Number of Positions	Contact Finish - Mating	Shielding	Qualification	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Housing Color	Contact Shape	Contact Size	Note	Type	Voltage Rating	Voltage Rating	Shell Size - Insert [Max]	Shell Size - Insert [Min]
TE Connectivity AMP Connectors D38999/26WB5PN	Plug Male Pins	Self Locking	Crimp	Thermoplastic	Environment Resistant	Aluminum	Olive Drab Cadmium	Metal	Threaded	N (Normal)	Copper Alloy	7.5 A	50 µin	1.27 µm	11-5	Free Hanging (In-Line)	Military	Aviation Communication Systems Industrial Military	B	5	Gold	Shielded	MIL-DTL-38999 Series III	Olive Drab	-65 ░C	175 °C
TE Connectivity AMP Connectors D38999/26WB98PE-LC	Plug Housing	Coupling Nut		Thermoplastic	Environment Resistant	Aluminum	Cadmium	Metal	Threaded	E						Free Hanging (In-Line)	Military		B	6		Shielded	MIL-DTL-38999 Series III		-65 ░C	175 °C	Crimp	11	98	Olive Drab	Circular	20	Contacts Not Included	For Male Pins
TE Connectivity AMP Connectors D38999/26WB2PD	Plug Male Pins	Coupling Nut	Crimp	Thermoplastic	Environment Resistant	Aluminum	Olive Drab Cadmium	Metal	Threaded	D	Copper Alloy		50 µin	1.27 µm	11-2	Free Hanging (In-Line)	Military	Aviation Communication Systems Industrial Military		2	Gold	Shielded	MIL-DTL-38999 Series III	Olive Drab	-65 ░C	175 °C									600 VAC	850 VDC
TE Connectivity AMP Connectors D38999/26WB2SC	Plug Female Sockets	Coupling Nut	Crimp	Thermoplastic	Environment Resistant	Aluminum	Olive Drab Cadmium	Metal	Threaded	C	Copper Alloy		50 µin	1.27 µm	11-2	Free Hanging (In-Line)	Military	Aviation Communication Systems Industrial Military		2	Gold	Shielded	MIL-DTL-38999 Series III	Olive Drab	-65 ░C	175 °C									600 VAC	850 VDC
TE Connectivity AMP Connectors D38999/26WB2SB	Plug Female Sockets	Coupling Nut	Crimp	Thermoplastic	Environment Resistant	Aluminum	Olive Drab Cadmium	Metal	Threaded	B	Copper Alloy		50 µin	1.27 µm	11-2	Free Hanging (In-Line)	Military	Aviation Communication Systems Industrial Military		2	Gold	Shielded	MIL-DTL-38999 Series III	Olive Drab	-65 ░C	175 °C									600 VAC	850 VDC

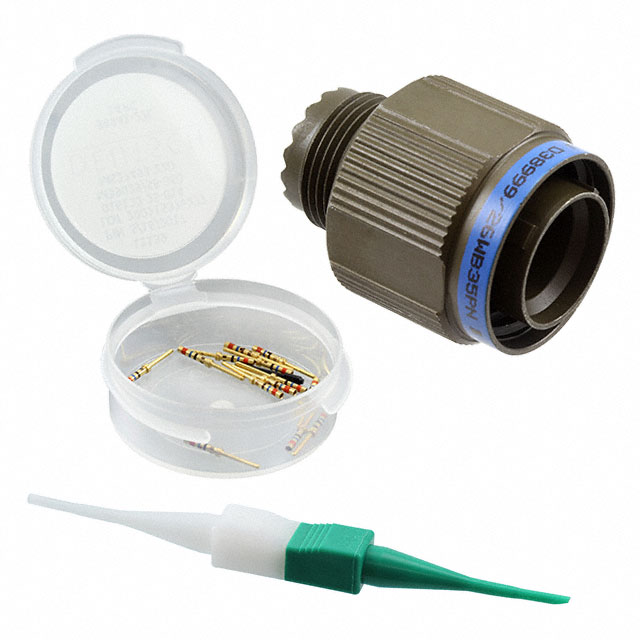

TE Connectivity AMP Connectors D38999/26WB35PN	Plug Male Pins	Self Locking	Crimp	Thermoplastic	Environment Resistant	Aluminum	Olive Drab Cadmium	Metal	Threaded	N (Normal)	Copper Alloy	5 A	50 µin	1.27 µm		Free Hanging (In-Line)	Military	Aviation Communication Systems Industrial Military	B	13	Gold	Shielded	MIL-DTL-38999 Series III	Olive Drab	-65 ░C	175 °C											35	11
TE Connectivity AMP Connectors D38999/26WB5PB	Plug Male Pins	Self Locking	Crimp	Thermoplastic	Environment Resistant	Aluminum	Olive Drab Cadmium	Metal	Threaded	B	Copper Alloy	7.5 A	50 µin	1.27 µm	11-5	Free Hanging (In-Line)	Military	Aviation Communication Systems Industrial Military	B	5	Gold	Shielded	MIL-DTL-38999 Series III	Olive Drab	-65 ░C	175 °C									600 VAC	850 VDC
TE Connectivity AMP Connectors D38999/26WB2SE	Plug Female Sockets	Coupling Nut	Crimp	Thermoplastic	Environment Resistant	Aluminum	Olive Drab Cadmium	Metal	Threaded	E	Copper Alloy		50 µin	1.27 µm	11-2	Free Hanging (In-Line)	Military	Aviation Communication Systems Industrial Military		2	Gold	Shielded	MIL-DTL-38999 Series III	Olive Drab	-65 ░C	175 °C									600 VAC	850 VDC
