M1BXA Series

Catalog

IDC CABLE - MSR40A/MC40G/X

Part	Cable Termination	Features	Shielding	Connector Type	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Length	Length	Pitch - Cable	Pitch - Cable	Number of Positions	Number of Rows [custom]	Color	Number of Positions [custom]
3M Electronic Specialty M1BXA-4036J	IDC	Strain Relief	Unshielded	Socket to Cable	0.1 in	2.54 mm	30 Áin	0.76 Ám	Gold	91.44 cm	3 ft	0.05 in	1.27 mm	40	2
3M Electronic Specialty M1BXA-1036J	IDC	Strain Relief	Unshielded	Socket to Cable	0.1 in	2.54 mm	30 Áin	0.76 Ám	Gold	91.44 cm	3 ft	0.05 in	1.27 mm	10	2

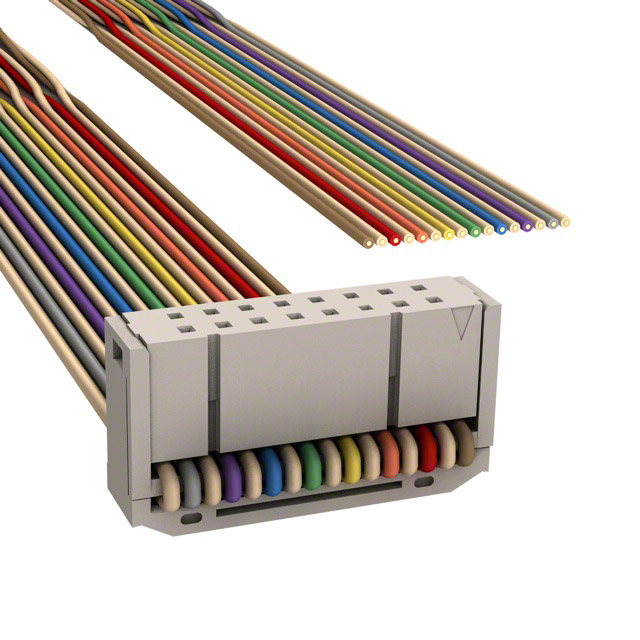

3M Electronic Specialty M1BXA-1636R	IDC	Strain Relief	Unshielded	Socket to Cable	0.1 in	2.54 mm	30 Áin	0.76 Ám	Gold	91.44 cm	3 ft	0.05 in	1.27 mm	16	2	Multiple Ribbon
3M Electronic Specialty M1BXA-1640K	IDC	Strain Relief	Unshielded	Socket to Cable	0.1 in	2.54 mm	30 Áin	0.76 Ám	Gold	1.02 m	3.34 ft	0.05 in	1.27 mm	16	2	Multiple Twisted Pair (Flat)
3M Electronic Specialty M1BXA-4036R	IDC	Strain Relief	Unshielded	Socket to Cable	0.1 in	2.54 mm	30 Áin	0.76 Ám	Gold	91.44 cm	3 ft	0.05 in	1.27 mm	40	2	Multiple Ribbon
3M Electronic Specialty M1BXA-3436R	IDC	Strain Relief	Unshielded	Socket to Cable	0.1 in	2.54 mm	30 Áin	0.76 Ám	Gold	91.44 cm	3 ft	0.05 in	1.27 mm		2	Multiple Ribbon	34
3M Electronic Specialty M1BXA-3036J	IDC	Strain Relief	Unshielded	Socket to Cable	0.1 in	2.54 mm	30 Áin	0.76 Ám	Gold	91.44 cm	3 ft	0.05 in	1.27 mm	30	2
3M Electronic Specialty M1BXA-5036R	IDC	Strain Relief	Unshielded	Socket to Cable	0.1 in	2.54 mm	30 Áin	0.76 Ám	Gold	91.44 cm	3 ft	0.05 in	1.27 mm	50	2	Multiple Ribbon
3M Electronic Specialty M1BXA-1436R	IDC	Strain Relief	Unshielded	Socket to Cable	0.1 in	2.54 mm	30 Áin	0.76 Ám	Gold	91.44 cm	3 ft	0.05 in	1.27 mm	14	2	Multiple Ribbon
3M Electronic Specialty M1BXA-3440K	IDC	Strain Relief	Unshielded	Socket to Cable	0.1 in	2.54 mm	30 Áin	0.76 Ám	Gold	1.02 m	3.34 ft	0.05 in	1.27 mm		2	Multiple Twisted Pair (Flat)	34
