P33-5 Series

Manufacturer: Polytron

Catalog

AC/DC CONVERTER +/-5V

Part	Line Regulation	Load Regulation	Voltage - Output 1	Approval Agency	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Number of Outputs	Mounting Type	Current - Output (Max)	Current - Output (Max)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Features	Size / Dimension [y]	Size / Dimension [z]	Current - Output 2	Voltage - Output 2	Current - Output 1	Voltage - Isolation
Polytron P33-5X/MHIA	0.1 %	0.1 %	5 V	CE cURus	7-DIP Module 5 Leads	220 VAC	105 VAC	Medical	2	Through Hole	100 mA	100 mA	2.5 "	0.87 in	88.9 mm	63.5 mm	22.2 mm	3.5 "	71 °C	-25 °C	Enclosed
Polytron P33-5/MHIA	0.1 %	0.1 %	5 V	CE cURus	7-DIP Module 5 Leads	125 VAC	105 VAC	Medical	2	Through Hole	100 mA	100 mA	2.5 "	0.87 in	88.9 mm	63.5 mm	22.2 mm	3.5 "	71 °C	-25 °C	Enclosed
Polytron P33-5/22	0.1 %	0.1 %	5 V	CE cURus UL	5-DIP Module	125 VAC	105 VAC	ITE (Commercial)	2	Through Hole	100 mA	100 mA	2.5 "	0.88 in	88.9 mm			3.5 "	71 °C	-25 °C	Enclosed	SCP	63.5 mm	22.4 mm
Polytron P33-5XA/MHIA	0.1 %	0.1 %	5 V	CE cURus	7-DIP Module 5 Leads	230 VAC	105 VAC	Medical	2	Through Hole	100 mA	100 mA	2.5 "	0.87 in	88.9 mm	63.5 mm	22.2 mm	3.5 "	71 °C	-25 °C	Enclosed

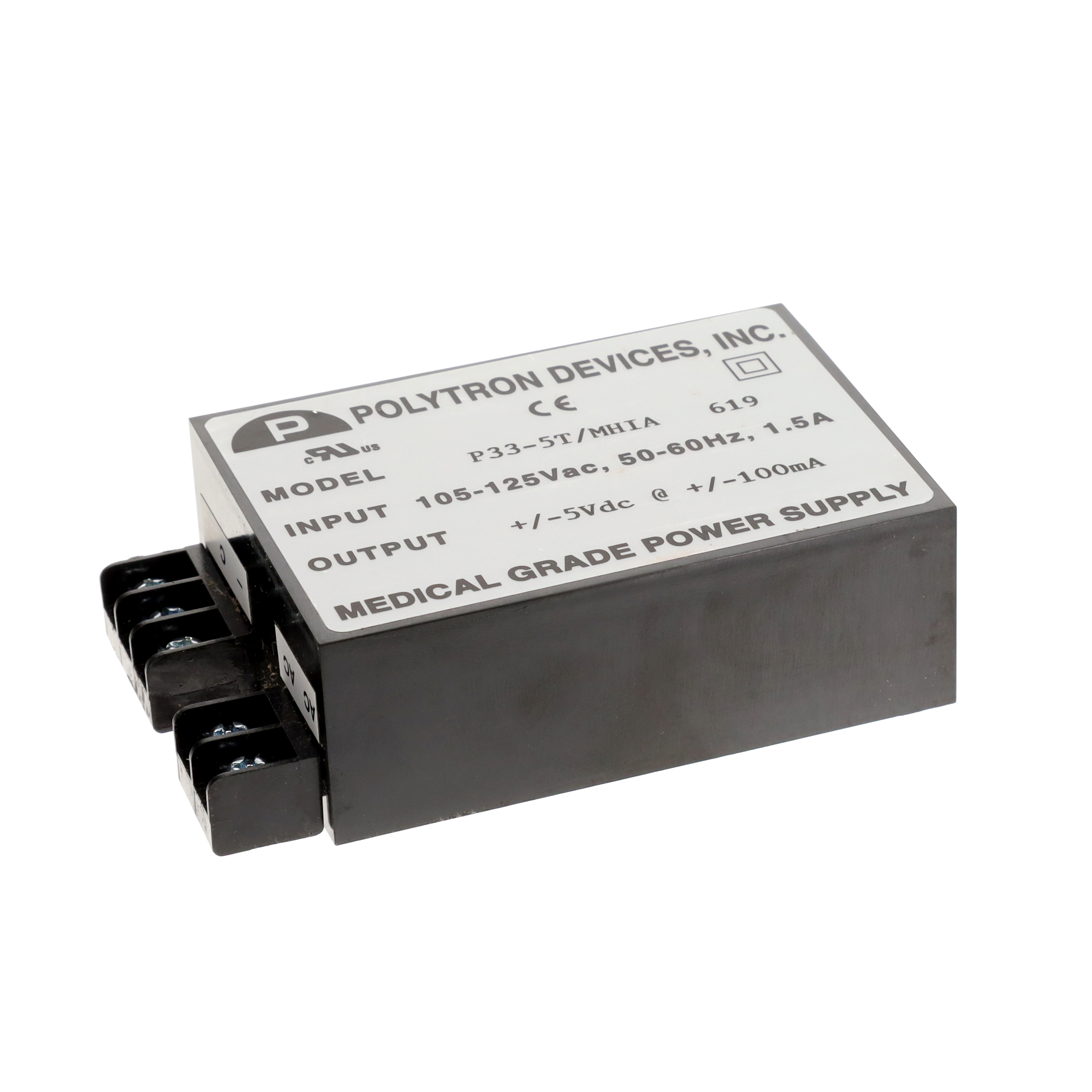

Polytron P33-5T/MHIA			5 V	CE cURus		125 VAC	105 VAC	Medical	2	Chassis Mount			2.5 "	0.88 in	104.1 mm	63.5 mm	22.2 mm	4.1 "	71 °C	-25 °C	Enclosed				100 mA	-5 V	100 mA	4000 V
Polytron P33-5QX/MHIA	0.1 %	0.1 %	5 V	CE cURus	7-DIP Module 5 Leads	220 VAC	100 VAC	Medical	2	Through Hole	100 mA	100 mA	2.5 "	0.87 in	88.9 mm	63.5 mm	22.2 mm	3.5 "	71 °C	-25 °C	Enclosed
Polytron P33-5/22/MHIA	0.1 %	0.1 %	5 V	CE cURus	5-DIP Module	125 VAC	105 VAC	Medical	2	Through Hole	100 mA	100 mA	2.5 "	0.88 in	88.9 mm			3.5 "	71 °C	-25 °C	Enclosed		63.5 mm	22.4 mm
Polytron P33-5W	0.1 %	0.1 %	5 V	CE cURus UL	7-DIP Module 5 Leads	125 VAC	105 VAC	ITE (Commercial)	2	Through Hole	100 mA	100 mA	2.5 "	0.88 in	88.9 mm			3.5 "	85 °C	-40 C	Enclosed	SCP	63.5 mm	22.4 mm
Polytron P33-5X	0.1 %	0.1 %	5 V	CE cURus UL	7-DIP Module 5 Leads	125 VAC	105 VAC	ITE (Commercial)	2	Through Hole	100 mA	100 mA	2.5 "	0.88 in	88.9 mm			3.5 "	71 °C	-25 °C	Enclosed	SCP	63.5 mm	22.4 mm
Polytron P33-5XA	0.1 %	0.1 %	5 V	CE cURus UL	7-DIP Module 5 Leads	230 VAC	105 VAC	ITE (Commercial)	2	Through Hole	100 mA	100 mA	2.5 "	0.88 in	88.9 mm			3.5 "	71 °C	-25 °C	Enclosed	SCP	63.5 mm	22.4 mm
