1544132 Series

Catalog

CONN QC RCPT 17-22AWG 0.250

Part	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Mounting Type	Tab Length	Tab Length	Length - Overall [x]	Length - Overall [x]	Gender	Tab Width [x]	Tab Width [x]	Contact Finish	Contact Material	Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Tab Thickness	Tab Thickness	Terminal Type	Termination

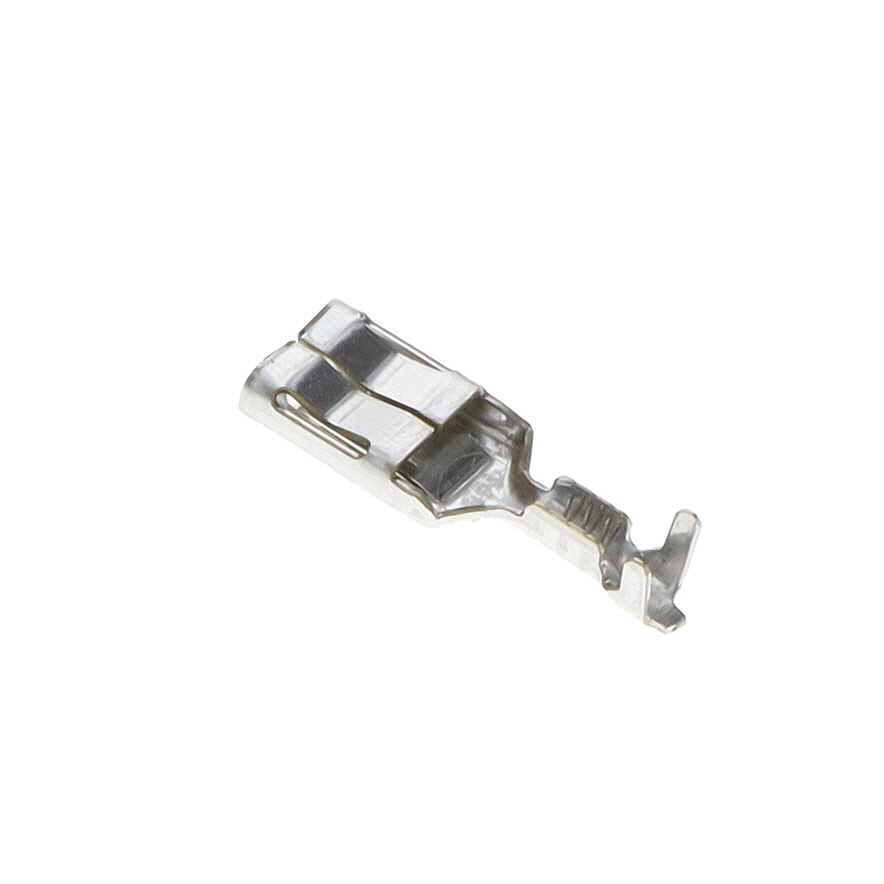

TE Connectivity AMP Connectors 1544132-2	1.32 mm	0.052 in	2.59 mm	0.102 in	Free Hanging (In-Line)	8 mm	0.315 in	22 mm	0.866 in	Female	6.35 mm	0.25 in	Tin	Brass	Non-Insulated	17 AWG	22 AWG	0.81 mm	0.032 in	Standard	Crimp
