Holsworthy UPF Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

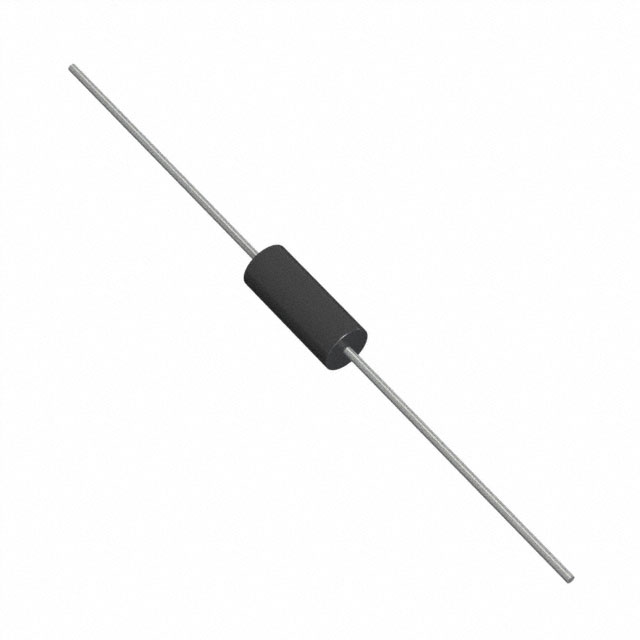

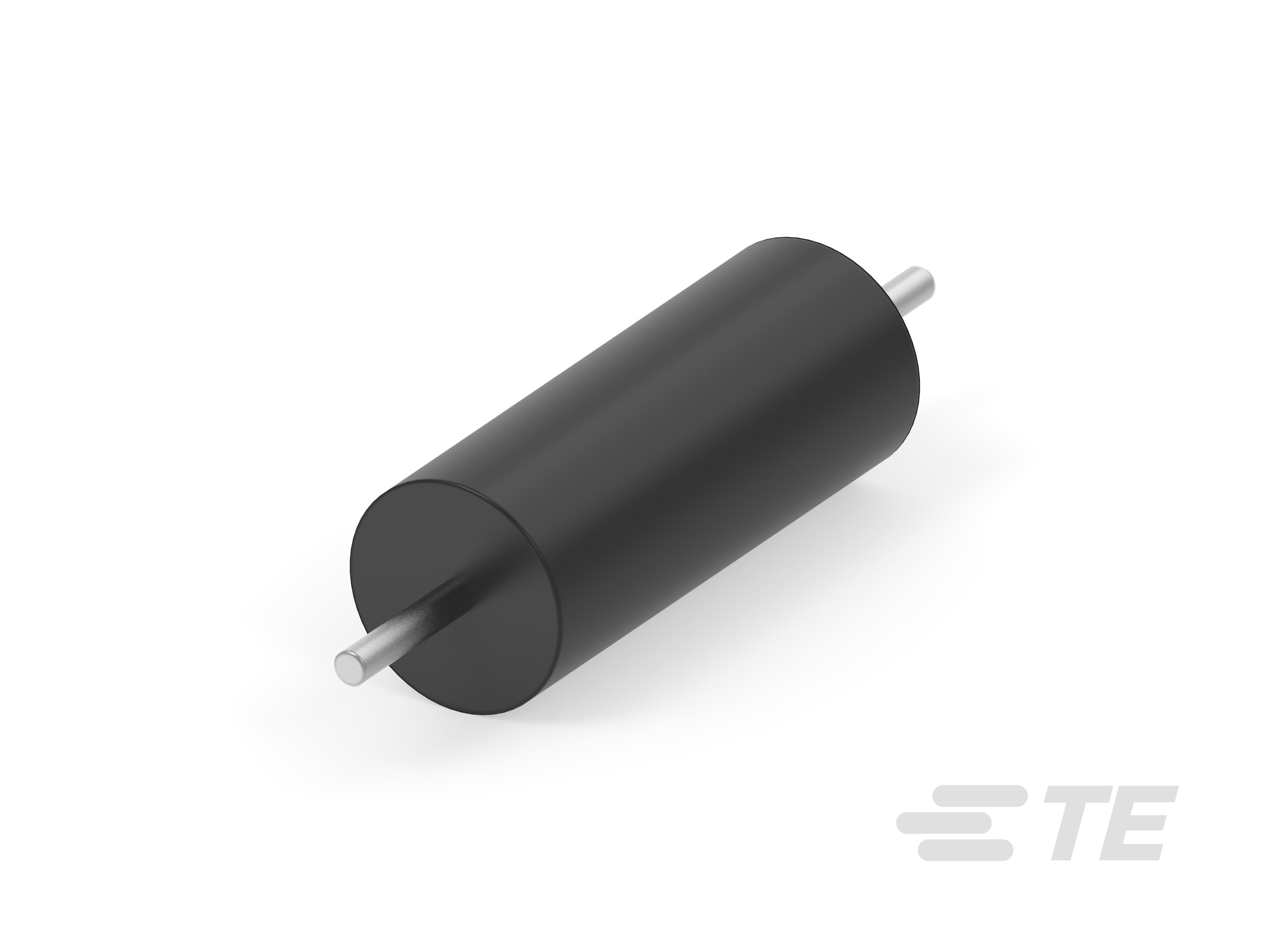

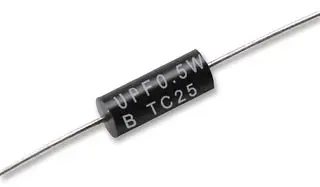

THROUGH HOLE METAL FILM RESISTOR, UPF SERIES, 250 OHM, 250 MW, - 0.1%, 250 V, AXIAL LEADED ROHS COMPLIANT: YES

Part	Composition	Power (Watts)	Power (Watts)	Package / Case	Supplier Device Package	Resistance	Temperature Coefficient	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Number of Terminations [custom]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]
TE Connectivity AMP Connectors UPF25B250RV	Metal Film	0.25 W	0.25 W	Axial	Axial	250 Ohms	5 ppm/°C	0.1 %	-55 C	125 °C	2	7 mm	0.276 in	2.7 mm	0.106 in
TE Connectivity AMP Connectors UPF50B20RV	Metal Film	0.5 W	0.5 W	Axial	Axial	20 Ohms	5 ppm/°C	0.1 %	-55 C	125 °C	2			4 mm	0.157 in	10.2 mm	0.402 in
TE Connectivity AMP Connectors UPF50B100RV	Metal Film	0.5 W	0.5 W	Axial	Axial	100 Ohms	5 ppm/°C	0.1 %	-55 C	125 °C	2			4 mm	0.157 in	10.2 mm	0.402 in
TE Connectivity AMP Connectors UPF25B5K0V	Metal Film	0.25 W	0.25 W	Axial	Axial	5 kOhms	5 ppm/°C	0.1 %	-55 C	125 °C	2	7 mm	0.276 in	2.7 mm	0.106 in
TE Connectivity AMP Connectors UPF25B10RV	Metal Film	0.25 W	0.25 W	Axial	Axial	10 Ohms	5 ppm/°C	0.1 %	-55 C	125 °C	2	7 mm	0.276 in	2.7 mm	0.106 in
TE Connectivity AMP Connectors UPF50B120RV	Metal Film	0.5 W	0.5 W	Axial	Axial	120 Ohms	5 ppm/°C	0.1 %	-55 C	125 °C	2			4 mm	0.157 in	10.2 mm	0.402 in

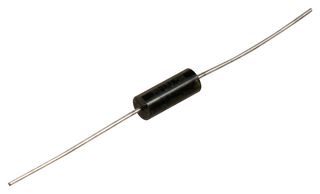

TE Connectivity AMP Connectors UPF50B50RV	Metal Film	0.5 W	0.5 W	Axial	Axial	50 Ohms	5 ppm/°C	0.1 %	-55 C	125 °C	2			4 mm	0.157 in	10.2 mm	0.402 in
TE Connectivity AMP Connectors UPF50B1K0V	Metal Film	0.5 W	0.5 W	Axial	Axial	1000 Ohms	5 ppm/°C	0.1 %	-55 C	125 °C	2			4 mm	0.157 in	10.2 mm	0.402 in
TE Connectivity AMP Connectors UPF50B250RV	Metal Film	0.5 W	0.5 W	Axial	Axial	250 Ohms	5 ppm/°C	0.1 %	-55 C	125 °C	2			4 mm	0.157 in	10.2 mm	0.402 in
TE Connectivity AMP Connectors UPF50B5K0V	Metal Film	0.5 W	0.5 W	Axial	Axial	5 kOhms	5 ppm/°C	0.1 %	-55 C	125 °C	2			4 mm	0.157 in	10.2 mm	0.402 in
