ALCOSWITCH MSSA Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH SLIDE DP4T EXTENDED TOP SLIDE 20VAC 20VDC 0.4VA PC PINS BRACKET MOUNT/THROUGH HOLE TRAY
| Part | Contact Material | Switch Function | Contact Timing | Termination Style | Voltage Rating - AC | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Actuator Length [x] | Actuator Type | Features | Circuit | Voltage Rating - DC | Contact Finish | Actuator Material | Switch Travel | Mechanical Life | Electrical Life | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Copper Alloy | On-On-On-On | Shorting (MBB) | PC Pin | 20 V | 0.4 VA | 85 °C | -20 ░C | Through Hole | 10.37 mm | Standard | Epoxy Sealed Terminals | DP4T | 20 V | Gold | |||||
 TE Connectivity AMP Connectors | Copper Alloy | On-On-On | Shorting (MBB) | PC Pin | 125 V | 300 mA | 85 °C | -20 ░C | Right Angle Through Hole | 8.89 mm | Standard | Epoxy Sealed Terminals | DP3T | Silver | ||||||
 TE Connectivity AMP Connectors | Copper Alloy | On-On-On-On | Shorting (MBB) | PC Pin | 125 V | 300 mA | 85 °C | -20 ░C | Through Hole | 10.37 mm | Standard | Epoxy Sealed Terminals | DP4T | Silver | ||||||
 TE Connectivity AMP Connectors | Copper Alloy | On-On-On-On | Shorting (MBB) | PC Pin | 20 V | 0.4 VA | 85 °C | -20 ░C | Through Hole | 10.41 mm | Standard | Epoxy Sealed Terminals | SP4T | 20 V | Gold | Polyester | 2 mm | 15000 Cycles | 15000 Cycles | 600 gf |

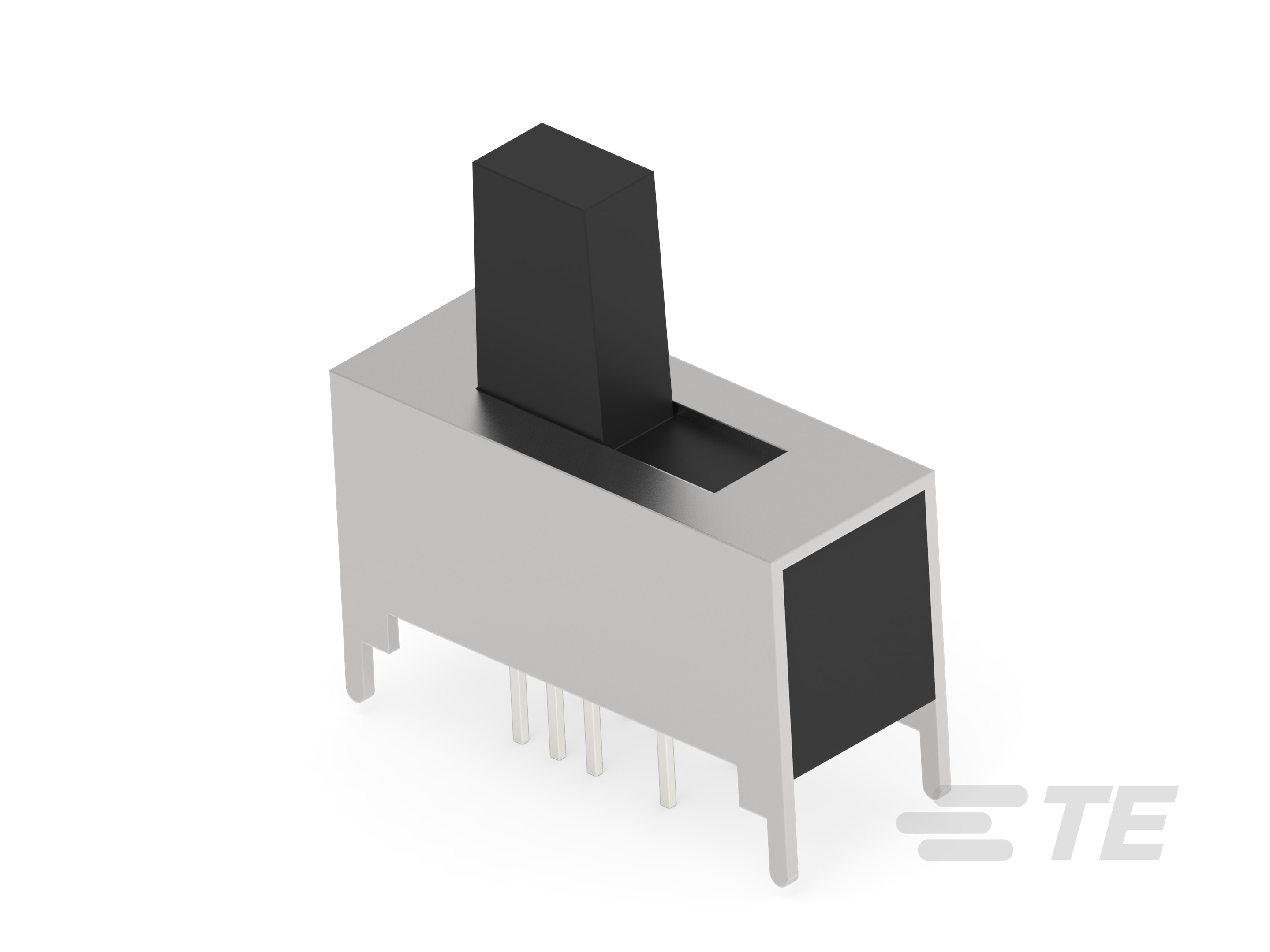

 TE Connectivity AMP Connectors | Copper Alloy | On-On-On | Shorting (MBB) | PC Pin | 125 V | 300 mA | 85 °C | -20 ░C | Through Hole | 10.39 mm | Standard | Epoxy Sealed Terminals | DP3T | Silver | Nylon 6/6 Polyamide (PA66) | 2 mm | 15000 Cycles | 15000 Cycles | 600 gf | |
TE Connectivity AMP Connectors | Copper Alloy | On-On-On | Shorting (MBB) | PC Pin | 20 V | 0.4 VA | 85 °C | -20 ░C | Through Hole | 10.39 mm | Standard | Epoxy Sealed Terminals | DP3T | 20 V | Gold | |||||
 TE Connectivity AMP Connectors | Copper Alloy | On-On-On-On | Shorting (MBB) | PC Pin | 125 V | 300 mA | 85 °C | -20 ░C | Through Hole | 10.41 mm | Standard | Epoxy Sealed Terminals | 4P4T | Silver | ||||||
TE Connectivity AMP Connectors | Copper Alloy | On-On-On | Shorting (MBB) | PC Pin | 20 V | 0.4 VA | 85 °C | -20 ░C | Through Hole | 10.41 mm | Standard | Epoxy Sealed Terminals | DP3T | 20 V | Gold | Polyester | 2 mm | 15000 Cycles | 15000 Cycles | 470 gf |
TE Connectivity AMP Connectors | Copper Alloy | On-On-On | Shorting (MBB) | PC Pin | 20 V | 0.4 VA | 85 °C | -20 ░C | Through Hole | 10.41 mm | Standard | Epoxy Sealed Terminals | 4P3T | 20 V | Gold | Polyester | 2 mm | 15000 Cycles | 15000 Cycles | 470 gf |
 TE Connectivity AMP Connectors | Copper Alloy | On-On-On | Shorting (MBB) | PC Pin | 20 V | 0.4 VA | 85 °C | -20 ░C | Right Angle Through Hole | 9.02 mm | Standard | Epoxy Sealed Terminals | 3P3T | 20 V | Gold |
