FUSE 600VDC 3AB PB-FREE 15A
Description
AI

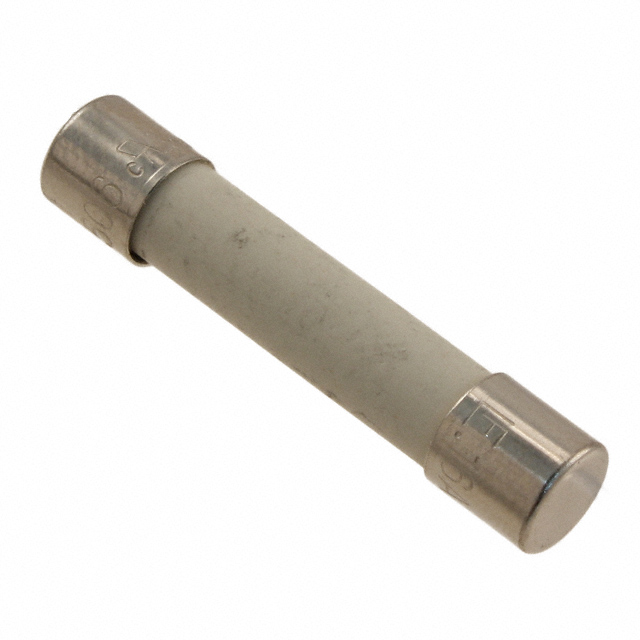

A 600Vdc-rated ceramic fuse with remarkable interrupting rating in a compact 6.3x32mm package, which is well suited for circuit protection in high DC energy applications.
Beta
⌘K
FUSE 600VDC 3AB PB-FREE 15A
FUSE 600VDC 3AB PB-FREE 15A
| Part | DC Cold Resistance | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Response Time | Fuse Type | Melting I²t | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Mounting Type | Approval Agency | Package / Case [y] | Package / Case [x] | Package / Case | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.008 Ohms | 1.25 in | 6.4 mm | 31.75 mm | 0.252 in | Fast Blow | Cartridge Ceramic | 61 | -55 C | 125 °C | 600 V | Requires Holder | CE cURus | 0.25 in | 3AB 3AG | 15 A |
