HWS150 Series

Catalog

AC/DC CONVERTER 3.3V 99W

Part	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Voltage - Isolation	Features	Approval Agency	Efficiency	Mounting Type	Type	Voltage - Output 1	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Applications
TDK Corporation HWS150A-3/HD	30 A	85 VAC 120 VDC	265 VAC 370 VDC	99 W	3000 V	Adjustable Output PFC Universal Input	CE	84 %	Chassis Mount	Open Frame Conformal Coated	3.3 V	1	3.23 in	6.3 in	82 mm	37 mm	1.46 in	160 mm	71 °C	-10 °C	ITE (Commercial)
TDK Corporation HWS150A-5/ME	30 A	85 VAC	265 VAC	150 W	3000 V	Adjustable Output DC Input Capable PFC Remote Sense Universal Input	CE	87 %	Chassis Mount	Open Frame	5 V	1	3.23 in	6.3 in	82 mm	42 mm	1.65 "	160 mm	70 °C	-10 °C	ITE (Commercial) Medical
TDK Corporation HWS150A-48/ME	3.3 A	85 VAC	265 VAC	150 W	3000 V	Adjustable Output DC Input Capable PFC Remote Sense Universal Input	CE	91 %	Chassis Mount	Open Frame	48 V	1	3.23 in	6.3 in	82 mm	42 mm	1.65 "	160 mm	70 °C	-10 °C	ITE (Commercial) Medical

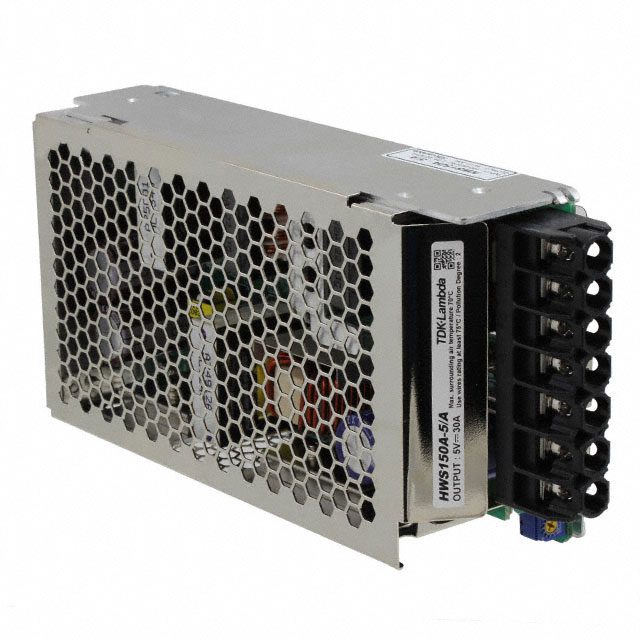

TDK Corporation HWS150A-5/A	30 A	85 VAC 120 VDC	264 VAC 370 VDC	150 W	3000 V	Adjustable Output Remote Sense Universal Input	CE	86 %	Chassis Mount	Enclosed	5 V	1	1.65 "	6.3 in	41.9 mm	82 mm	3.23 in	160 mm	70 °C	-10 °C	Industrial ITE (Commercial)
TDK Corporation HWS150A-48	3.3 A	85 VAC 120 VDC	264 VAC 370 VDC	150 W	3000 V	Adjustable Output Remote Sense Universal Input	CE	91 %	Chassis Mount	Open Frame	48 V	1	1.65 "	6.3 in	42 mm	82 mm	3.23 in	160 mm	70 °C	-10 °C	Industrial ITE (Commercial)

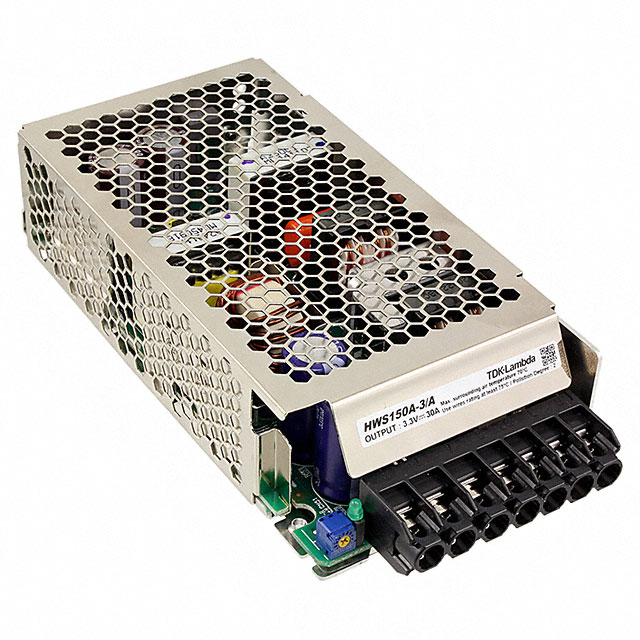

TDK Corporation HWS150A-3/A	30 A	85 VAC 120 VDC	264 VAC 370 VDC	150 W	3000 V	Adjustable Output Remote Sense Universal Input	CE	81 %	Chassis Mount	Enclosed	3.3 V	1	1.65 "	6.3 in	41.9 mm	82 mm	3.23 in	160 mm	70 °C	-10 °C	Industrial ITE (Commercial)
TDK Corporation HWS150A-12/A	13 A	85 VAC 120 VDC	264 VAC 370 VDC	150 W	3000 V	Adjustable Output Remote Sense Universal Input	CE	86 %	Chassis Mount	Enclosed	12 V	1	1.65 "	6.3 in	41.9 mm	82 mm	3.23 in	160 mm	70 °C	-10 °C	Industrial ITE (Commercial)
