796695 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
PLUGGABLE TERMINAL BLOCKS 3 POS TERMI-BLOK HDR 900 POLAR
| Part | Contact Material | Insulation Height [custom] | Insulation Height [custom] | Material Flammability Rating | Contact Tail Length [x] | Contact Tail Length [x] | Contact Mating Finish | Voltage - UL | Number of Levels | Pitch | Pitch | Color | Type | Mounting Type | Positions Per Level | Header Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Current - UL | Termination Style | Number of Positions | Positions Per Level [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brass | 0.285 in | 7.25 mm | UL94 V-0 | 3.4 mm | 0.134 in | Tin | 300 V | 1 | 3.5 mm | 0.138 " | Blue | Header Male Pins Shrouded (4 Side) | Through Hole | 3 | 90° Right Angle | -40 C | 110 °C | 11 A | Solder | ||
 TE Connectivity AMP Connectors | Brass | 0.285 in | 7.25 mm | UL94 V-0 | 3.4 mm | 0.134 in | Tin | 300 V | 1 | 3.5 mm | 0.138 " | Blue | Header Male Pins Shrouded (4 Side) | Through Hole | 13 | 90° Right Angle | -40 C | 110 °C | 11 A | Solder | 13 | |

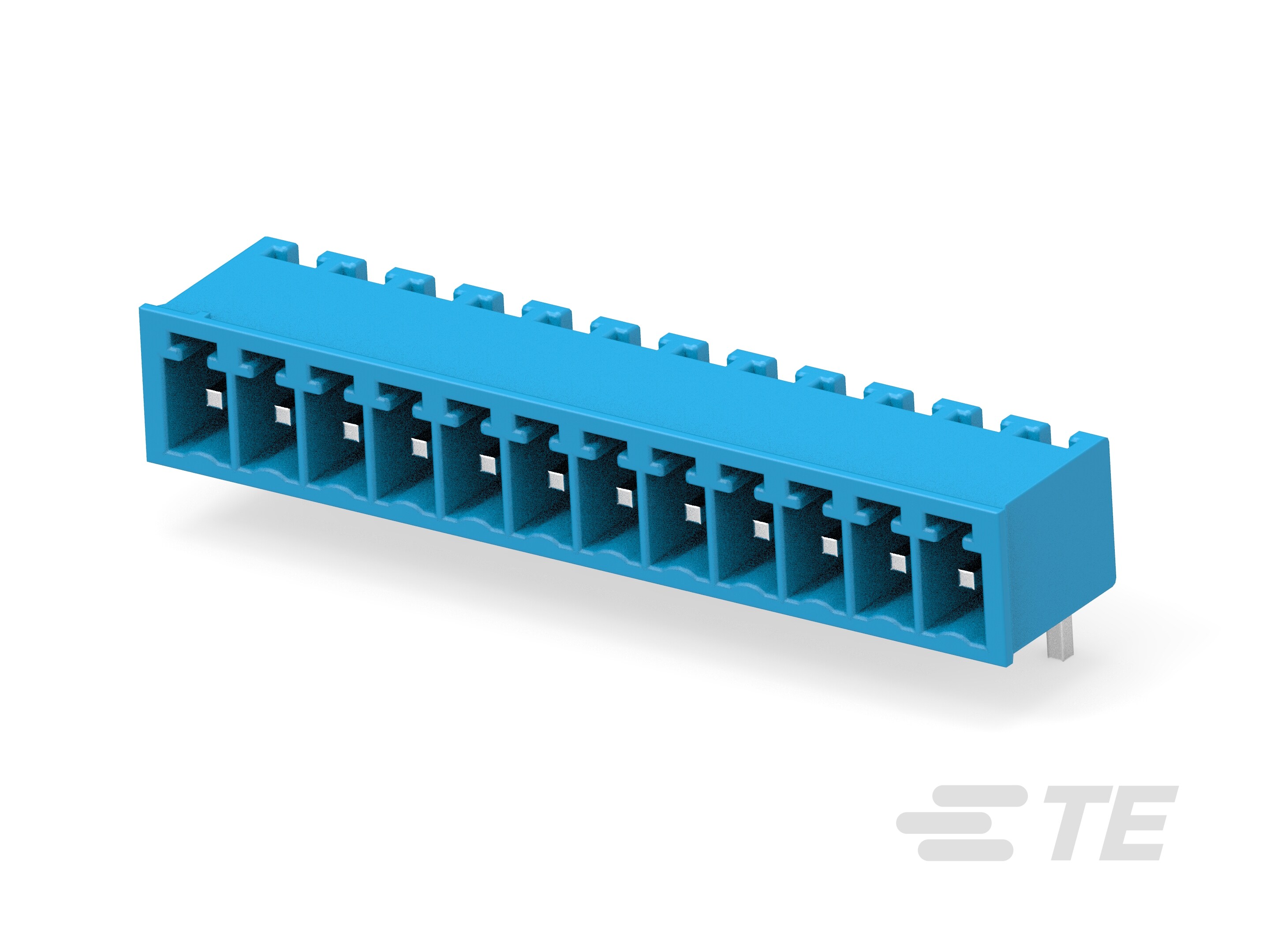

 TE Connectivity AMP Connectors | Brass | 0.285 in | 7.25 mm | UL94 V-0 | 3.4 mm | 0.134 in | Tin | 300 V | 1 | 3.5 mm | 0.138 " | Blue | Header Male Pins Shrouded (4 Side) | Through Hole | 12 | 90° Right Angle | -40 C | 110 °C | 11 A | Solder | 12 | |
 TE Connectivity AMP Connectors | Brass | 0.285 in | 7.25 mm | UL94 V-0 | 3.4 mm | 0.134 in | Tin | 300 V | 1 | 3.5 mm | 0.138 " | Blue | Header Male Pins Shrouded (4 Side) | Through Hole | 4 | 90° Right Angle | -40 C | 110 °C | 11 A | Solder | 4 | |

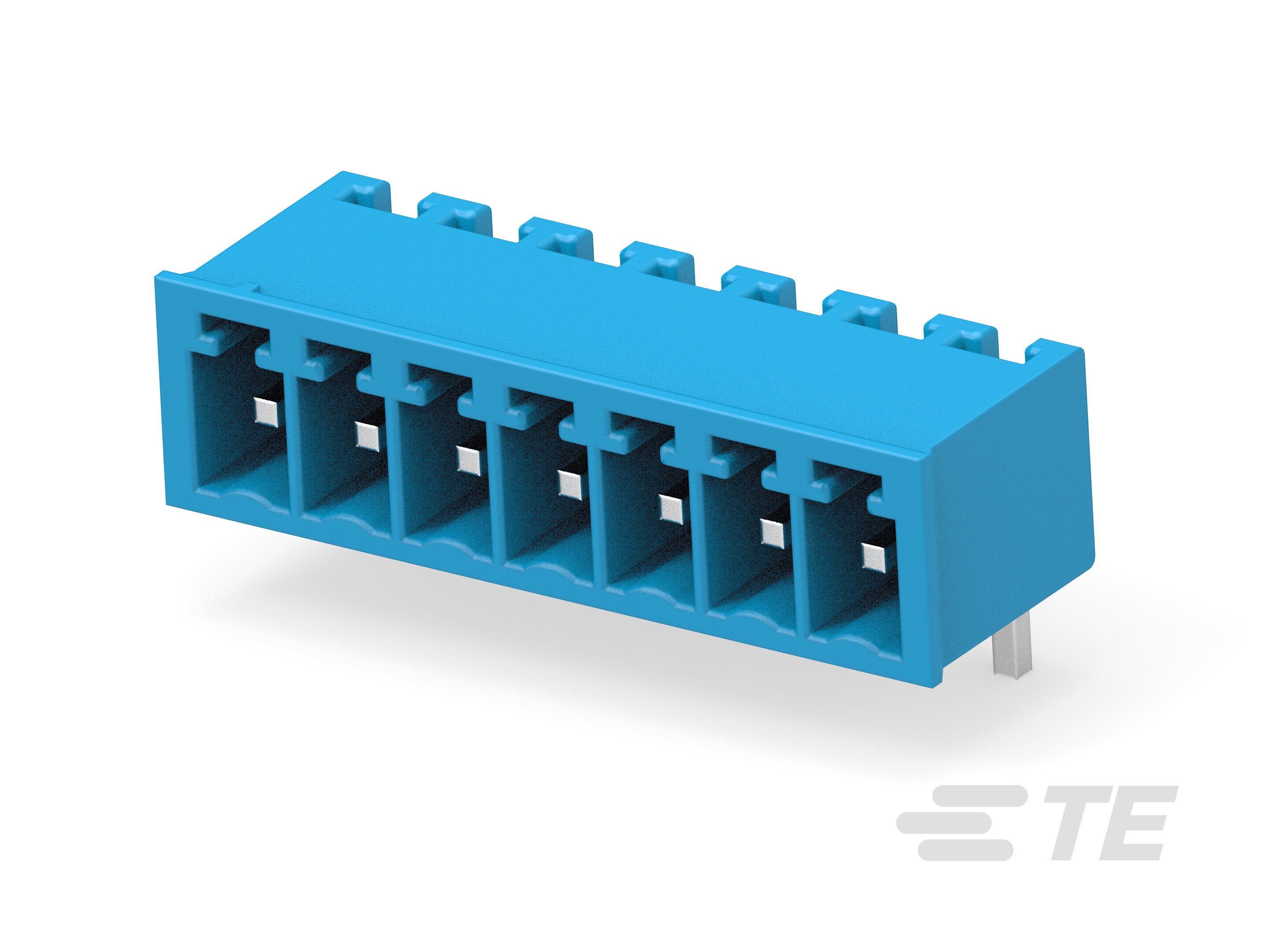

 TE Connectivity AMP Connectors | Brass | 0.285 in | 7.25 mm | UL94 V-0 | 3.4 mm | 0.134 in | Tin | 300 V | 1 | 3.5 mm | 0.138 " | Blue | Header Male Pins Shrouded (4 Side) | Through Hole | 90° Right Angle | -40 C | 110 °C | 11 A | Solder | 7 | 7 | |
TE Connectivity AMP Connectors | Brass | 0.285 in | 7.25 mm | UL94 V-0 | 3.4 mm | 0.134 in | Tin | 300 V | 1 | 3.5 mm | 0.138 " | Blue | Header Male Pins Shrouded (4 Side) | Through Hole | 11 | 90° Right Angle | -40 C | 110 °C | 11 A | Solder | 11 | |
TE Connectivity AMP Connectors | Brass | 0.285 in | 7.25 mm | UL94 V-0 | 3.4 mm | 0.134 in | Tin | 300 V | 1 | 3.5 mm | 0.138 " | Blue | Header Male Pins Shrouded (4 Side) | Through Hole | 2 | 90° Right Angle | -40 C | 110 °C | 11 A | Solder | 2 | |

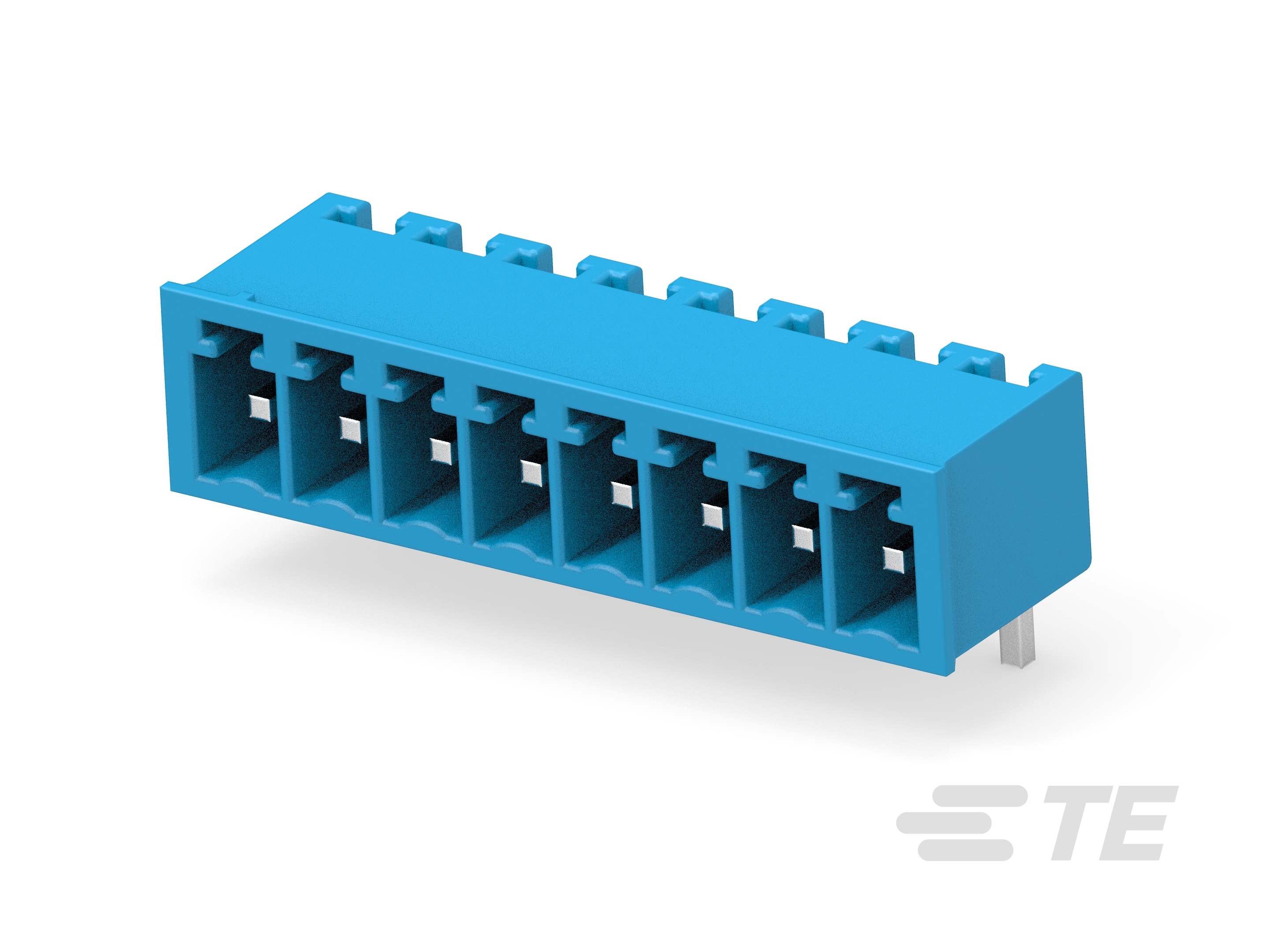

 TE Connectivity AMP Connectors | Brass | 0.285 in | 7.25 mm | UL94 V-0 | 3.4 mm | 0.134 in | Tin | 300 V | 1 | 3.5 mm | 0.138 " | Blue | Header Male Pins Shrouded (4 Side) | Through Hole | 8 | 90° Right Angle | -40 C | 110 °C | 11 A | Solder | 8 |
