333-031 Series
Manufacturer: EDAC Inc.
Beta
⌘K

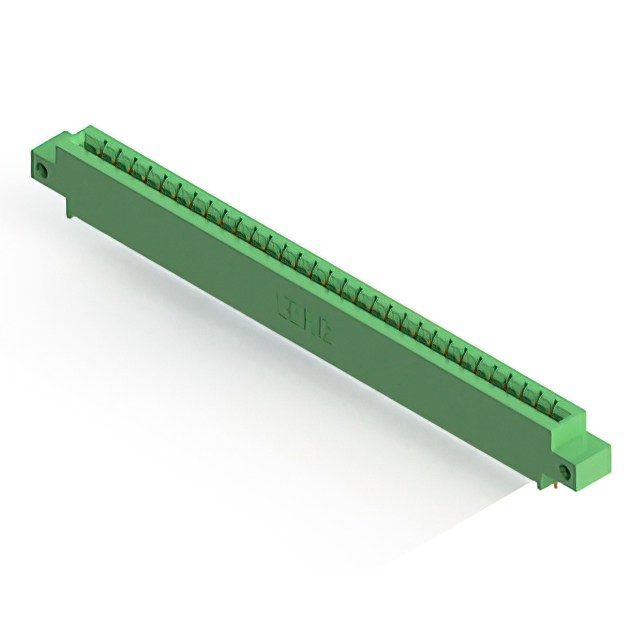

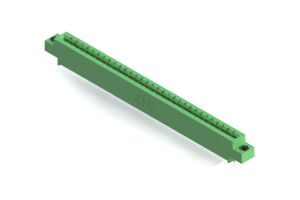

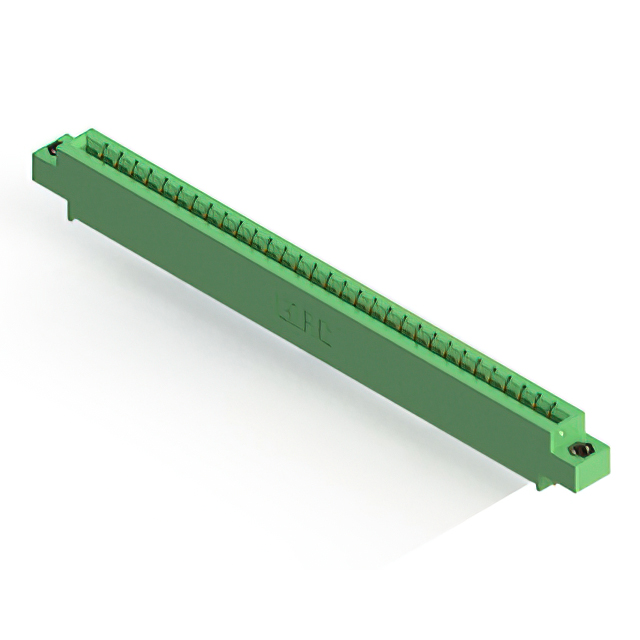

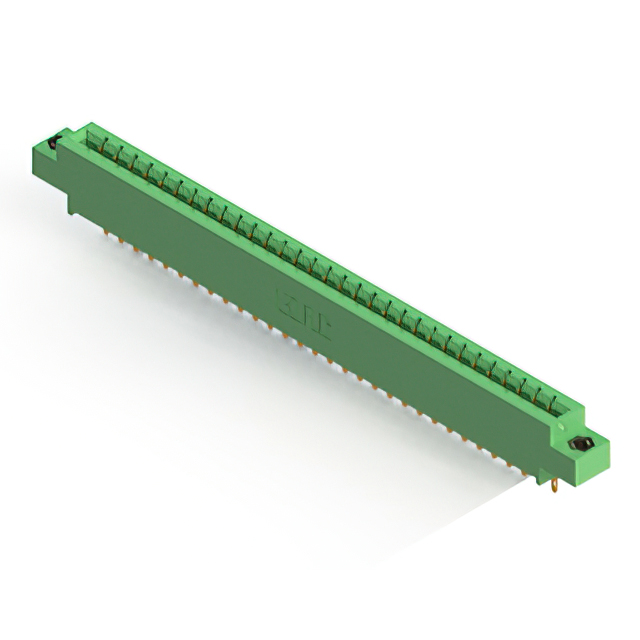

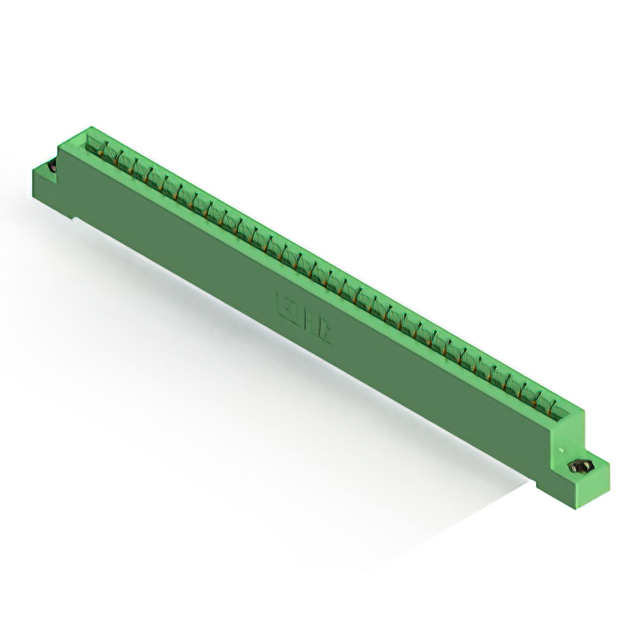

CONN EDGE SGL FMALE 31POS 0.156
| Part | Material - Insulation | Termination Rows | Contact Material | Card Type | Contact Finish | Pitch | Pitch | Number of Rows | Number of Positions [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Termination | Gender | Read Out | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Color | Mounting Type | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Non Specified - Single Edge | Gold | 3.96 mm | 0.156 in | 1 | 31 | -40 C | 105 ░C | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Solder | Female | Single | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Green | Through Hole | 31 |
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Non Specified - Single Edge | Gold | 3.96 mm | 0.156 in | 1 | 31 | -40 C | 105 ░C | 0.156 " | 3.96 mm | Solder | Female | Single | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Green | Through Hole | 31 | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Copper Alloy | Non Specified - Single Edge | Gold | 3.96 mm | 0.156 in | 1 | 31 | -40 C | 105 ░C | M3 Threaded Insert Top Mount Opening | Solder Eyelet(s) | Female | Single | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Green | Through Hole | 31 | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Non Specified - Single Edge | Gold | 3.96 mm | 0.156 in | 1 | 31 | -40 C | 105 ░C | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Solder | Female | Single | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Green | Through Hole | 31 |
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Non Specified - Single Edge | Gold | 3.96 mm | 0.156 in | 1 | 31 | -40 C | 105 ░C | M3 Threaded Insert Top Mount Opening | Solder | Female | Single | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Green | Through Hole | 31 | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Non Specified - Single Edge | Gold | 3.96 mm | 0.156 in | 1 | 31 | -40 C | 105 ░C | 4-40 Threaded Insert Top Mount Opening | Solder | Female | Single | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Green | Through Hole | 31 | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Non Specified - Single Edge | Gold | 3.96 mm | 0.156 in | 1 | 31 | -40 C | 105 ░C | M3 Threaded Insert Top Mount Opening | Wire Wrap | Female | Single | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Green | Through Hole | 31 | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Non Specified - Single Edge | Gold | 3.96 mm | 0.156 in | 1 | 31 | -40 C | 105 ░C | 0.156 " | 3.96 mm | Solder | Female | Single | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Green | Through Hole | 31 | |
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Non Specified - Single Edge | Gold | 3.96 mm | 0.156 in | 1 | 31 | -40 C | 105 ░C | M3 Threaded Insert Top Mount Opening | Wire Wrap | Female | Single | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Green | Through Hole | 31 | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | Copper Alloy | Non Specified - Single Edge | Gold | 3.96 mm | 0.156 in | 1 | 31 | -40 C | 105 ░C | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Wire Wrap | Female | Single | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Green | Through Hole | 31 |
