AYF330935 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

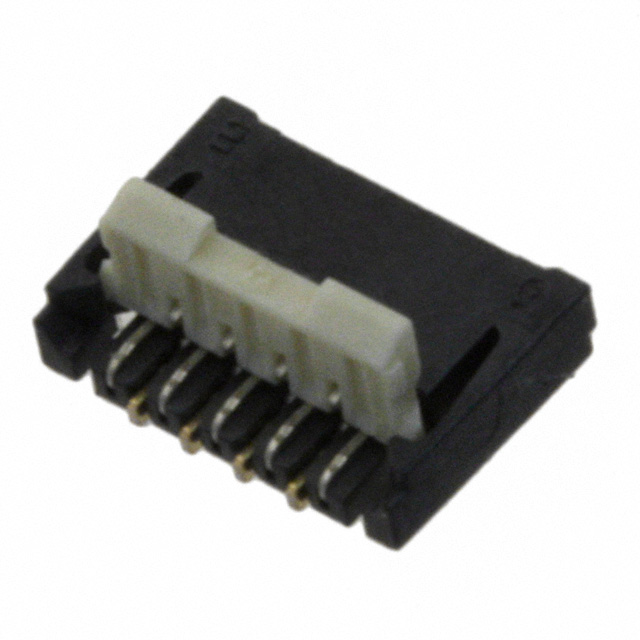

CONN FPC 9POS 0.3MM R/A
| Part | Current Rating (Amps) | Contact Finish Thickness | Mating Cycles | Pitch | Pitch | Contact Material | Locking Feature | Termination | Flat Flex Type | Material Flammability Rating | Height Above Board [z] | Height Above Board [z] | Voltage Rating | Contact Finish | Cable End Type | FFC, FCB Thickness [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Actuator Material | Connector/Contact Type | Mounting Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 200 mA | Flash | 20 | 0.012 in | 0.3 mm | Copper Alloy | Backlock Flip Lock | Solder | FPC | UL94 V-0 | 0.88 mm | 0.035 in | 50 V | Gold | Tapered | 0.2 mm | -55 C | 85 °C | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Contacts Top and Bottom | Right Angle Surface Mount | 9 |
