IPU80R1 Series

Manufacturer: INFINEON

Catalog

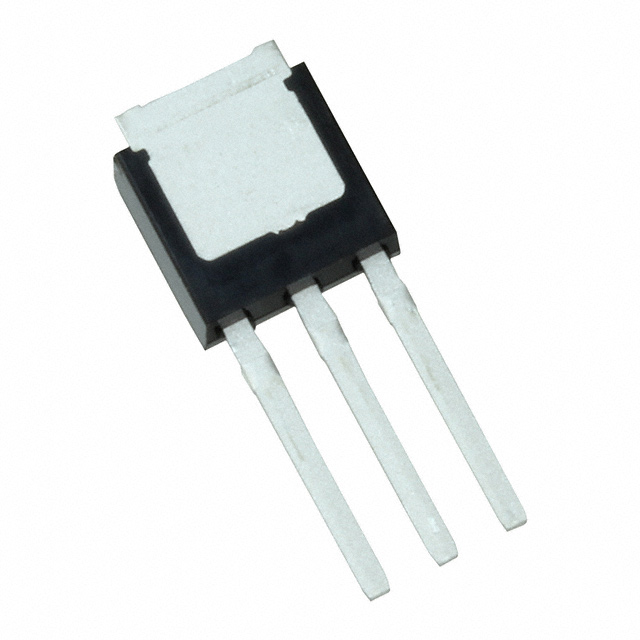

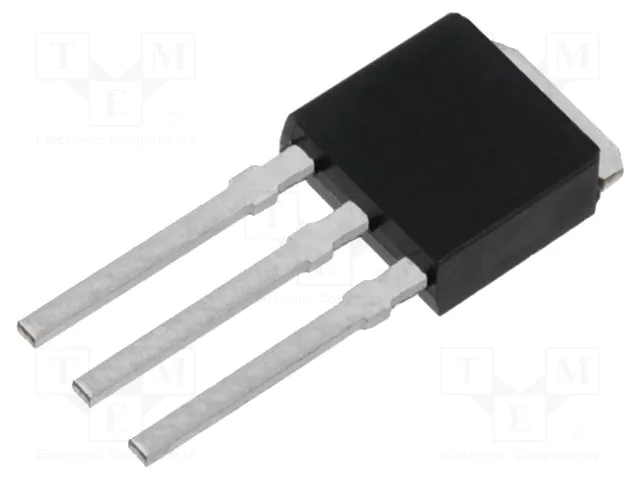

COOLMOS™ P7 N-CHANNEL SUPERJUNCTION MOSFET 800 V ; IPAK TO-251 PACKAGE; 1400 MOHM; PRICE/PERFORMANCE

Part	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	FET Type	Input Capacitance (Ciss) (Max) @ Vds	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id [Max]	Gate Charge (Qg) (Max) @ Vgs	Mounting Type	Technology	Power Dissipation (Max)	Vgs (Max)	Package / Case	Rds On (Max) @ Id, Vgs	Drive Voltage (Max Rds On, Min Rds On)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Vgs(th) (Max) @ Id
INFINEON IPU80R1K4P7AKMA1	4 A	150 °C	-55 °C	PG-TO251-3-21	N-Channel	250 pF	800 V	3.5 V	10.05 nC	Through Hole	MOSFET (Metal Oxide)	32 W	20 V	IPAK TO-251-3 Short Leads TO-251AA	1.4 Ohm	10 V
INFINEON IPU80R1K2P7AKMA1	4.5 A	150 °C	-55 °C	PG-TO251-3	N-Channel		800 V	3.5 V	11 nC	Through Hole	MOSFET (Metal Oxide)	37 W	20 V	IPAK TO-251-3 Short Leads TO-251AA	1.2 Ohm	10 V	300 pF
INFINEON IPU80R1K0CEAKMA1	5.7 A	150 °C	-55 °C	PG-TO251-3-341	N-Channel	785 pF	800 V		31 nC	Through Hole	MOSFET (Metal Oxide)	83 W	20 V	IPAK TO-251-3 Short Leads TO-251AA	950 mOhm	10 V		3.9 V
