PVD135 Series

Manufacturer: INFINEON

Catalog

SSR RELAY SPST-NO 550MA 0-100V

Part	Termination Style	Load Current	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage - Load [Max]	Mounting Type	Voltage - Input	Supplier Device Package	On-State Resistance (Max) [Max]	Package / Case	Package / Case	Package / Case [custom]	Package / Case [custom]

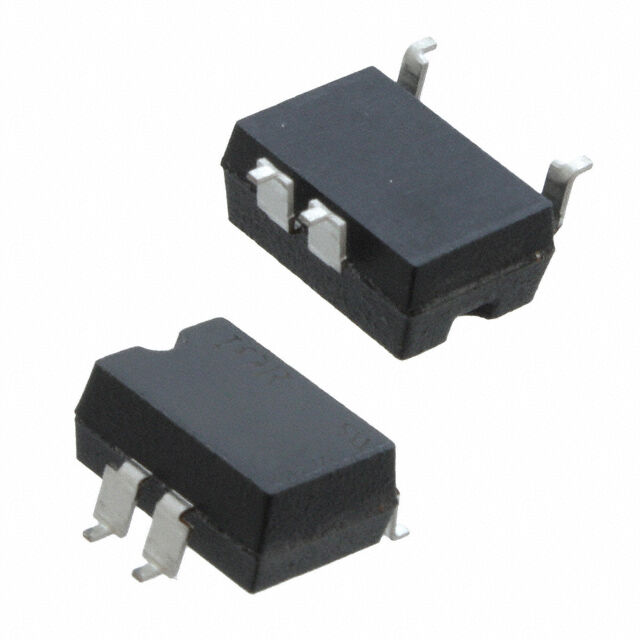

INFINEON PVD1354NS	Gull Wing	550 mA	DC	85 °C	-40 C	UL	100 V	Surface Mount	1.2 VDC	8-SMD	1.5 Ohms	0.3 in 4 PC Pad 7.62 mm	8-SMD

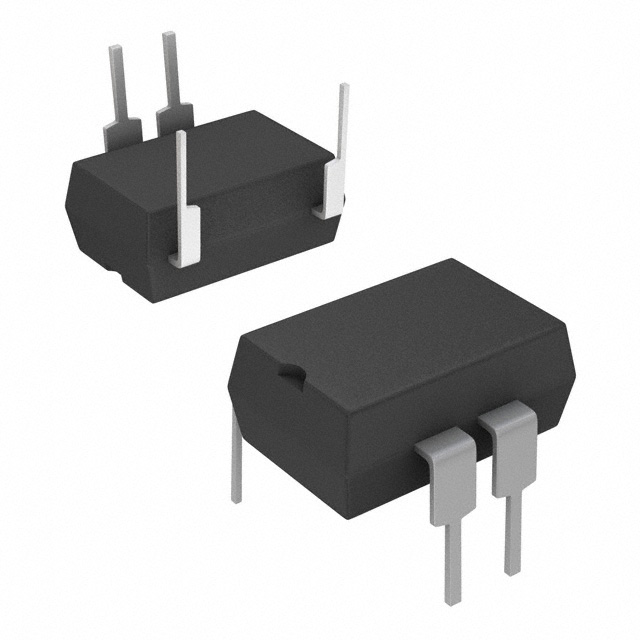

INFINEON PVD1354NPBF	PC Pin	550 mA	DC	85 °C	-40 C	UL	100 V	Through Hole	1.2 VDC	8-DIP Modified	1.5 Ohms	4 PC Pad	8-DIP	7.62 mm	0.3 in
INFINEON PVD1354N	PC Pin	550 mA	DC	85 °C	-40 C	UL	100 V	Through Hole	1.2 VDC	8-DIP Modified	1.5 Ohms	4 PC Pad	8-DIP	7.62 mm	0.3 in
INFINEON PVD1352	PC Pin	500 mA	DC	85 °C	-40 C	UL	100 V	Through Hole	1.2 VDC	8-DIP Modified	1.5 Ohms	4 PC Pad	8-DIP	7.62 mm	0.3 in
INFINEON PVD1352NS	Gull Wing	550 mA	DC	85 °C	-40 C	UL	100 V	Surface Mount	1.2 VDC	8-SMD	1.5 Ohms	0.3 in 4 PC Pad 7.62 mm	8-SMD
