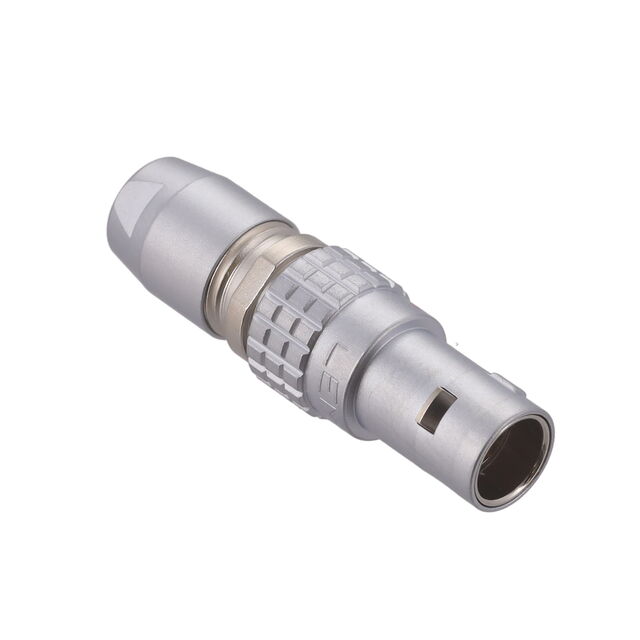

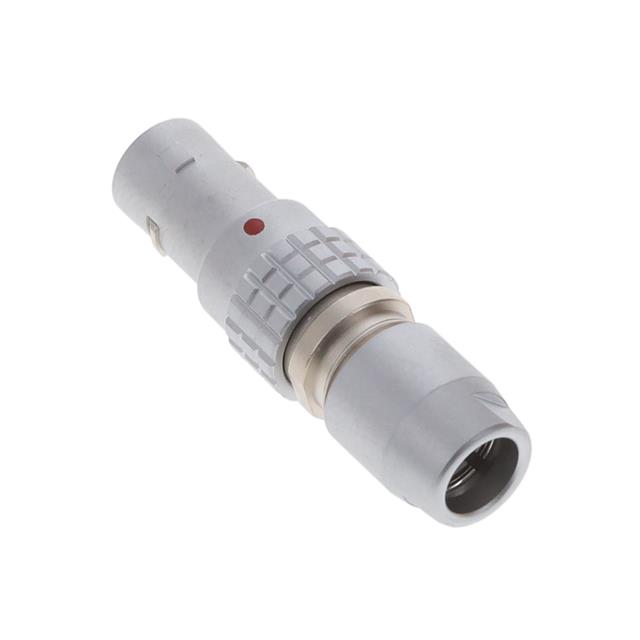

JGG.0B Series
Manufacturer: LEMO
Beta
⌘K
CONN PLUG MALE 6P GOLD SLDR CUP
| Part | Color | Insert Material | Primary Material | Orientation [custom] | Shielding | Connector Type | Backshell Material, Plating | Features | Fastening Type | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Number of Positions | Shell Size - Insert | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Shell Material | Current Rating (Amps) | Material Flammability Rating | Contact Finish - Mating | Mounting Type | Contact Material | Ingress Protection | Shell Finish | Operating Temperature [Min] | Operating Temperature [Max] | Cable Opening [Min] | Cable Opening [Max] | Shell Size - Insert [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Silver | Polyetheretherketone (PEEK) | Metal | G | Shielded | Plug Male Pins | Brass Chrome | Backshell | Push-Pull | 39.4 µin | 1 µm | 6 | 306 | 4.2 mm | 0.165 " | 0.126 " | 3.2 mm | Brass | 2.5 A | UL94 V-0 | Gold | Free Hanging (In-Line) | Brass | IP50 - Dust Protected | Chrome | -55 C | 250 °C | ||||
Silver | Polyetheretherketone (PEEK) | Metal | G | Shielded | Plug Male Pins | Brass Chrome | Backshell | Push-Pull | 39.4 µin | 1 µm | 6 | 306 | Brass | 2.5 A | UL94 V-0 | Gold | Free Hanging (In-Line) | Brass | IP50 - Dust Protected | Chrome | -55 C | 250 °C | 0.091 in 2.3 mm | 0.126 in 3.2 mm | ||||||
Silver | Polyetheretherketone (PEEK) | Metal | G | Shielded | Plug Male Pins | Brass Chrome | Backshell | Push-Pull | 39.4 µin | 1 µm | 9 | 309 | 5.2 mm | 4.2 mm | Brass | 2 A | UL94 V-0 | Gold | Free Hanging (In-Line) | Brass | IP50 - Dust Protected | Chrome | -55 C | 250 °C | 0.165 " | 0.205 in | ||||
Silver | Polyetheretherketone (PEEK) | Metal | G | Shielded | Plug Male Pins | Brass Chrome | Backshell | Push-Pull | 39.4 µin | 1 µm | 7 | 5.2 mm | 4.2 mm | Brass | 2.5 A | UL94 V-0 | Gold | Free Hanging (In-Line) | Brass | IP50 - Dust Protected | Chrome | -55 C | 250 °C | 0.165 " | 0.205 in | 307 | ||||
Silver | Polyetheretherketone (PEEK) | Metal | G | Shielded | Plug Male Pins | Brass Chrome | Backshell | Push-Pull | 39.4 µin | 1 µm | 2 | 302 | 5.2 mm | 4.2 mm | Brass | 10 A | UL94 V-0 | Gold | Free Hanging (In-Line) | Brass | IP50 - Dust Protected | Chrome | -55 C | 250 °C | 0.165 " | 0.205 in | ||||
Silver | Polyetheretherketone (PEEK) | Metal | G | Shielded | Plug Male Pins | Brass Chrome | Backshell | Push-Pull | 39.4 µin | 1 µm | 2 | 302 | Brass | 10 A | UL94 V-0 | Gold | Free Hanging (In-Line) | Brass | IP50 - Dust Protected | Chrome | -55 C | 250 °C | 0.091 in 2.3 mm | 0.126 in 3.2 mm | ||||||
Silver | Polyetheretherketone (PEEK) | Metal | G | Shielded | Plug Male Pins | Brass Chrome | Backshell | Push-Pull | 39.4 µin | 1 µm | 6 | 306 | 5.2 mm | 4.2 mm | Brass | 2.5 A | UL94 V-0 | Gold | Free Hanging (In-Line) | Brass | IP50 - Dust Protected | Chrome | -55 C | 250 °C | 0.165 " | 0.205 in | ||||
Silver | Polyetheretherketone (PEEK) | Metal | G | Shielded | Plug Male Pins | Brass Chrome | Backshell | Push-Pull | 39.4 µin | 1 µm | 303 | 4.2 mm | 0.165 " | 0.126 " | 3.2 mm | Brass | 8 A | UL94 V-0 | Gold | Free Hanging (In-Line) | Brass | IP50 - Dust Protected | Chrome | -55 C | 250 °C | |||||
Silver | Polyetheretherketone (PEEK) | Metal | G | Shielded | Plug Male Pins | Brass Chrome | Backshell | Push-Pull | 39.4 µin | 1 µm | 5 | 305 | 2.2 mm | 1.4 mm | Brass | 6.5 A | UL94 V-0 | Gold | Free Hanging (In-Line) | Brass | IP50 - Dust Protected | Chrome | -55 C | 250 °C | 0.055 in | 0.087 " | ||||
Silver | Polyetheretherketone (PEEK) | Metal | G | Shielded | Plug Male Pins | Brass Chrome | Backshell | Push-Pull | 39.4 µin | 1 µm | 5 | 305 | 5.2 mm | 4.2 mm | Brass | 6.5 A | UL94 V-0 | Gold | Free Hanging (In-Line) | Brass | IP50 - Dust Protected | Chrome | -55 C | 250 °C | 0.165 " | 0.205 in |
