LS100 Series

Catalog

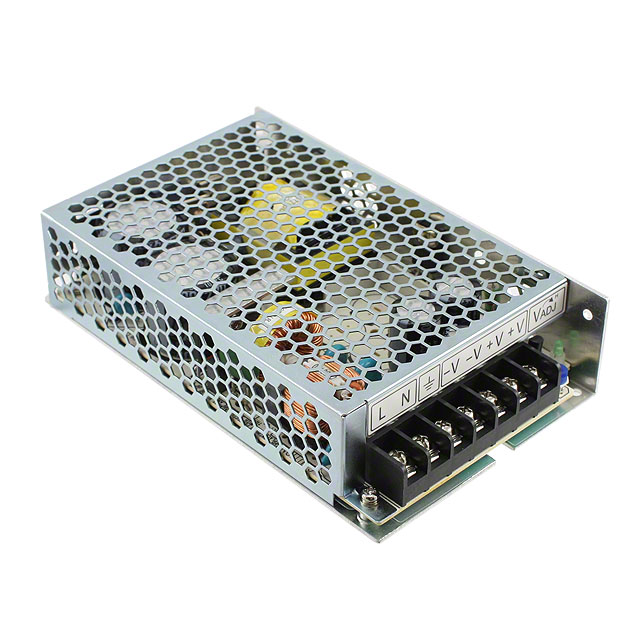

AC/DC ENCLOSED POWER SUPPLY (PSU), ITE, 1 OUTPUTS, 100 W, 24 VDC, 4.5 A

Part	Approval Agency	Number of Outputs	Efficiency	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Voltage - Output 1	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Voltage - Isolation	Current - Output 1
TDK Corporation LS100-24/BML	CE	1	86 %	ITE (Commercial)	70 °C	-25 °C	Enclosed	264 VAC	88 VAC	Chassis Mount	24 V	Adjustable Output DC Input Capable Universal Input	38.1 mm	6.3 in	160 mm	3.8 in	1.5 in	96.5 mm	100 W	3000 V	4.5 A
TDK Corporation LS100-5	CE	1	79 %	ITE (Commercial)	70 °C	-25 °C	Enclosed	264 VAC	88 VAC	Chassis Mount	5 V	Adjustable Output DC Input Capable Universal Input	38.1 mm	6.3 in	160 mm	3.8 in	1.5 in	96.5 mm	100 W	3000 V	16 A
TDK Corporation LS100-15	CE	1	84 %	ITE (Commercial)	70 °C	-25 °C	Enclosed	264 VAC	88 VAC	Chassis Mount	15 V	Adjustable Output DC Input Capable Universal Input	38.1 mm	6.3 in	160 mm	3.8 in	1.5 in	96.5 mm	100 W	3000 V	7 A
TDK Corporation LS100-24	CE	1	86 %	ITE (Commercial)	70 °C	-25 °C	Enclosed	264 VAC	88 VAC	Chassis Mount	24 V	Adjustable Output DC Input Capable Universal Input	38.1 mm	6.3 in	160 mm	3.8 in	1.5 in	96.5 mm	100 W	3000 V	4.5 A
TDK Corporation LS100-12	CE	1		ITE (Commercial)	70 °C	-25 °C	Enclosed	264 VAC	88 VAC	Chassis Mount	12 V	Adjustable Output DC Input Capable Universal Input	38.1 mm	6.3 in	160 mm	3.8 in	1.5 in	96.5 mm	100 W	3000 V
