62.32.8 Series

Catalog

RELAY GEN PURPOSE DPDT 16A 230V

Part	Coil Resistance	Mounting Type	Coil Current	Coil Type	Operate Time	Release Time	Switching Voltage [Max]	Contact Form	Termination Style	Termination Style	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Contact Rating (Current)	Features	Must Operate Voltage	Load - Max Switching	Relay Type	Must Release Voltage	Contact Material
Finder Relays, Inc. 62.32.8.230.0050	7.25 kOhms	Socketable	10.5 mA	Non Latching	11 ms	4 ms	400 VAC	DPDT (2 Form C)	0.187 in 4.7 mm	Plug In Quick Connect	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	70 °C	-40 C	230 VAC	16 A	Lighted Indicator Test Button	184 VAC	6400 VA	General Purpose	46 VAC	Silver Cadmium Oxide (AgCdO)
Finder Relays, Inc. 62.32.8.120.0006	1.94 kOhms	Socketable	18.6 mA	Non Latching	11 ms	4 ms	400 VAC	DPDT (2 Form C)	0.187 in 4.7 mm	Plug In Quick Connect	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	70 °C	-40 C	120 VAC	16 A		96 VAC	6400 VA	General Purpose	24 VAC	Silver Cadmium Oxide (AgCdO)
Finder Relays, Inc. 62.32.8.120.0000	1.94 kOhms	Socketable	18.6 mA	Non Latching	11 ms	4 ms	400 VAC	DPDT (2 Form C)	0.187 in 4.7 mm	Plug In Quick Connect	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	70 °C	-40 C	120 VAC	16 A		96 VAC	6400 VA	General Purpose	24 VAC	Silver Cadmium Oxide (AgCdO)
Finder Relays, Inc. 62.32.8.208.0006		Socketable		Non Latching	11 ms	4 ms	400 VAC	DPDT (2 Form C)	0.187 in 4.7 mm	Plug In Quick Connect	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	70 °C	-40 C	208 VAC	16 A		166.4 VAC	6400 VA	General Purpose	41.6 VAC	Silver Cadmium Oxide (AgCdO)
Finder Relays, Inc. 62.32.8.240.0030	8.5 kOhms	Socketable	9.2 mA	Non Latching	11 ms	4 ms	400 VAC	DPDT (2 Form C)	0.187 in 4.7 mm	Plug In Quick Connect	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	70 °C	-40 C	240 VAC/DC	16 A	Lighted Indicator	192 VAC	6400 VA	General Purpose	48 VAC	Silver Cadmium Oxide (AgCdO)
Finder Relays, Inc. 62.32.8.012.0000	19 Ohms	Socketable	183 mA	Non Latching	11 ms	4 ms	400 VAC	DPDT (2 Form C)	0.187 in 4.7 mm	Plug In Quick Connect	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	70 °C	-40 C	12 VAC	16 A		9.6 VAC/DC	6400 VA	General Purpose	2.4 VAC/DC	Silver Cadmium Oxide (AgCdO)

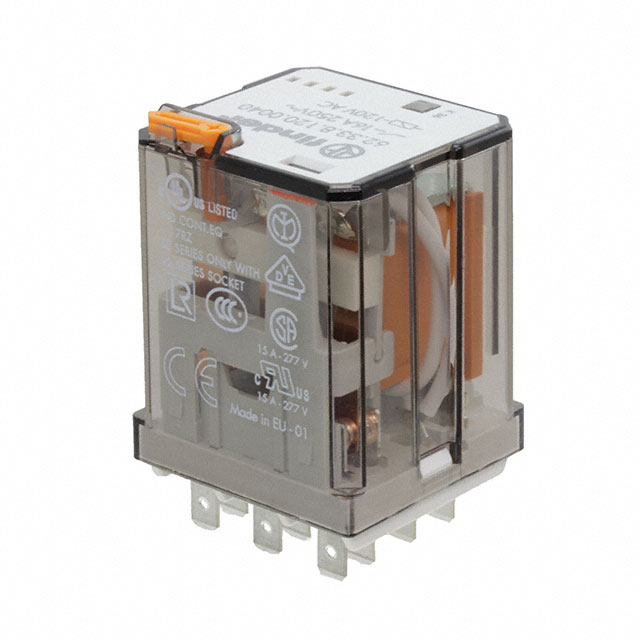

Finder Relays, Inc. 62.32.8.120.0040	1.94 kOhms	Socketable	18.6 mA	Non Latching	11 ms	4 ms	400 VAC	DPDT (2 Form C)	0.187 in 4.7 mm	Plug In Quick Connect	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	70 °C	-40 C	120 VAC	16 A	Mechanical Indicator Test Button	96 VAC	6400 VA	General Purpose	24 VAC	Silver Cadmium Oxide (AgCdO)
Finder Relays, Inc. 62.32.8.024.0030	74 Ohms	Socketable	90 mA	Non Latching	11 ms	4 ms	400 VAC	DPDT (2 Form C)	0.187 in 4.7 mm	Plug In Quick Connect	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	70 °C	-40 C	24 VAC	16 A	Lighted Indicator	19.2 VAC	6400 VA	General Purpose	4.8 VAC	Silver Cadmium Oxide (AgCdO)
Finder Relays, Inc. 62.32.8.120.0300	1.35 kOhms	Socketable	24 mA	Non Latching	15 ms	3 ms	400 VAC	DPST-NO (2 Form A)	0.187 in 4.7 mm	Plug In Quick Connect	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	50 °C	-40 C	120 VAC	16 A		106 VAC	6400 VA	General Purpose	24 VAC	Silver Cadmium Oxide (AgCdO)
Finder Relays, Inc. 62.32.8.120.0030	1.94 kOhms	Socketable	18.6 mA	Non Latching	11 ms	4 ms	400 VAC	DPDT (2 Form C)	0.187 in 4.7 mm	Plug In Quick Connect	CCC CE CSA cURus EAC ENEC RINA UKCA VDE	70 °C	-40 C	120 VAC	16 A	Lighted Indicator	96 VAC	6400 VA	General Purpose	24 VAC	Silver Cadmium Oxide (AgCdO)
