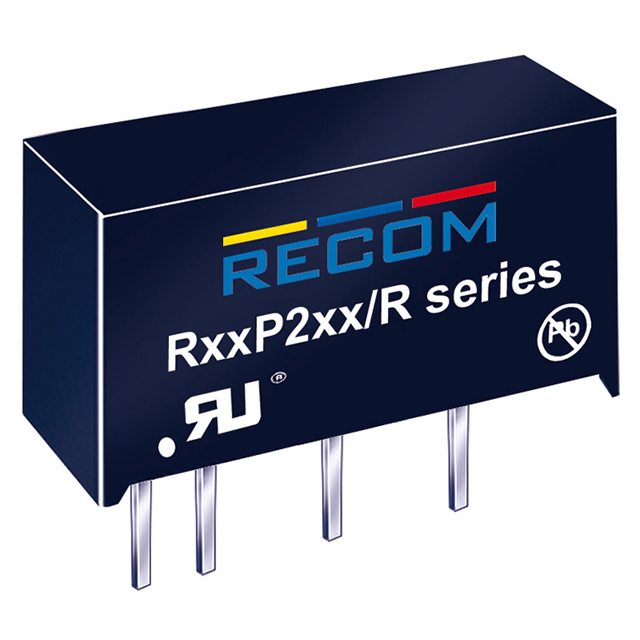

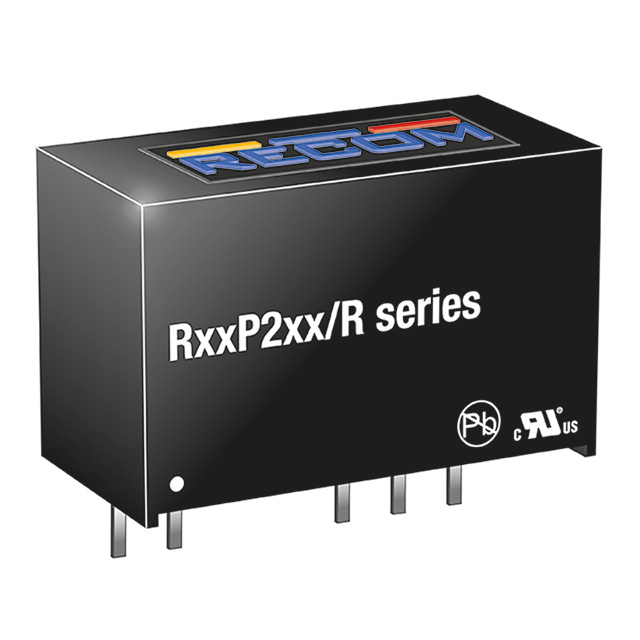

RxxP2xx/R Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC 6.4KV UNREG 5VIN 12VOUT

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Output 1	Applications	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Type	Power (Watts)	Mounting Type	Efficiency	Number of Outputs	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Max]	Features	Voltage - Output 2	Current - Output (Max)
Recom Power R05P212S/R6.4	85 °C	-40 C	7-SIP Module 4 Leads	12 V	ITE (Commercial) Medical	5.5 V	4.5 V	Isolated Module	2 W	Through Hole	87 %	1	6.4 kV	12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "	167 mA
Recom Power R15P212S/P/X2/R8	85 °C	-40 C	7-DIP Module 4 Leads	12 V	ITE (Commercial) Medical	16.5 V	13.5 V	Isolated Module	2 W	Through Hole	87 %	1	8 kV	12.5 mm	0.39 in	9.8 mm	19.5 mm	0.77 in	0.49 "	167 mA	SCP
Recom Power R05P209S/P/R6.4	85 °C	-40 C	7-SIP Module 4 Leads	9 V	ITE (Commercial) Medical	5.5 V	4.5 V	Isolated Module	2 W	Through Hole	87 %	1	6.4 kV	12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "	222 mA	SCP
Recom Power R12P209S/P/R6.4	85 °C	-40 C	7-SIP Module 4 Leads	9 V	ITE (Commercial) Medical	13.2 V	10.8 V	Isolated Module	2 W	Through Hole	87 %	1	6.4 kV	12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "	222 mA	SCP
Recom Power R05P205S/P/R6.4	85 °C	-40 C	7-SIP Module 4 Leads	5 V	ITE (Commercial) Medical	5.5 V	4.5 V	Isolated Module	2 W	Through Hole	84 %	1	6.4 kV	12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "	400 mA	SCP

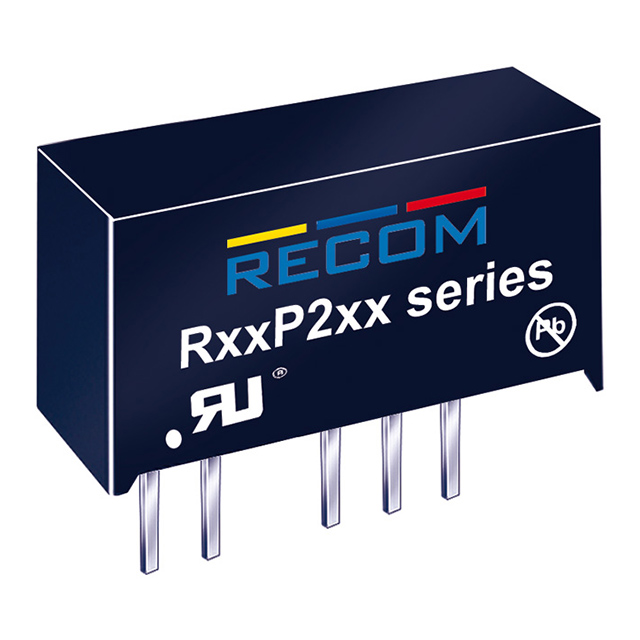

Recom Power R24P209D/R6.4	85 °C	-40 C	7-SIP Module 5 Leads	9 V	ITE (Commercial) Medical	26.4 V	21.6 V	Isolated Module	2 W	Through Hole	87 %	2	6.4 kV	12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "			-9 V	111 mA
Recom Power R12P215D/R6.4	85 °C	-40 C	7-SIP Module 5 Leads	15 V	ITE (Commercial) Medical	13.2 V	10.8 V	Isolated Module	2 W	Through Hole	88 %	2	6.4 kV	12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "			-15 V	66 mA
Recom Power R24P209S/P/X2/R6.4	85 °C	-40 C	7-SIP Module 4 Leads	9 V	ITE (Commercial) Medical	26.4 V	21.6 V	Isolated Module	2 W	Through Hole	87 %	1	6.4 kV	12.5 mm	0.39 in	9.8 mm	19.5 mm	0.77 in	0.49 "	222 mA	SCP
Recom Power R05P212S/P/X2/R8	85 °C	-40 C	7-SIP Module 4 Leads	12 V	ITE (Commercial) Medical	5.5 V	4.5 V	Isolated Module	2 W	Through Hole	87 %	1	8 kV	12.5 mm	0.39 in	9.8 mm	19.5 mm	0.77 in	0.49 "	167 mA	SCP

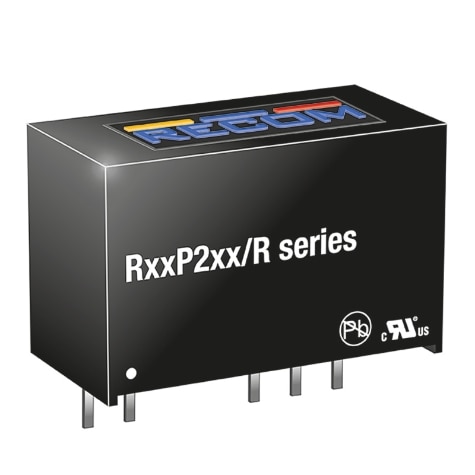

Recom Power R05P205S/R6.4	85 °C	-40 C	7-SIP Module 4 Leads	5 V	ITE (Commercial) Medical	5.5 V	4.5 V	Isolated Module	2 W	Through Hole	84 %	1	6.4 kV	12.5 mm	0.39 in	9.8 mm	19.7 mm	0.77 in	0.49 "	400 mA
