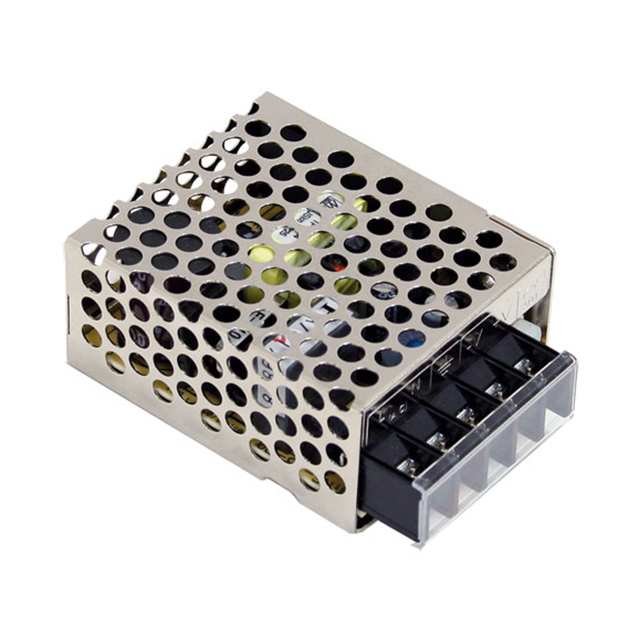

RS-15 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 48V 15W
| Part | Minimum Load Required | Voltage - Isolation | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Current - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Voltage - Input [Min] | Voltage - Input [Max] | Type | Voltage - Output 1 | Mounting Type | Applications | Features | Approval Agency | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 3000 V | 62.5 mm | 2.46 " | 51 mm | 1.1 in | 28 mm | 2.01 " | 313 mA | 70 °C | -20 °C | 1 | 85 VAC 120 VDC | 264 VAC 370 VDC | Enclosed | 48 V | Chassis Mount | ITE (Commercial) | Adjustable Output Universal Input | CB CCC CE cURus TUV | 15 W |
