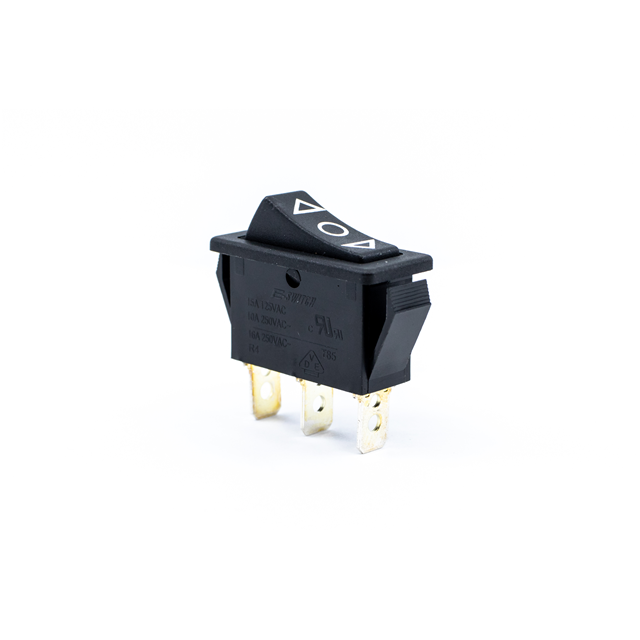

R4DBLKBL Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROCKER SPDT 15A 125V
| Part | Mechanical Life | Electrical Life | Actuator Type | Mounting Type | Approval Agency | Color - Actuator/Cap | Circuit | Current Rating (Amps) | Termination Style | Actuator Marking | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Switch Function | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 30000 Steps | 6000 Cycles | Concave (Curved) | Panel Mount Snap-In | UL | Black | SPDT | 15 A | Quick Connect - 0.250" (6.3mm) | Triangular Arrows with O | 55 °C | -20 ░C | 125 V | On-Off-On | 30.1 mm | 11.1 mm |
