AP2012 Series

Catalog

SENSOR PHOTO 940NM TOP VIEW 0805

Part	Current - Dark (Id) (Max) [Max]	Orientation	Power - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Package / Case	Viewing Angle	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Lens Color	Supplier Device Package	Millicandela Rating	Wavelength - Peak	Current - Test	Configuration	Lens Size [y]	Lens Size [x]	Lens Transparency	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Height (Max) [z]	Lens Style	Color	Radiant Intensity (Ie) Min @ If	Type	Current - DC Forward (If) (Max)

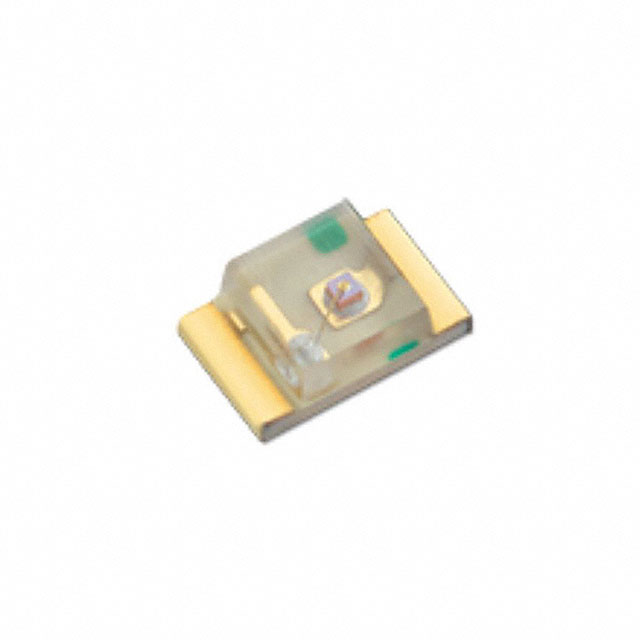

Kingbright AP2012P3C-P22	100 nA	Top View	100 mW	85 °C	-40 C	940 nm	0805	160 °	30 V	Surface Mount
Kingbright AP2012EC							0805	120 °		Surface Mount	Colorless	SMD	15 mcd	627 nm	20 mA	Standard	1.25 mm	1.3 mm	Clear	2 mm	1.25 mm	625 nm	2 V	1.1 mm	Rectangle with Flat Top	Red

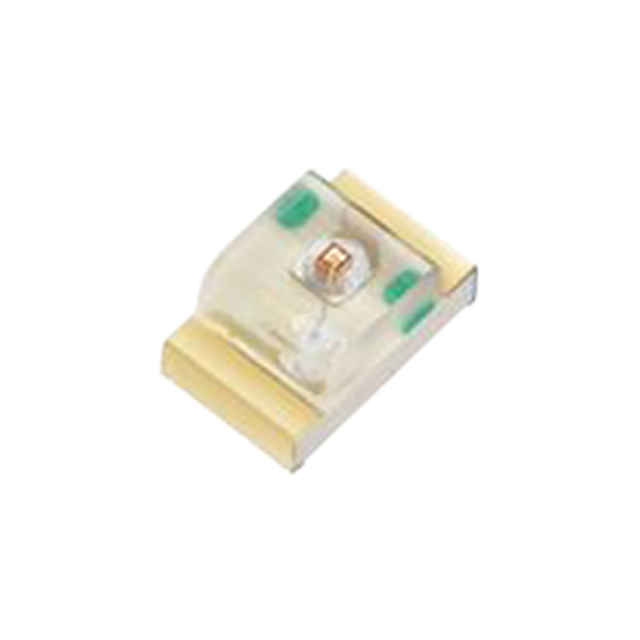

Kingbright AP2012SF4C-P22		Top View		85 °C	-40 C	880 nm	0805	160 °		Surface Mount													1.3 V				0.8 mW/sr	Infrared (IR)	50 mA

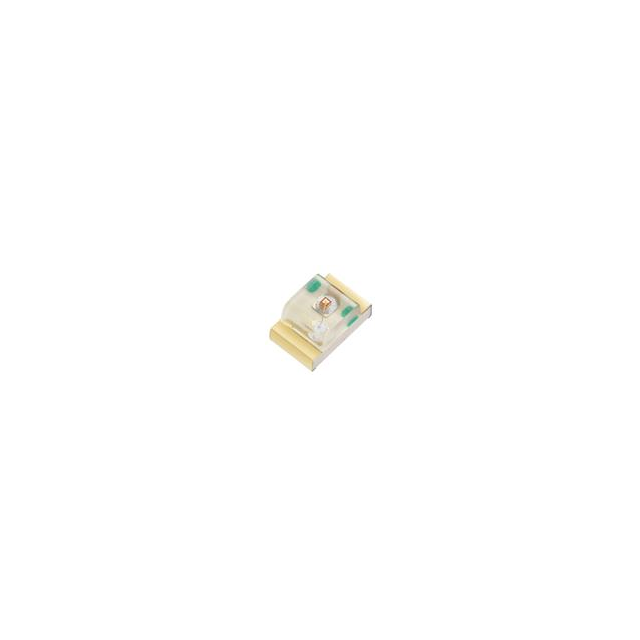

Kingbright AP2012SF4C		Top View		85 C	-40 ¯C	880 nm	2012 (5030 Metric)	120 °		Surface Mount													1.3 V				0.8 mW/sr	Infrared (IR)	50 mA
