BHDL-14 Series
Manufacturer: Essentra Components
Beta
⌘K

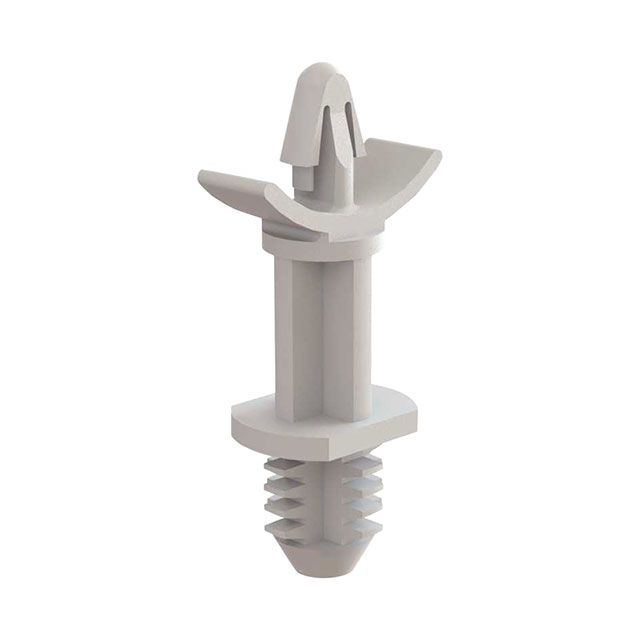

BRD SPT SNAP LOCK BARBED 7/8"
| Part | Features | Between Board Height | Between Board Height | Between Board Height | Length - Overall [x] | Length - Overall [x] | Mounting Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Support Hole Diameter | Support Hole Diameter | Support Hole Diameter | Support Panel Thickness [Min] | Support Panel Thickness [Min] | Support Panel Thickness [Max] | Support Panel Thickness [Max] | Material | Mounting Panel Thickness | Mounting Panel Thickness | Mounting Panel Thickness | Holding Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | Blind Hole Mating | 22.23 mm | 0.875 in | 0.875 in | 1.547 in | 39.3 mm | Barbed Fastener | 0.3125 in | 0.312 in | 7.92 mm | 3.96 mm | 5 32" | 0.156 in | 0.031 in | 0.79 mm | 0.078 in | 1.98 mm | Nylon | 1/4 | 0.25 in | 6.35 mm | Snap Lock |
