A 14-LC Series
Manufacturer: Assmann WSW Components
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

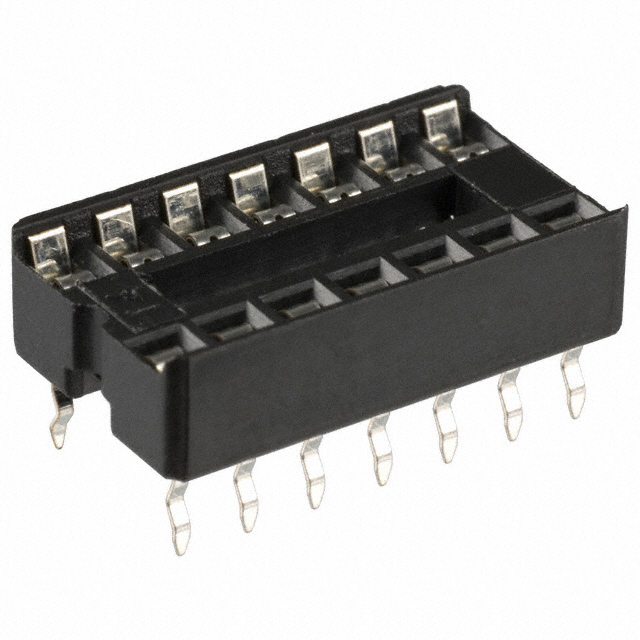

CONN IC DIP SOCKET 14POS TIN
| Part | Row Spacing | Type | Number of Positions or Pins (Grid) | Grid Columns | Grid Rows | Termination | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish - Mating | Mounting Type | Pitch - Post | Features | Contact Finish - Post | Contact Material - Mating | Pitch - Mating | Housing Material | Contact Material - Post | Current Rating | Termination Post Length | Material Flammability Rating | Contact Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | 0.3 in | 0.3" (7.62mm) Row Spacing DIP | 14 | 7 | 2 | Solder | -55 °C | 85 °C | Tin | Through Hole | 0.1 in | Open Frame | Tin | Phosphor Bronze | 0.1 in | PBT Polybutylene Terephthalate | Phosphor Bronze | 1 A | 0.124 in | UL94 V-0 | 30 mOhm |
