TPS65200 Series

Li+ Battery Charger With WLED Driver and Current Shunt Monitor

Catalog

Li+ Battery Charger With WLED Driver and Current Shunt Monitor

Part	Mounting Type	Package / Case	Number of Cells	Current - Charging	Voltage - Supply (Max) [Max]	Battery Pack Voltage	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Battery Chemistry [custom]	Interface	Fault Protection	Charge Current - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Programmable Features

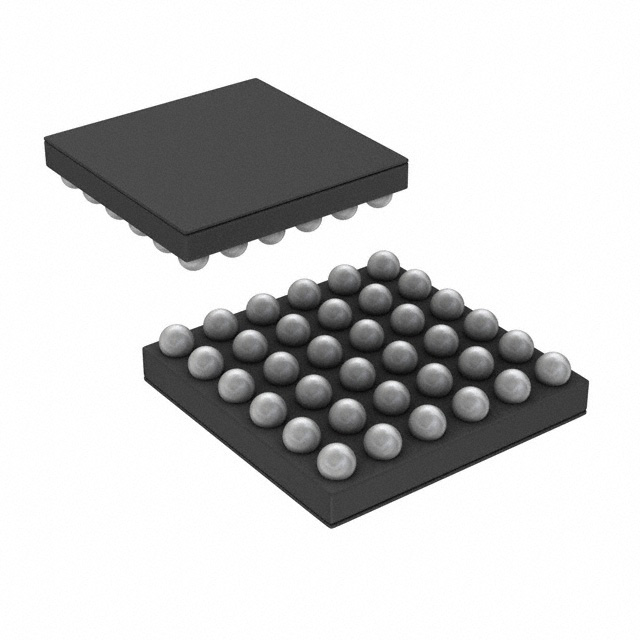

Texas Instruments TPS65200YFFR	Surface Mount	36-UFBGA DSBGA	1	Constant - Programmable	6 V	4.44 V	36-DSBGA	2.63	2.46	Lithium Ion/Polymer	I2C	Over Temperature Over Voltage	1.25 A	85 C	-40 ¯C	Current Timer
Texas Instruments TPS65200YFFT	Surface Mount	36-UFBGA DSBGA	1	Constant - Programmable	6 V	4.44 V	36-DSBGA	2.63	2.46	Lithium Ion/Polymer	I2C	Over Temperature Over Voltage	1.25 A	85 C	-40 ¯C	Current Timer

Catalog

Li+ Battery Charger With WLED Driver and Current Shunt Monitor

Description

The TPS65200 device integrates a high-efficiency, USB-friendly switched-mode charger with OTG support for single-cell Li-ion and Li-polymer batteries, D+D– detection, a 50-mA fixed-voltage LDO, a high-efficiency WLED boost converter, and high-accuracy current-shunt monitor into a single chip. The TPS65200 comes in a tiny, 2.8-mm × 2.6-mm, 36-pin, 0.4-mm pitch die size ball grid array (DSBGA). The TPS65200 device integrates a high-efficiency, USB-friendly switched-mode charger with OTG support for single-cell Li-ion and Li-polymer batteries, D+D– detection, a 50-mA fixed-voltage LDO, a high-efficiency WLED boost converter, and high-accuracy current-shunt monitor into a single chip. The TPS65200 comes in a tiny, 2.8-mm × 2.6-mm, 36-pin, 0.4-mm pitch die size ball grid array (DSBGA).
