GC120A24 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

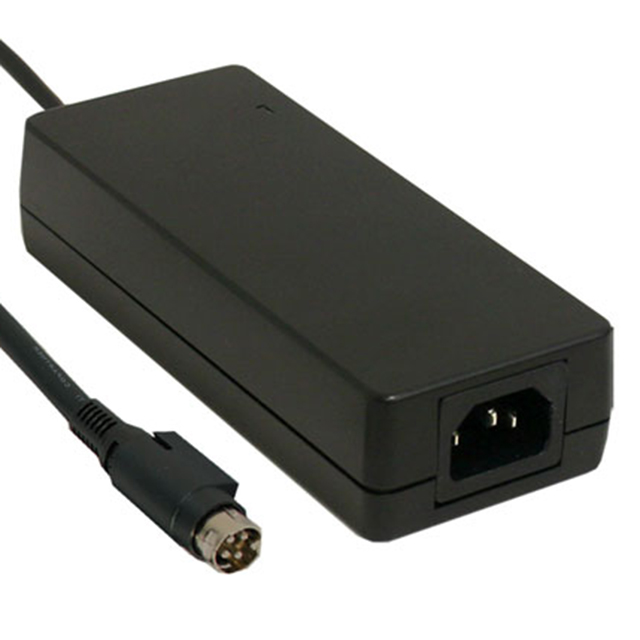

BATT CHARGER DESKTOP 27.2V 4.42A
| Part | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Weight | Features | Battery Chemistry [custom] | Mounting Type | Voltage - Input [Max] | Voltage - Input [Min] | Battery Cell Size | Number of Cells | Termination Style | Power - Max [Max] | Charge Current - Max [Max] | Voltage - Nominal | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | CB CE cULus GS PSE UL | -30 ░C | 70 °C | 620 g | LED Indicator | Lead Acid Lithium-Ion | Desktop | 264 VAC | 85 VAC | 24 V | 1 | Rectangular Connector | 120.2 W | 4.42 A | 27.2 V | 1.38 in | 6.57 in | 67 mm | 2.64 " | 35 mm | 167 mm | Desktop |
MEAN WELL USA Inc. | CB CE cULus GS PSE | -30 ░C | 70 °C | 620 g | LED Indicator | Lead Acid Lithium-Ion | Desktop | 264 VAC | 85 VAC | 24 V | 1 | 4 Pin DIN | 120.2 W | 4.42 A | 27.2 V | 1.38 in | 6.57 in | 67 mm | 2.64 " | 35 mm | 167 mm | Desktop |
