HRPG-ASCA Series

Catalog

ROTARY ENCODER OPTICAL 120PPR

Part	Orientation	Rotational Life (Cycles Min) [Min]	Encoder Type	Actuator Type [diameter]	Actuator Type	Pulses per Revolution	Termination Style	Mounting Type	Output Type
Broadcom Limited HRPG-ASCA#53F	Vertical	1M	Optical	6 mm	Flatted End	120	PC Pin	Panel PCB Through Hole	Quadrature (Incremental)
Broadcom Limited HRPG-ASCA#53C	Vertical	1M	Optical	6 mm	Flatted End	120	Cable with Connector	Panel Mount	Quadrature (Incremental)
Broadcom Limited HRPG-ASCA#14F	Vertical	1M	Optical	0.25 in	Round End	120	PC Pin	Panel PCB Through Hole	Quadrature (Incremental)

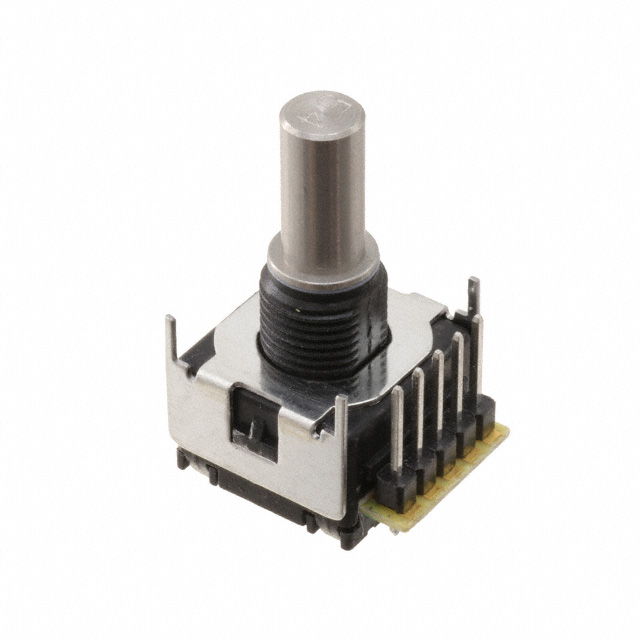

Broadcom Limited HRPG-ASCA#54F	Vertical	1M	Optical	6 mm	Round End	120	PC Pin	Panel PCB Through Hole	Quadrature (Incremental)
Broadcom Limited HRPG-ASCA#56F	Vertical	1M	Optical	6 mm	Flatted End	120	PC Pin	Panel PCB Through Hole	Quadrature (Incremental)
Broadcom Limited HRPG-ASCA#54C	Vertical	1M	Optical	6 mm	Round End	120	Cable with Connector	Panel Mount	Quadrature (Incremental)
Broadcom Limited HRPG-ASCA#17R	Vertical	1M	Optical	0.25 in	Round End	120	PC Pin		Quadrature (Incremental)
Broadcom Limited HRPG-ASCA#11F	Vertical	1M	Optical	0.25 in	Round End	120	PC Pin	Panel PCB Through Hole	Quadrature (Incremental)
Broadcom Limited HRPG-ASCA#57F	Vertical	1M	Optical	6 mm	Round End	120	PC Pin	Panel PCB Through Hole	Quadrature (Incremental)
Broadcom Limited HRPG-ASCA#13C	Vertical	1M	Optical	0.25 in	Flatted End	120	Cable with Connector	Panel Mount	Quadrature (Incremental)
