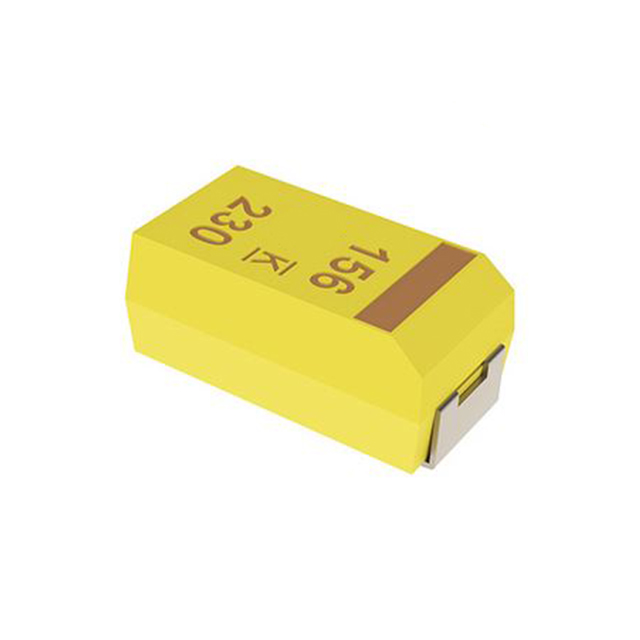

T495T Series

Manufacturer: KEMET

Catalog

CAP TANT 15UF 10% 10V 1411

Part	Lifetime @ Temp.	Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	ESR (Equivalent Series Resistance)	Voltage - Rated	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Manufacturer Size Code
KEMET T495T156K010ATE1K2	2000 Hrs	Molded	General Purpose	-55 C	125 °C	3528 Metric	1411	3.5 mm	0.11 "	2.8 mm	0.138 in	Surface Mount	1200 mOhm	10 V	15 µF	1.2 mm	0.047 "	10 %	T
KEMET T495T106M016AHE4K0	2000 Hrs	Molded	General Purpose	-55 C	125 °C	3528 Metric	1411	3.5 mm	0.11 "	2.8 mm	0.138 in	Surface Mount	4 Ohm	16 V	10 µF	1.2 mm	0.047 "	20 %	T
KEMET T495T156K006ATE1K0	2000 Hrs	Molded	General Purpose	-55 C	125 °C	3528 Metric	1411	3.5 mm	0.11 "	2.8 mm	0.138 in	Surface Mount	1 Ohms	6.3 VDC	15 µF	1.2 mm	0.047 "	10 %	T
