BUDGET Series

Catalog

BUDG R 22-16COMM 22-18MIL 5/16 ROHS COMPLIANT: YES

Part	Features	Termination	Thickness	Thickness	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Min]	Wire Gauge [Max]	Insulation	Terminal Type	Stud/Tab Size	Contact Material	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Finish	Mounting Type	Terminal Style	Tab Thickness	Tab Thickness	Length - Termination [custom]	Length - Termination [custom]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]

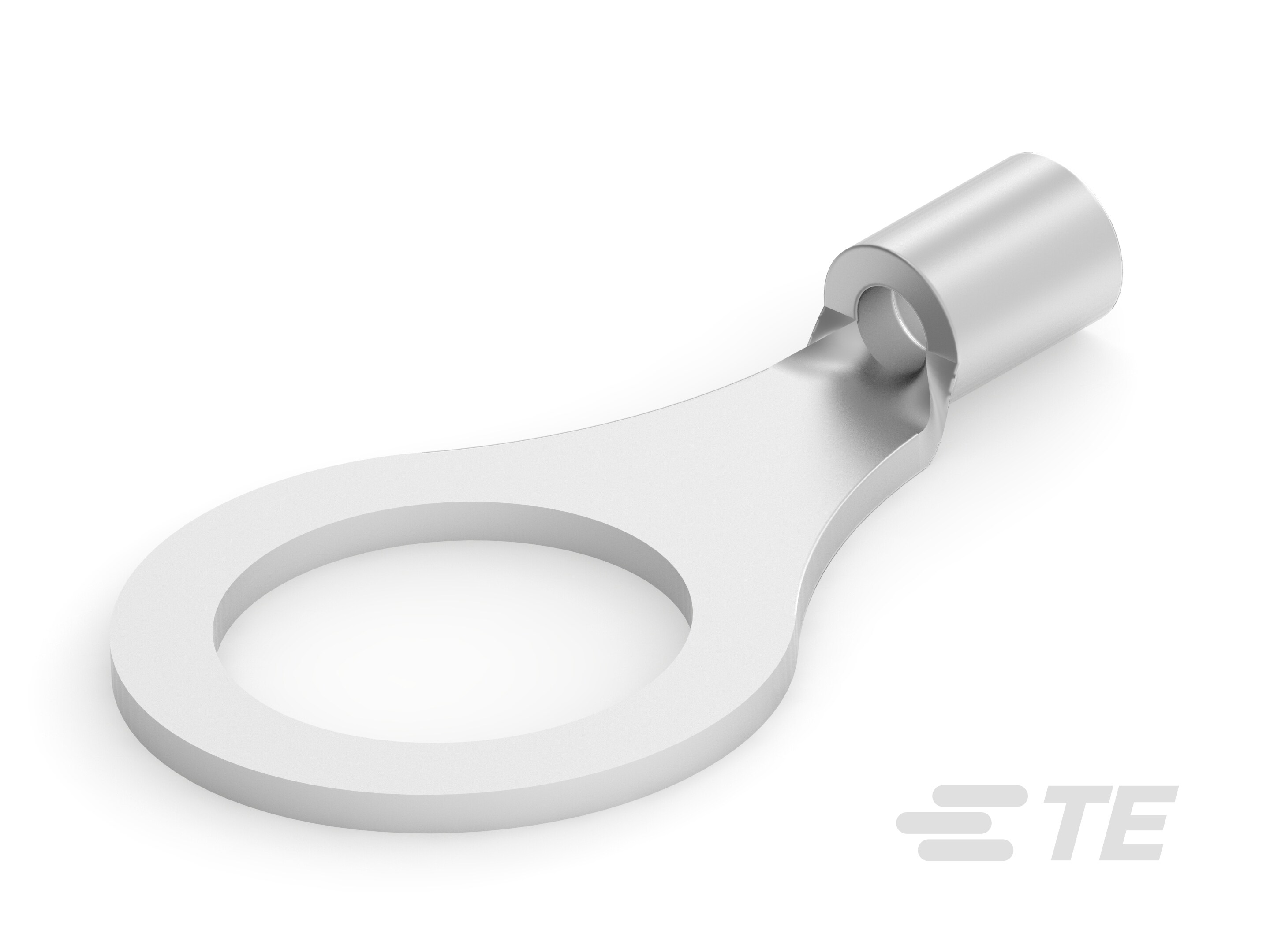

TE Connectivity AMP Connectors 3-31173-3	Serrated Termination	Crimp	0.79 mm	0.031 in	0.856 in	21.74 mm	16 AWG	22 AWG	Non-Insulated	Circular	0.3125 Stud	Copper	11.91 mm	0.469 "	Tin	Free Hanging (In-Line)
TE Connectivity AMP Connectors 320290	Serrated Termination	Crimp			0.67 in	17.02 mm	16 AWG	22 AWG	Non-Insulated	Ring	10 Stud		10.57 mm	0.416 in		Free Hanging (In-Line)	Slotted	0.79 mm	0.031 in

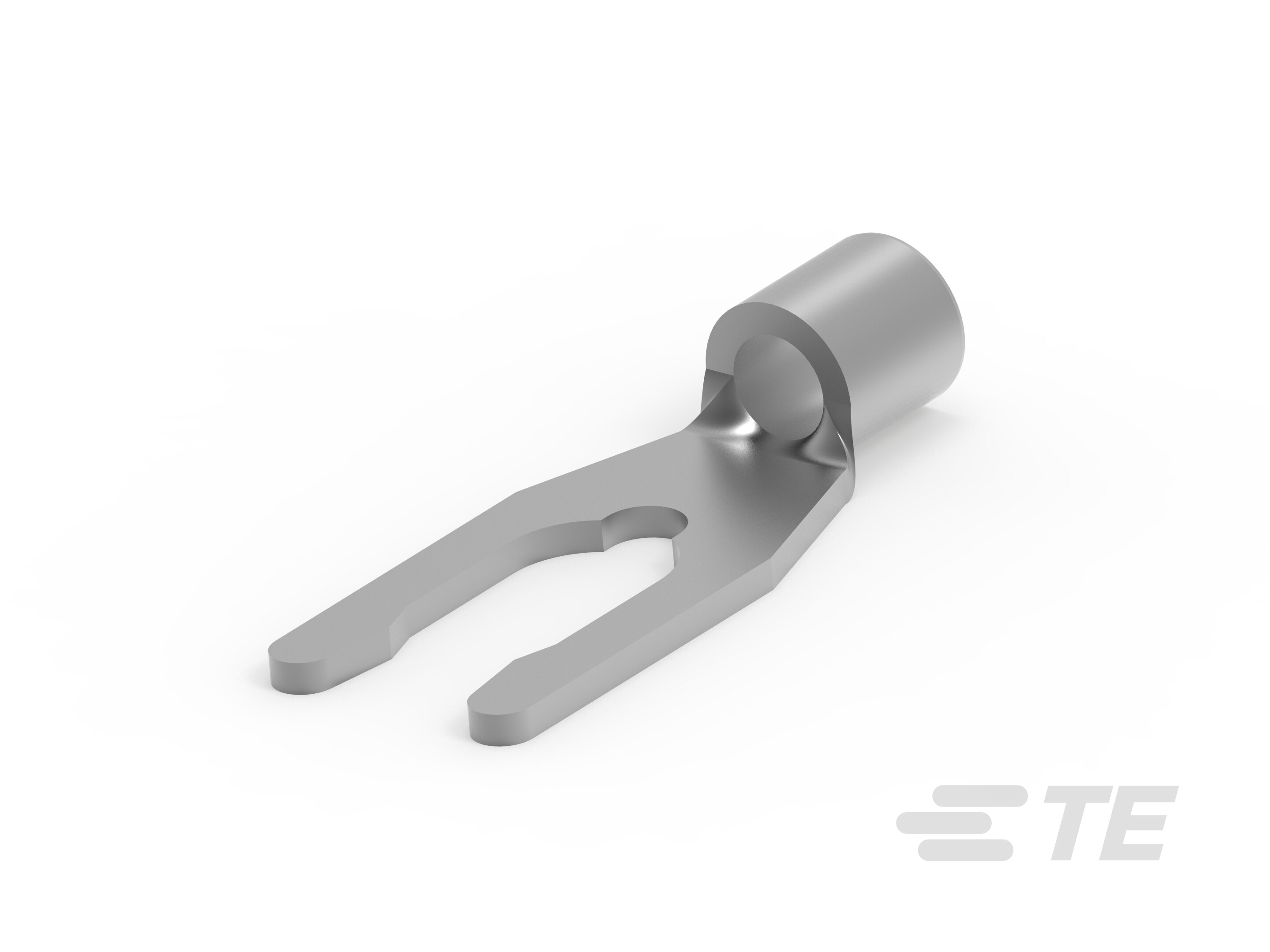

TE Connectivity AMP Connectors 52704-1	Serrated Termination	Crimp			0.756 in	19.2 mm	14 AWG	16 AWG	Non-Insulated	Snap Spring	8 Stud	Phosphor Bronze	7.14 mm	0.281 in	Tin	Free Hanging (In-Line)				0.191 in	4.85 mm	0.27 in	6.86 mm
