84952 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

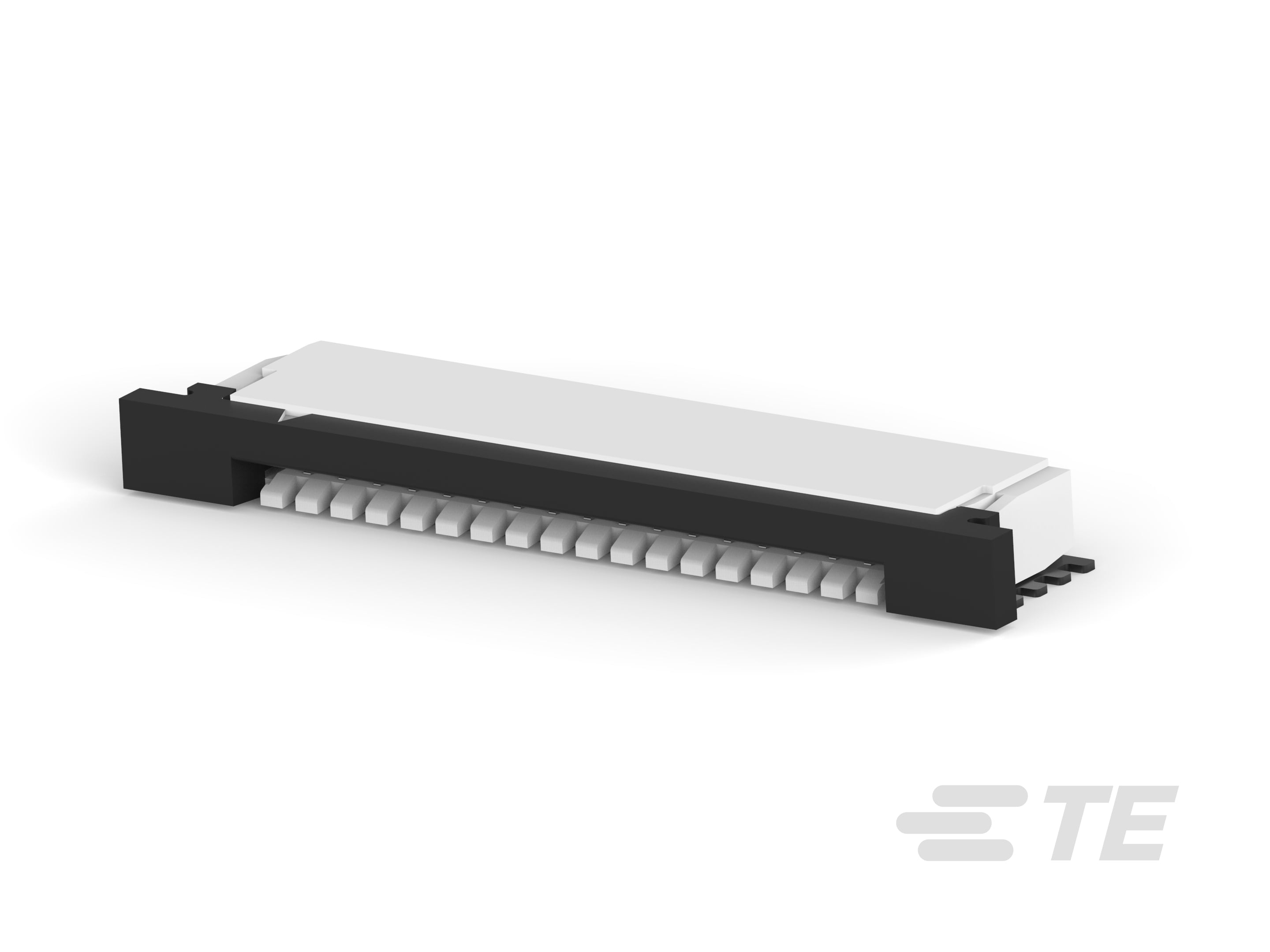

FFC / FPC BOARD CONNECTOR, 1 MM, 17 CONTACTS, RECEPTACLE, FPC SERIES, SURFACE MOUNT, BOTTOM
| Part | Contact Finish Thickness | Contact Finish Thickness | Housing Color | Actuator Color | Material Flammability Rating | Features | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Material | Flat Flex Type | Locking Feature | Connector/Contact Type | Contact Material | Contact Finish | Mounting Type | Cable End Type | FFC, FCB Thickness | Pitch | Pitch | Housing Material | Termination | Height Above Board [z] | Height Above Board [z] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 78.7 µin | 2 µm | Natural | Black | UL94 V-0 | Solder Retention Zero Insertion Force (ZIF) | 200 V | 85 °C | -40 C | Glass Filled Nylon Polyamide (PA) | FPC | Slide Lock | Contacts Bottom | Phosphor Bronze | Tin | Right Angle Surface Mount | Straight | 0.3 mm | 1 mm | 0.039 in | Glass Filled Liquid Crystal Polymer (LCP) | Solder | 2.56 mm | 0.101 " | |

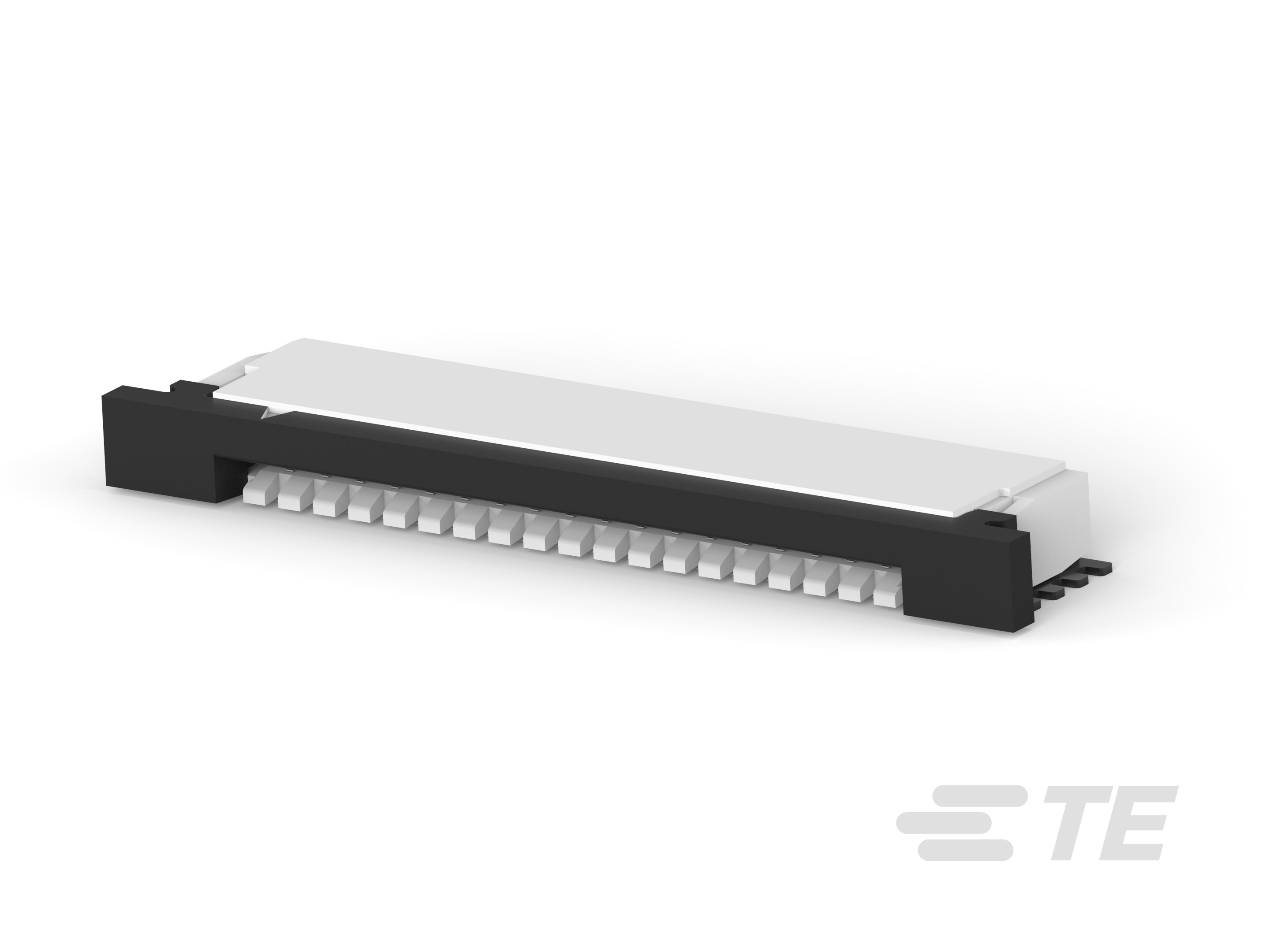

 TE Connectivity AMP Connectors | 78.7 µin | 2 µm | Natural | Black | UL94 V-0 | Solder Retention Zero Insertion Force (ZIF) | 200 V | 85 °C | -40 C | Glass Filled Nylon Polyamide (PA) | FPC | Slide Lock | Contacts Bottom | Phosphor Bronze | Tin | Right Angle Surface Mount | Straight | 0.3 mm | 1 mm | 0.039 in | Glass Filled Liquid Crystal Polymer (LCP) | Solder | 2.56 mm | 0.101 " | 18 |
 TE Connectivity AMP Connectors | 78.7 µin | 2 µm | Natural | Black | UL94 V-0 | Solder Retention Zero Insertion Force (ZIF) | 200 V | 85 °C | -40 C | Glass Filled Nylon Polyamide (PA) | FPC | Slide Lock | Contacts Bottom | Phosphor Bronze | Tin | Right Angle Surface Mount | Straight | 0.3 mm | 1 mm | 0.039 in | Glass Filled Liquid Crystal Polymer (LCP) | Solder | 2.56 mm | 0.101 " | 29 |
 TE Connectivity AMP Connectors | 78.7 µin | 2 µm | Natural | Black | UL94 V-0 | Solder Retention Zero Insertion Force (ZIF) | 200 V | 85 °C | -40 C | Glass Filled Nylon Polyamide (PA) | FPC | Slide Lock | Contacts Bottom | Phosphor Bronze | Tin | Right Angle Surface Mount | Straight | 0.3 mm | 1 mm | 0.039 in | Glass Filled Liquid Crystal Polymer (LCP) | Solder | 2.56 mm | 0.101 " | 5 |
 TE Connectivity AMP Connectors | 78.7 µin | 2 µm | Natural | Black | UL94 V-0 | Solder Retention Zero Insertion Force (ZIF) | 200 V | 85 °C | -40 C | Glass Filled Nylon Polyamide (PA) | FPC | Slide Lock | Contacts Bottom | Phosphor Bronze | Tin | Right Angle Surface Mount | Straight | 0.3 mm | 1 mm | 0.039 in | Glass Filled Liquid Crystal Polymer (LCP) | Solder | 2.56 mm | 0.101 " | 6 |
 TE Connectivity AMP Connectors | 78.7 µin | 2 µm | Natural | Black | UL94 V-0 | Solder Retention Zero Insertion Force (ZIF) | 200 V | 85 °C | -40 C | Glass Filled Nylon Polyamide (PA) | FPC | Slide Lock | Contacts Bottom | Phosphor Bronze | Tin | Right Angle Surface Mount | Straight | 0.3 mm | 1 mm | 0.039 in | Glass Filled Liquid Crystal Polymer (LCP) | Solder | 2.56 mm | 0.101 " | 26 |
 TE Connectivity AMP Connectors | 78.7 µin | 2 µm | Natural | Black | UL94 V-0 | Solder Retention Zero Insertion Force (ZIF) | 200 V | 85 °C | -40 C | Glass Filled Nylon Polyamide (PA) | FPC | Slide Lock | Contacts Bottom | Phosphor Bronze | Tin | Right Angle Surface Mount | Straight | 0.3 mm | 1 mm | 0.039 in | Glass Filled Liquid Crystal Polymer (LCP) | Solder | 2.56 mm | 0.101 " | 23 |

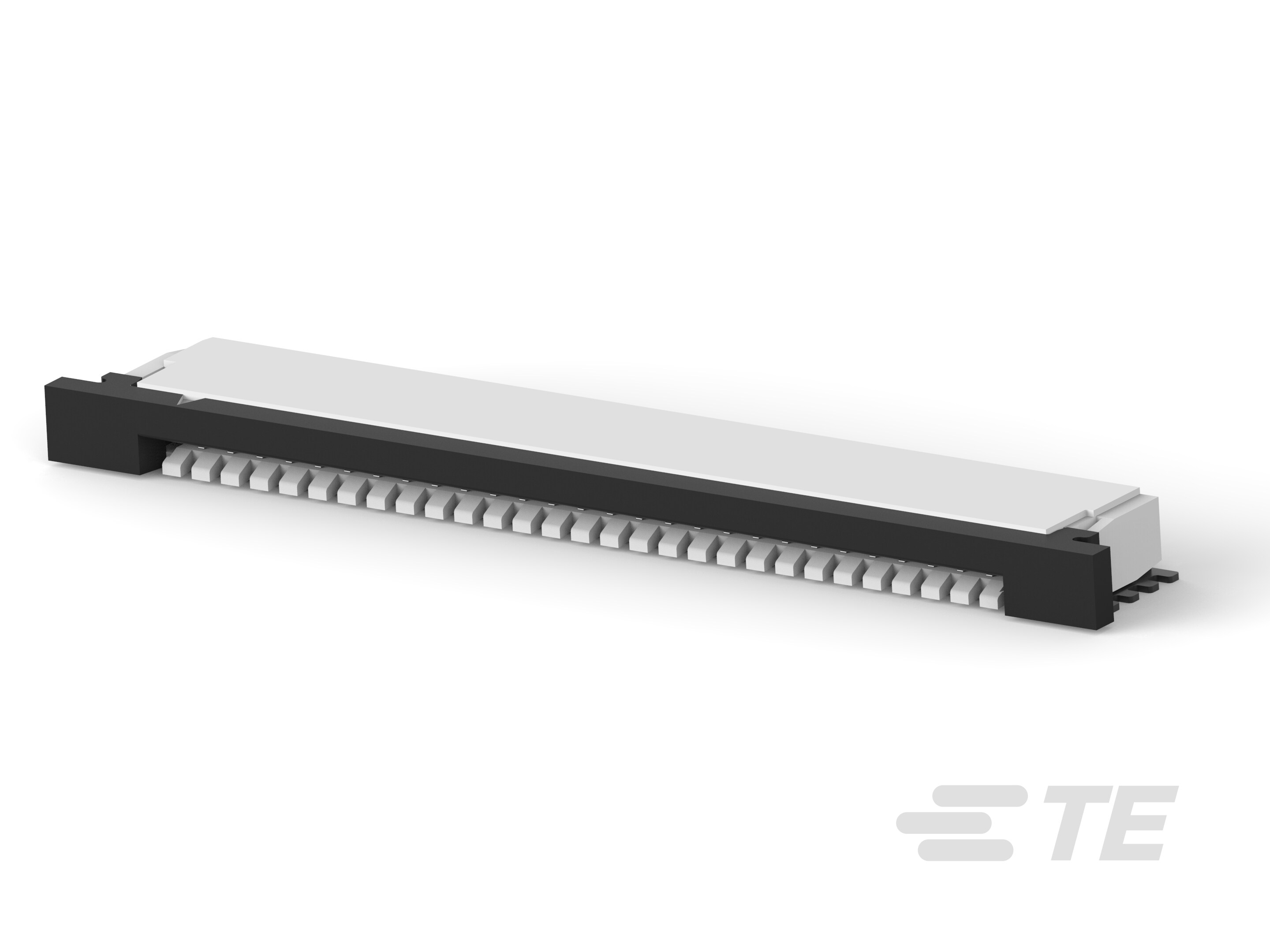

 TE Connectivity AMP Connectors | 78.7 µin | 2 µm | Natural | Black | UL94 V-0 | Solder Retention Zero Insertion Force (ZIF) | 200 V | 85 °C | -40 C | Glass Filled Nylon Polyamide (PA) | FPC | Slide Lock | Contacts Bottom | Phosphor Bronze | Tin | Right Angle Surface Mount | Straight | 0.3 mm | 1 mm | 0.039 in | Glass Filled Liquid Crystal Polymer (LCP) | Solder | 2.56 mm | 0.101 " | 28 |
