087760 Series

Manufacturer: Molex

Catalog

CONN WIRE TO BOARD HDR 16 POS 2MM SOLDER RA SIDE ENTRY THRU-HOLE MILLI-GRID TRAY

Part	Number of Positions Loaded	Style	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Current Rating (Amps)	Material Flammability Rating	Termination	Contact Finish - Post	Contact Material	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Length - Mating	Contact Length - Mating	Number of Positions	Voltage Rating	Number of Rows	Contact Shape	Number of Positions	Applications	Insulation Height	Insulation Height	Shrouding	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]
Molex 0877601618	All	Board to Cable/Wire	Push-Pull	1.27 µm	50 µin	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Black	0.079 in	2 mm	2.54 çm	100 çin	Header	2 A	UL94 V-0	Solder	Tin	Phosphor Bronze	Male Pin	105 ░C	-55 °C	0.079 in	2 mm	0.102 in	2.6 mm	Through Hole Right Angle	4 mm	0.157 in	16	125 VDC	2	Square

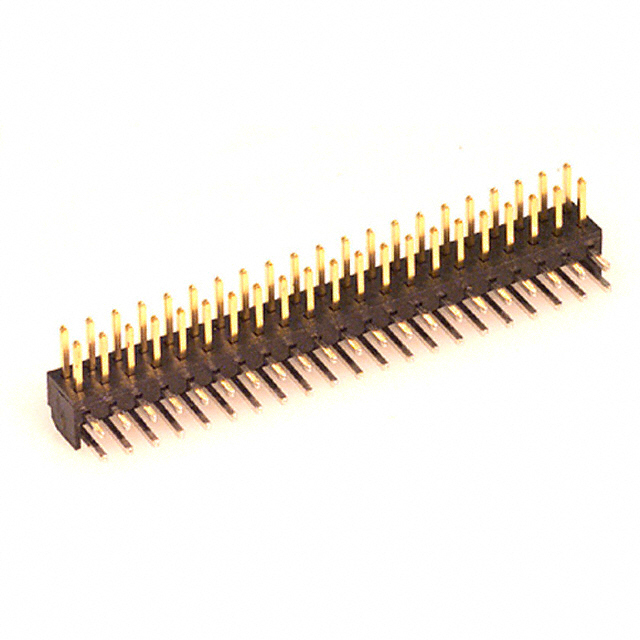

Molex 0877604216	All	Board to Board Cable	Push-Pull	2 çm	78.7 çin	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Black	0.079 in	2 mm	0.38 µm	15 µin	Header		UL94 V-0	Solder	Tin	Phosphor Bronze	Male Pin			0.079 in	2 mm	0.102 in	2.6 mm	Through Hole Right Angle	4 mm	0.157 in			2	Square	42	Automotive General Purpose Telecommunications	4.3 mm	0.169 "	Unshrouded	Gold
Molex 0877604617	All	Board to Board Cable	Push-Pull	2 çm	78.7 çin	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Black	0.079 in	2 mm	0.76 Ám	30 Áin	Header		UL94 V-0	Solder	Tin	Phosphor Bronze	Male Pin			0.079 in	2 mm	0.102 in	2.6 mm	Through Hole Right Angle	4 mm	0.157 in			2	Square	46	Automotive General Purpose Telecommunications	4.3 mm	0.169 "	Unshrouded	Gold
Molex 0877608012	All	Board to Board Cable	Push-Pull			Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Black	0.079 in	2 mm			Header		UL94 V-0	Solder	Tin	Phosphor Bronze	Male Pin			0.079 in	2 mm		1.85 mm	Through Hole Right Angle	4 mm	0.157 in			2	Square	10	Automotive General Purpose Telecommunications	4.3 mm	0.169 "	Unshrouded	Gold	Flash	0.073 "
Molex 0877601818	All	Board to Board Cable	Push-Pull	2.54 µm	100 µin	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Black	0.079 in	2 mm	2.54 çm	100 çin	Header		UL94 V-0	Solder	Tin	Phosphor Bronze	Male Pin			0.079 in	2 mm	0.102 in	2.6 mm	Through Hole Right Angle	4 mm	0.157 in			2	Square	18	Automotive General Purpose Telecommunications	4.3 mm	0.169 "	Unshrouded
Molex 0877600616	All	Board to Board Cable	Push-Pull	2 çm	78.7 çin	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Black	0.079 in	2 mm	0.38 µm	15 µin	Header		UL94 V-0	Solder	Tin	Phosphor Bronze	Male Pin			0.079 in	2 mm	0.102 in	2.6 mm	Through Hole Right Angle	4 mm	0.157 in			2	Square	6	Automotive General Purpose Telecommunications	4.3 mm	0.169 "	Unshrouded	Gold
Molex 0877603617	All	Board to Board Cable	Push-Pull	2 çm	78.7 çin	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Black	0.079 in	2 mm	0.76 Ám	30 Áin	Header		UL94 V-0	Solder	Tin	Phosphor Bronze	Male Pin			0.079 in	2 mm	0.102 in	2.6 mm	Through Hole Right Angle	4 mm	0.157 in			2	Square	36	Automotive General Purpose Telecommunications	4.3 mm	0.169 "	Unshrouded	Gold
Molex 0877600617	All	Board to Board Cable	Push-Pull	2 çm	78.7 çin	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Black	0.079 in	2 mm	0.76 Ám	30 Áin	Header		UL94 V-0	Solder	Tin	Phosphor Bronze	Male Pin			0.079 in	2 mm	0.102 in	2.6 mm	Through Hole Right Angle	4 mm	0.157 in			2	Square	6	Automotive General Purpose Telecommunications	4.3 mm	0.169 "	Unshrouded	Gold
Molex 0877602278	All	Board to Board Cable	Push-Pull			Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Black	0.079 in	2 mm	0.38 µm	15 µin	Header		UL94 V-0	Solder	Tin	Phosphor Bronze	Male Pin			0.079 in	2 mm	0.085 in	2.16 mm	Through Hole Right Angle	4 mm	0.157 in			2	Square	22 positions	Automotive General Purpose Telecommunications	4.3 mm	0.169 "	Unshrouded	Gold

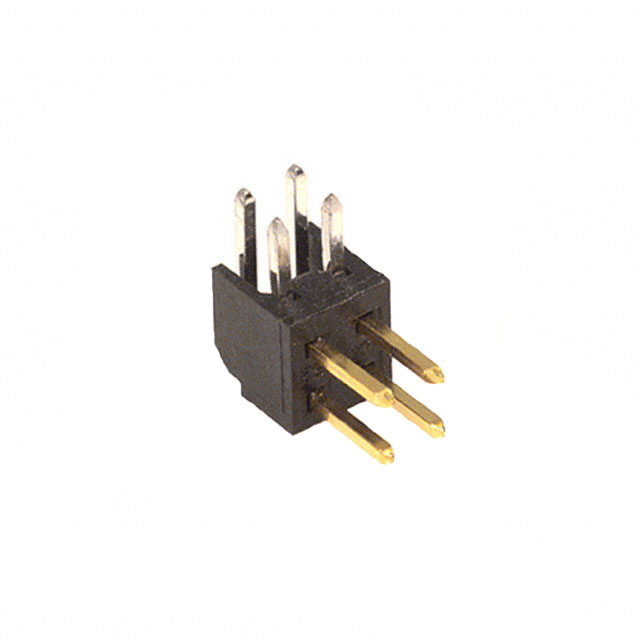

Molex 0877600416	All	Board to Board Cable	Push-Pull	2 çm	78.7 çin	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Black	0.079 in	2 mm	0.38 µm	15 µin	Header		UL94 V-0	Solder	Tin	Phosphor Bronze	Male Pin			0.079 in	2 mm	0.102 in	2.6 mm	Through Hole Right Angle	4 mm	0.157 in			2	Square	4	Automotive General Purpose Telecommunications	4.3 mm	0.169 "	Unshrouded	Gold
