OPA2863 Series

Dual, low-power, 110-MHz, 12-V, rail-to-rail input and output (RRIO) voltage-feedback amplifier

Catalog

Dual, low-power, 110-MHz, 12-V, rail-to-rail input and output (RRIO) voltage-feedback amplifier

Part	Slew Rate	Current - Supply (Main IC)	Utilized IC / Part	Board Type	Output Type	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Supplied Contents	Current - Output / Channel	Amplifier Type	Channels per IC	Current - Input Bias	Current - Supply	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply Span (Min) [Min]	Supplier Device Package	Voltage - Supply Span (Max) [Max]	Voltage - Input Offset	-3db Bandwidth	Number of Circuits	Gain Bandwidth Product	Package / Case	Package / Case [y]	Package / Case [x]	Package / Case [custom]	Package / Case

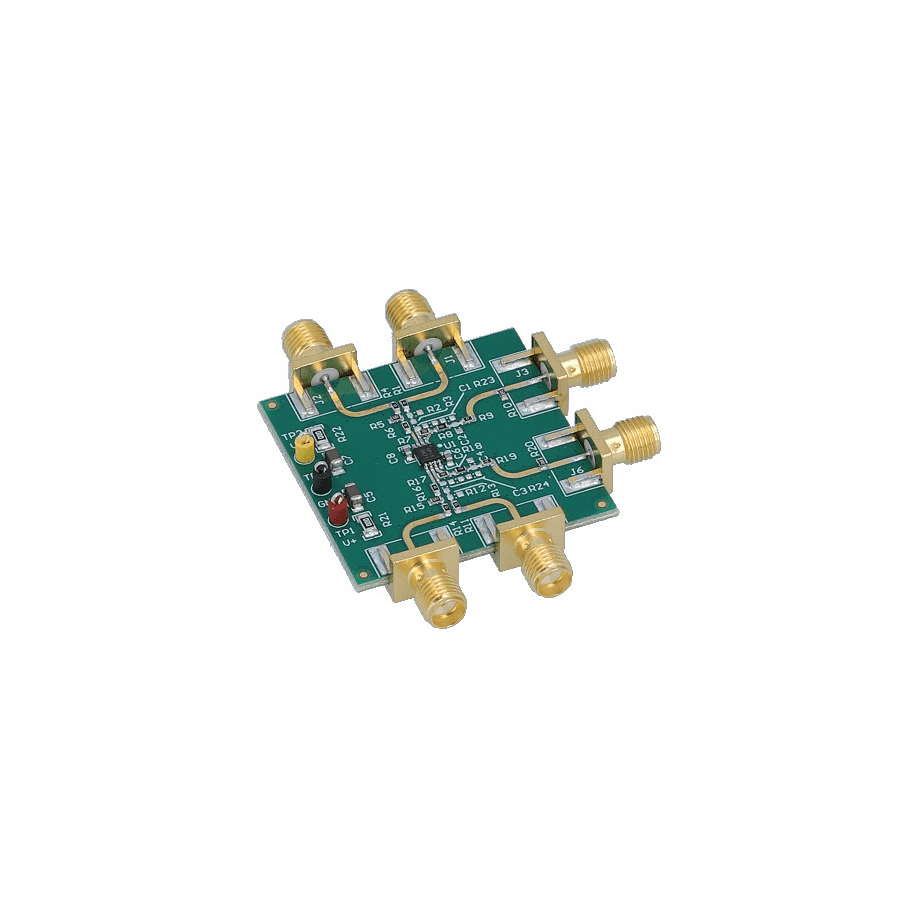

Texas Instruments OPA2863DGKEVM	100 V/µs	720 mA	OPA2863	Fully Populated	Rail-to-Rail	12.6 V	2.7 V	Board(s)	30 mA	Voltage Feedback	2 - Dual
Texas Instruments OPA2863DR	105 V/µs				Rail-to-Rail				45 mA	Voltage Feedback		300 nA	700 µA	Surface Mount	-40 °C	125 °C	2.7 V	8-SOIC	12.6 V	400 µV	110 MHz	2	50 MHz	8-SOIC	3.9 mm	0.154 in
Texas Instruments OPA2863IDGKR	105 V/µs				Rail-to-Rail				45 mA	Voltage Feedback		300 nA	700 µA	Surface Mount	-40 °C	125 °C	2.7 V		12.6 V	400 µV	110 MHz	2	50 MHz	8-MSOP 8-TSSOP			0.118 in	3 mm

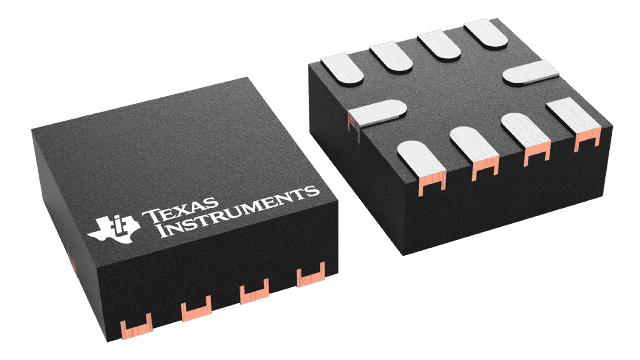

Texas Instruments OPA2863RUNR	105 V/µs				Push-Pull Rail-to-Rail				45 mA	Voltage Feedback		300 nA	700 µA	Surface Mount	-40 °C	125 °C	2.7 V	10-WQFN (2x2)	12.6 V	400 µV	110 MHz	2	50 MHz	10-WFQFN

Catalog

Dual, low-power, 110-MHz, 12-V, rail-to-rail input and output (RRIO) voltage-feedback amplifier

Key Features

• Wide-bandwidthUnity-gain bandwidth: 110-MHz (A V= 1 V/V)Gain-bandwidth product: 50-MHzLow powerQuiescent current: 700-µA/ch (typical)Power down mode: 1.5-µA (maximum, V S= 3 V)Supply voltage: 2.7-V to 12.6-VInput voltage noise: 5.9-nV/√HzSlew rate: 105-V/µsRail-to-rail input and outputHD 2/HD 3: –129 dBc/–138 dBc at 20 kHz (2-V PP)Operating temperature range: –40°C to +125°CAdditional features:Overload power limitOutput short-circuit protectionHigh-precision version:OPAx863AWide-bandwidthUnity-gain bandwidth: 110-MHz (A V= 1 V/V)Gain-bandwidth product: 50-MHzLow powerQuiescent current: 700-µA/ch (typical)Power down mode: 1.5-µA (maximum, V S= 3 V)Supply voltage: 2.7-V to 12.6-VInput voltage noise: 5.9-nV/√HzSlew rate: 105-V/µsRail-to-rail input and outputHD 2/HD 3: –129 dBc/–138 dBc at 20 kHz (2-V PP)Operating temperature range: –40°C to +125°CAdditional features:Overload power limitOutput short-circuit protectionHigh-precision version:OPAx863A

Description

The OPAx863 devices are low-power, unity-gain stable, rail-to-rail input and output, voltage-feedback operational amplifiers designed to operate over a power-supply range of 2.7 V to 12.6 V. Consuming only 700 µA per channel, the OPAx863 offers a gain-bandwidth product of 50 MHz, slew rate of 105 V/µs with a voltage noise density of 5.9 nV/√Hz. The rail-to-rail input stage with 2.7-V supply operation is useful in portable, battery-powered applications. The rail-to-rail input stage is well-matched for gain-bandwidth product and noise across the full input common‑mode voltage range, enabling excellent performance with wide-input dynamic range. The OPAx863 feature a power-down (PD) mode with a PD quiescent current (I Q) of 1.5-µA (maximum) and a turn-on or turn-off time within 6.5-µs using a 3-V supply. The OPAx863 includes overload power limiting to limit the increase in I Q with saturated outputs, thereby preventing excessive power dissipation in power-conscious, battery-operated systems. The output stage is short-circuit protected, making these devices conducive to ruggedized environments. The OPAx863 devices are low-power, unity-gain stable, rail-to-rail input and output, voltage-feedback operational amplifiers designed to operate over a power-supply range of 2.7 V to 12.6 V. Consuming only 700 µA per channel, the OPAx863 offers a gain-bandwidth product of 50 MHz, slew rate of 105 V/µs with a voltage noise density of 5.9 nV/√Hz. The rail-to-rail input stage with 2.7-V supply operation is useful in portable, battery-powered applications. The rail-to-rail input stage is well-matched for gain-bandwidth product and noise across the full input common‑mode voltage range, enabling excellent performance with wide-input dynamic range. The OPAx863 feature a power-down (PD) mode with a PD quiescent current (I Q) of 1.5-µA (maximum) and a turn-on or turn-off time within 6.5-µs using a 3-V supply. The OPAx863 includes overload power limiting to limit the increase in I Q with saturated outputs, thereby preventing excessive power dissipation in power-conscious, battery-operated systems. The output stage is short-circuit protected, making these devices conducive to ruggedized environments.
