DRV5011 Series

Small size (available in WCSP and X2SON), low voltage (up to 5.5-V) Hall effect latch

Catalog

Small size (available in WCSP and X2SON), low voltage (up to 5.5-V) Hall effect latch

Part	Features	Test Condition [Max]	Test Condition [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Output Type	Supplier Device Package	Polarization	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - Output (Max) [Max]	Sensing Range	Current - Supply (Max) [Max]	Function	Utilized IC / Part	Supplied Contents	Sensor Type	Voltage - Supply	Voltage - Supply	Interface

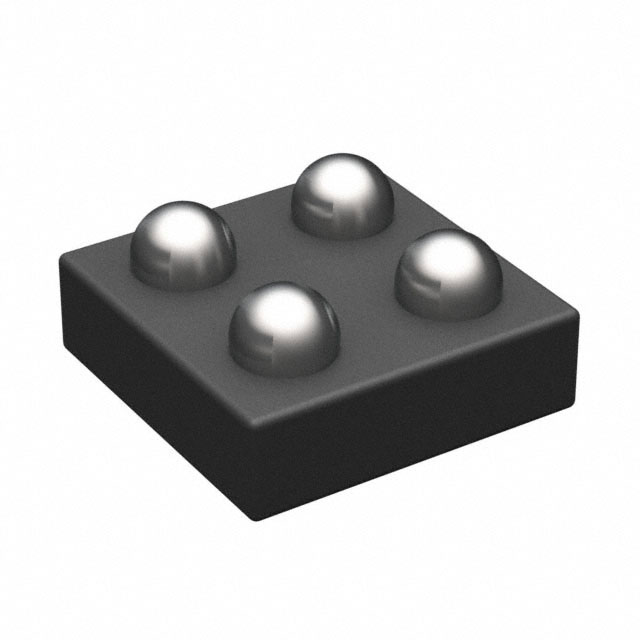

Texas Instruments DRV5011ADYBHT	Temperature Compensated	150 °C	-40 °C	2.5 V	5.5 V	Surface Mount	Push-Pull	4-DSBGA	North Pole South Pole	Hall Effect	-40 °C	125 °C	4-XFBGA DSBGA	30 mA	0.6 mT 3.8 mT	3 mA	Latch

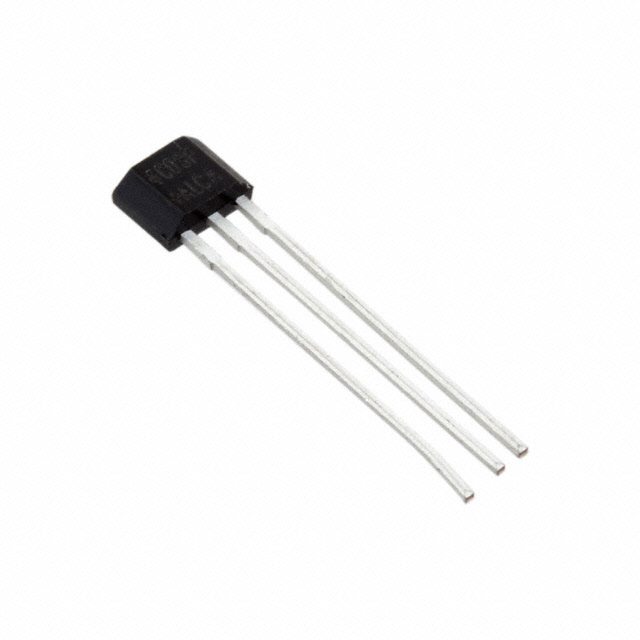

Texas Instruments DRV5011ADLPG	Temperature Compensated	135 °C	-40 °C	2.5 V	5.5 V	Through Hole	Push-Pull	TO-92-3	North Pole South Pole	Hall Effect	-40 °C	135 °C	TO-226-3 TO-92-3 Short Body	30 mA	0.6 mT 3.8 mT	3 mA	Latch

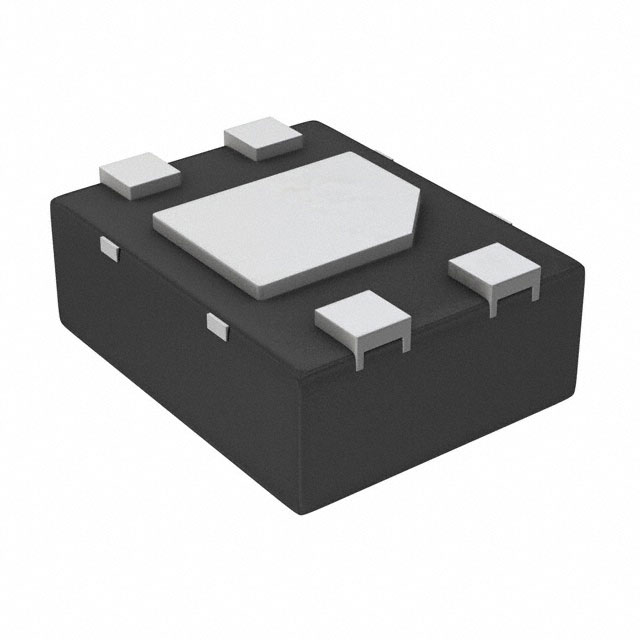

Texas Instruments DRV5011ADDMRT		150 °C	-40 °C	2.5 V	5.5 V	Surface Mount	Push-Pull	4-X2SON	North Pole South Pole	Hall Effect	-40 °C	135 °C	4-XFDFN Exposed Pad	30 mA	0.6 mT 3.8 mT	3 mA	Latch
Texas Instruments DRV5011ADDMRR		150 °C	-40 °C	2.5 V	5.5 V	Surface Mount	Push-Pull	4-X2SON	North Pole South Pole	Hall Effect	-40 °C	135 °C	4-XFDFN Exposed Pad	30 mA	0.6 mT 3.8 mT	3 mA	Latch

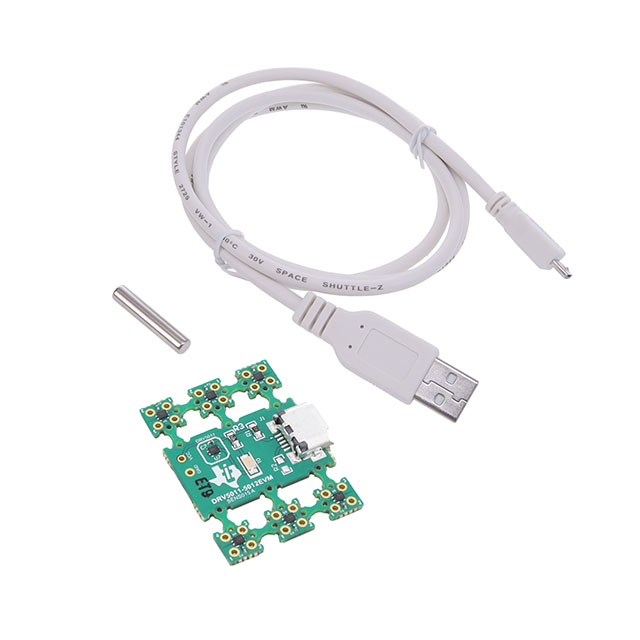

Texas Instruments DRV5011-5012EVM																		DRV5011 DRV5012	Board(s)	Hall Effect	5 V	USB	USB
Texas Instruments DRV5011ADDBZR		150 °C	-40 °C	2.5 V	5.5 V	Surface Mount	Push-Pull	SOT-23-3	North Pole South Pole	Hall Effect	-40 °C	135 °C	SC-59 SOT-23-3 TO-236-3	30 mA	0.6 mT 3.8 mT	3 mA	Latch

Catalog

Small size (available in WCSP and X2SON), low voltage (up to 5.5-V) Hall effect latch

Key Features

• Ultra-small X2SON, SOT-23, DSBGA or TO-92 packageHigh magnetic sensitivity: ±2 mT (typical)Robust hysteresis: 4 mT (typical)Fast sensing bandwidth: 30-kHzVCCoperating range: 2.5-V to 5.5-VPush-pull CMOS outputCapable of 5-mA sourcing, 20-mA sinkingOperating temperature: –40°C to +135°CUltra-small X2SON, SOT-23, DSBGA or TO-92 packageHigh magnetic sensitivity: ±2 mT (typical)Robust hysteresis: 4 mT (typical)Fast sensing bandwidth: 30-kHzVCCoperating range: 2.5-V to 5.5-VPush-pull CMOS outputCapable of 5-mA sourcing, 20-mA sinkingOperating temperature: –40°C to +135°C

Description

The DRV5011 device is a digital-latch Hall effect sensor designed for motors and other rotary systems. The device has an efficient low-voltage architecture that operates from 2.5 V to 5.5 V. The device is offered in standard SOT-23, low-profile X2SON, DSBGA and TO-92 packages. The output is a push-pull driver that requires no pullup resistor, enabling more compact systems. When a south magnetic pole is near the top of the package and the BOPthreshold is exceeded, the device drives a low voltage. The output stays low until a north pole is applied and the BRPthreshold is crossed, which causes the output to drive a high voltage. Alternating north and south poles are required to toggle the output, and integrated hysteresis separates BOPand BRPto provide robust switching. The device produces consistent performance across a wide ambient temperature range of –40°C to +135°C. ™ The DRV5011 device is a digital-latch Hall effect sensor designed for motors and other rotary systems. The device has an efficient low-voltage architecture that operates from 2.5 V to 5.5 V. The device is offered in standard SOT-23, low-profile X2SON, DSBGA and TO-92 packages. The output is a push-pull driver that requires no pullup resistor, enabling more compact systems. When a south magnetic pole is near the top of the package and the BOPthreshold is exceeded, the device drives a low voltage. The output stays low until a north pole is applied and the BRPthreshold is crossed, which causes the output to drive a high voltage. Alternating north and south poles are required to toggle the output, and integrated hysteresis separates BOPand BRPto provide robust switching. The device produces consistent performance across a wide ambient temperature range of –40°C to +135°C. ™
