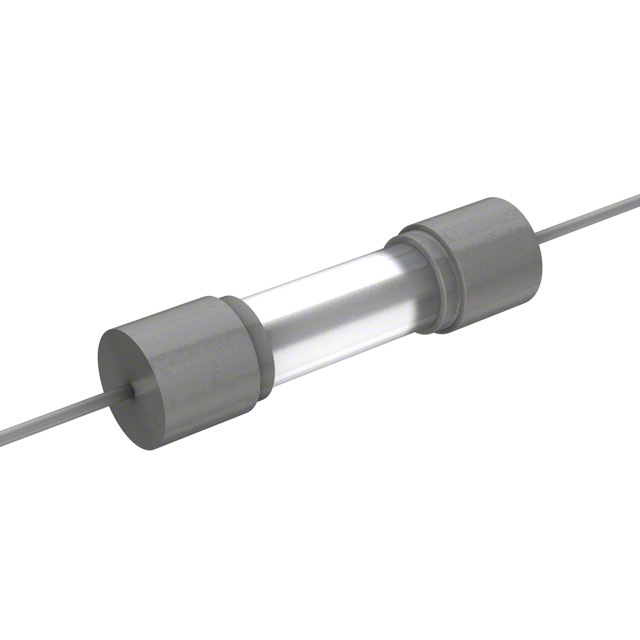

FUSE 125V UL FA 5X20 PT RoHS 6A
Description
AI
5x20mm meduim- acting glass body fuse designed to UL specification.
Beta
⌘K
FUSE 125V UL FA 5X20 PT RoHS 6A
FUSE 125V UL FA 5X20 PT RoHS 6A
| Part | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Response Time | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Package / Case [y] | Package / Case | Package / Case [x] | Current Rating (Amps) | Melting I²t | Approval Agency | Mounting Type | Fuse Type | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 22.5 mm | 5.8 mm | 0.228 " | 0.886 in | Fast Blow | -55 C | 125 °C | 125 V | 20 mm | Axial | 5 mm | 6 A | 47.325 I²t | CE CSA KC PSE UL | Through Hole | Cartridge Glass | |
 LITTELFUSE | 20 mm | 5.2 mm | 0.205 in | 0.787 " | Fast Blow | -55 C | 125 °C | 125 V | 20 mm | 5 mm | 6 A | 47.325 I²t | CE CSA KC PSE UL | Requires Holder | Cartridge Glass | 0.0148 Ohms | |
LITTELFUSE | 22.5 mm | 5.8 mm | 0.228 " | 0.886 in | Fast Blow | -55 C | 125 °C | 125 V | 20 mm | Axial | 5 mm | 6 A | 47.325 I²t | CE CSA KC PSE UL | Through Hole | Cartridge Glass | 0.0148 Ohms |
LITTELFUSE | 20 mm | 5.2 mm | 0.205 in | 0.787 " | Fast Blow | -55 C | 125 °C | 125 V | 20 mm | 5 mm | 6 A | 47.325 I²t | CE CSA KC PSE UL | Requires Holder | Cartridge Glass |
